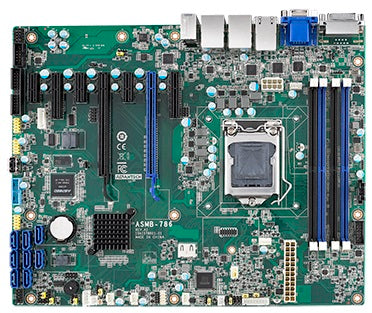

LGA 1151 ATX Server Board C246 GbEx2

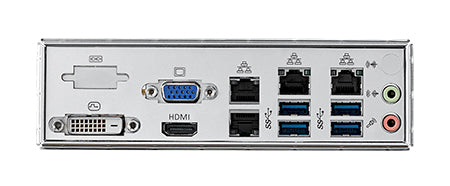

LGA 1151 Intel® Xeon® E & 8th/9th Generation Core™ i7/i5/i3 processors with C246 chipsetDDR4 2666/2400/2133 MHz ECC/Non-ECC UDIMM up to 128 GBOne Gen 3.?0 PCIe x16 link (or two PCIe x16 slots with x8 link), two PCIe x4, and three PCIe x1 slotsTriple displays - DVI-D, VGA and HDMI 2.?0 portsEight SATA3 ports and six USB 3.?1 portsRackmount optimized placement with positive air flow design0 ~ 60° C ambient operating temperature range

Certification - EMC: CE/FCC | Display - Controller: Intel HD graphics Integrated | Display - Display Interface: VGA: Up to 1920 x 1200 , DVI-D: Up to 1920 x 1200, HDMI: Up to 2K/4K | Display - Graphic Memory: Share system memory up to 1 GB with 2 GB and above memory installed | Display - Multiple Display: Triple | Environment - Non-Operating Vibration: 3.5 Grms | Environment - Non-Operational Temperature: -40 ~ 85° C @ 95% RH Non-Condensing | Environment - Operating-Temperature: 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) | Ethernet - Connector: 2 x RJ45 | Ethernet - Controller: 1 x Intel I219-LM + 1 x Intel I210-AT | Ethernet - Speed: 10/100/1000 Mbps | Expansion Interface - LPC: 1 | Expansion Interface - PCI: - | Expansion Interface - PCI Express x 1: 3 | Expansion Interface - PCI Express x 16: 1(or 2 PCIe x8) | Expansion Interface - PCI Express x 4: 2 | Expansion Interface - SMBus: 1 | Form Factor - Form Factor: ATX | I/O - COM Port: 2 x RS-232 | I/O - GPIO: 8-bit | I/O - LPT: 1 | I/O - PS/2 Keyboard/Mouse: 1 | I/O - SAS controller: - | I/O - SAS Port: - | I/O - SATA: 8 x SATAIII (RAID 0,1,5,10) | I/O - SPDIF: 1 | I/O - System Fan: 5 | I/O - USB2.0: 7 | I/O - USB3.0: 6 | Management Solution - Out of band remote management: Optional (IPMI-1000) / AMT | Management Solution - Software: SUSIAccess (Optional) | Memory - Capacity: Up to 128 GB (32 GB per DIMM) | Memory - ECC Support: Yes | Memory - REG Support: - | Memory - Technology: Dual Channel DDR4 ECC/Non-ECC 2133/2400/2666 MHz | Physical Characteristics - Dimensions (LxW): 304.8 x 244 mm (12" x 9.6") | Physical Characteristics - Weight: 0.8 kg (1.8 lb) | Power Requirement - Voltage: +12 V/+5 V/+3.3 V/+5 VSB/V12_8P/-12 V/ Total | Processor System - BIOS: AMI SPI 256 Mbit | Processor System - Chipset: Intel C246 | Processor System - Core Number: Up to 6 cores | Processor System - CPU: LGA 1151 Intel® Xeon® E and 8th/9th generation Core™ i7/i5/i3 processors | Processor System - CPU TDP: Up to 95W | Processor System - DMI: Gen3 x4 | Processor System - Frequency: Up to 3.7 GHz | Processor System - Integrated Graphics: Yes | Processor System - L3 Cache: Up to 13.5MB | Rear I/O Interface - COM: - | Rear I/O Interface - DVI: 1 | Rear I/O Interface - Ethernet: 2 | Rear I/O Interface - PS/2: - | Rear I/O Interface - USB3.1 Gen 2: 4 | Rear I/O Interface - VGA: 1 | Watchdog Timer - Interval: Programmable 1 ~ 255 sec/min | Watchdog Timer - Output: System Reset

• Model: ASMB-786G2-00A1
