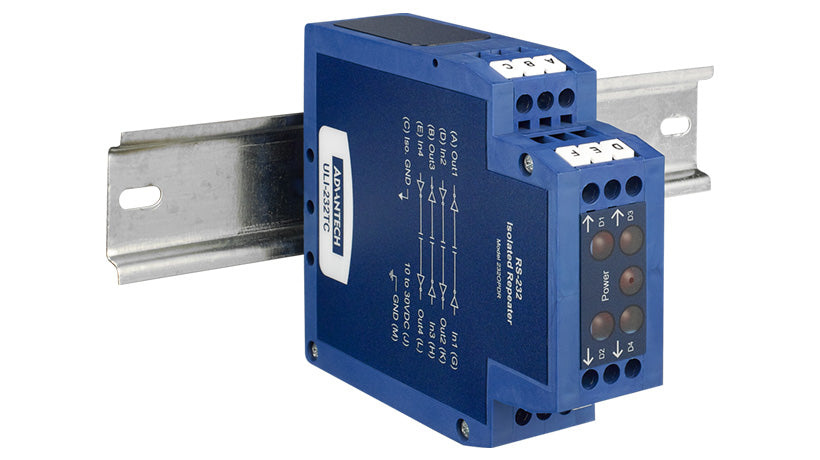

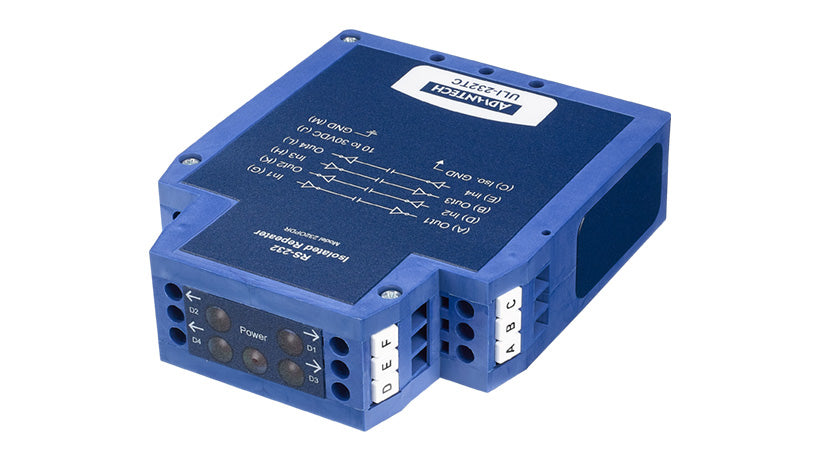

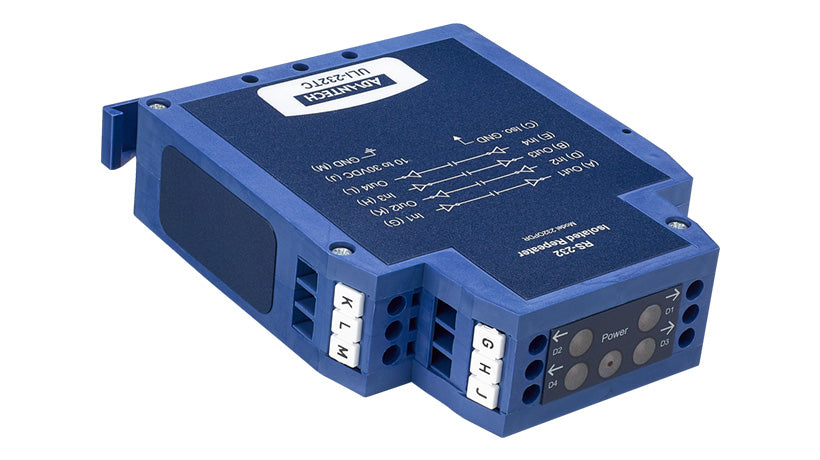

BB-232OPDR ULI-232TC - Serial Repeater, RS-232, TB, Isolated, Ind. DIN
ULI-232TC - Serial Repeater, RS-232, TB, Isolated, Ind. DIN
Extend and iso;ate RS-2322 kV isolationData rate: up to 115.2 Kbps-40 to +80 °C wide operating temperatureDIN rail mount, IP30, TB10-30 Vdc power supply required (not included, sold separately)UL Recognized
Accessory General - Mounting: Panel, DIN | Environment - Operating Temperature: -40 ~ 80°C (-40 ~ 176°F) | General - Isolation: 2kV | General - Mounting: DIN | General - Power: 10-30VDC | General - Serial Type: RS-232 | General - Technology: Serial | General - Temperature: -40 to 80C | Power - Power Input (DC): 10 ~ 30 VDC | Protection - ESD Protection: 8 kV (Air) | Protection - Isolation: 2,000 VDC | Serial Communication - Maximum Serial Transmission Speed: 115.2 Kbps | Serial Communication - Repeater Maximum Distance: 15 Meters | Serial Communication - Serial Port Connector Type: Terminal block | Serial Communication - Serial Port Number: 1 | Serial Communication - Serial Standard: RS-232
Datasheet- Model: BB-232OPDR
