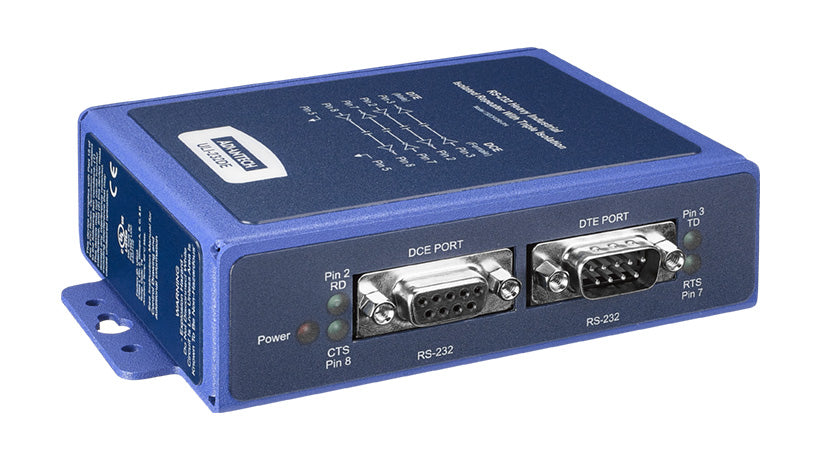

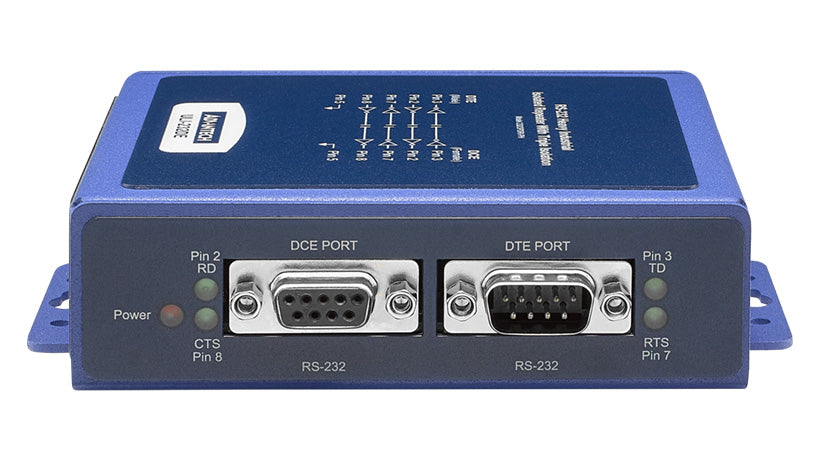

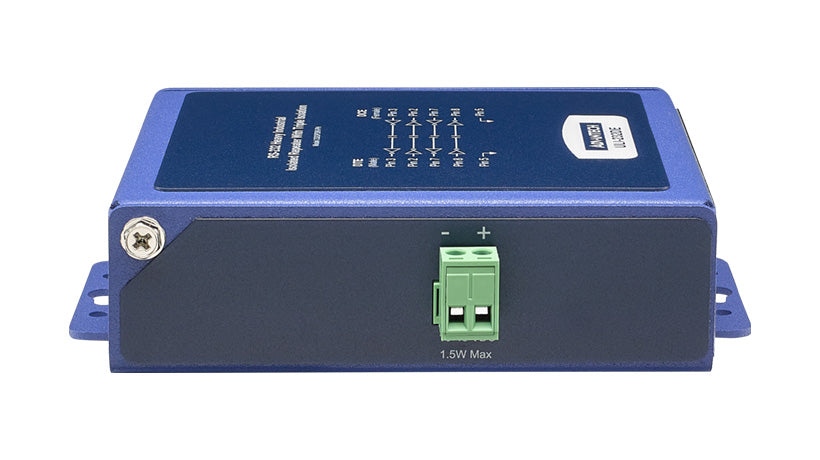

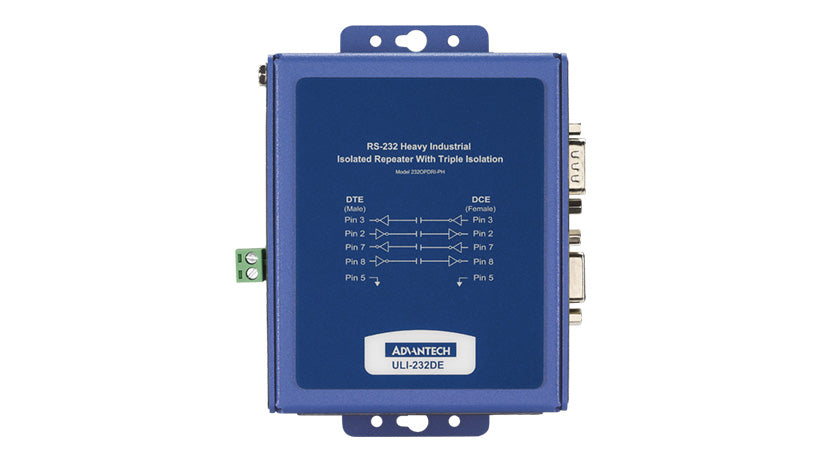

ULI-232DE - RS-232 (DB9 Male / Female) Isolated Repeater

Extends RS-232 data signals2kV, three-way isolation (input/output/power)Data rate: 1.?2 to 115.2 kbpsWide operating temperature: -40 to +85 °CRugged IP30 metal case (panel or DIN rail mount)10-48 Vdc input power (power supply required, sold separately)IEC-61850-3, IEEE-1613, NEMA TS2, FCC, CE, NEMA TS2, 50G Shock, 4G Vibration

Accessory General - Mounting: Panel, DIN | Certification - Safety: UL C1/D2 (Class I, Division 2) | Certification - Substation: IEC-61850-3 | Environment - Operating Temperature: -40 ~ 85°C (-40 ~ 185°F) | General - Isolation: 2kV | General - Mounting: Panel | General - Power: 10-48VDC | General - Power and Data Isolated: Yes | General - Serial Type: RS-232 | General - Technology: Serial | General - Temperature: -40 to 85C | Mechanism - Enclosure (Metal): Metal | Power - Power Input (DC): 10 ~ 48 VDC | Protection - ESD Protection: 15 kV | Protection - Isolation: 2,000 VDC | Serial Communication - Maximum Serial Transmission Speed: 115.2 Kbps | Serial Communication - Repeater Maximum Distance: 15 Meters | Serial Communication - Serial Port Connector Type: DB9 | Serial Communication - Serial Port Number: 1 | Serial Communication - Serial Standard: RS-232

• Model: BB-232OPDRI-PH
