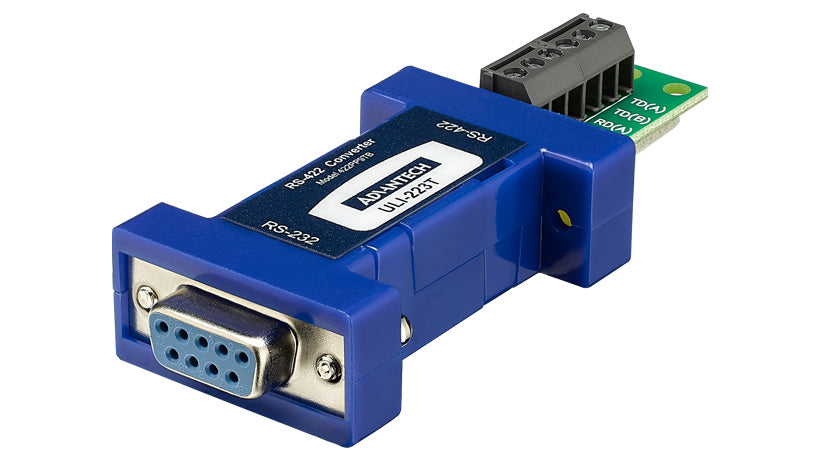

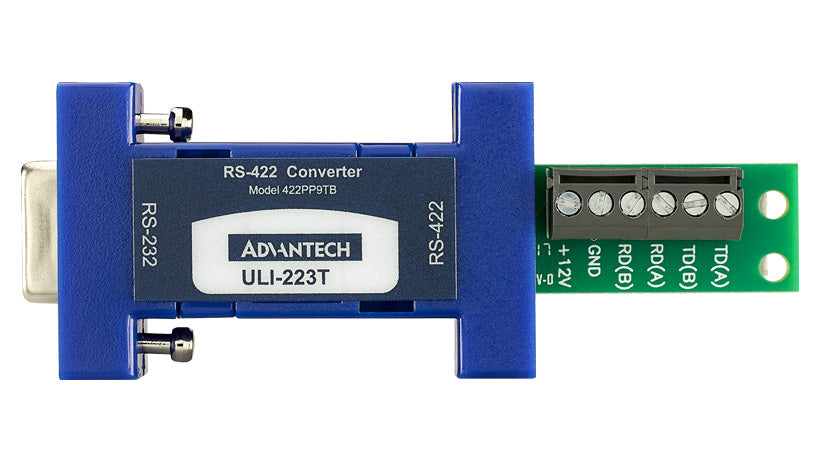

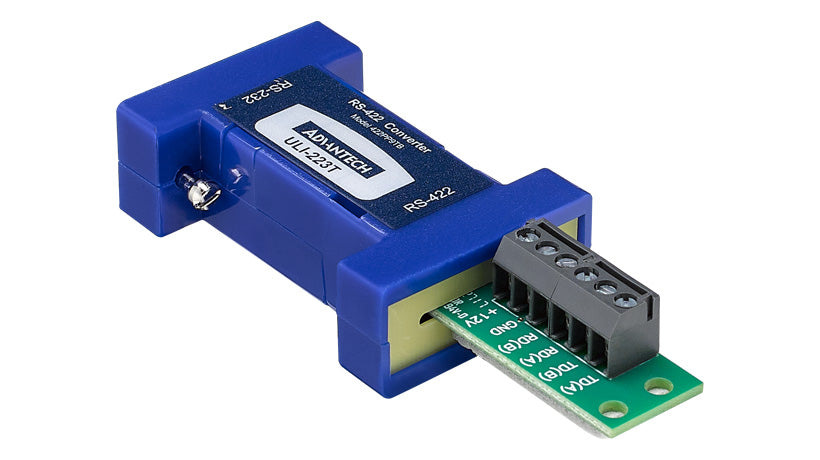

ULI-223T - RS-232 (DB9 Female) to RS-422 (Terminal Block) Converter, Port Powered

Converts RS-232 (DB9F) to RS-422 (DB9F), bidirectionalExtends RS-232 data signals up to 1200 m (4000 ft)Data rates up to 115.2 KbpsQuick, inline installationPowered from RS-232 handshake lines - no power supply required

Accessory General - Mounting: Inline | Environment - Operating Temperature: 0 ~ 70°C (32 ~ 158°F) | Environment - Temperature (Operating Range): 0 ~ 70°C (32 ~ 158°F) | General - RS-232 Connector: DB9 Female | General - RS-422/485 Connector: Terminal Block | General - Serial Type: RS-422 | General - Temperature: 0 to 70C | Power - Power Input (DC): 12 VDC | Power - Power Input (Serial): Port-Powered from RS-232 | Serial Communication - Maximum Serial Transmission Speed: 115.2 Kbps | Serial Communication - Serial Converter: RS-232 to RS-422 | Serial Communication - Serial Port Connector Type: 1 x DB9 Female, 1 x Terminal Block | Serial Communication - Serial Port Number: 1

• Model: BB-422PP9TB
