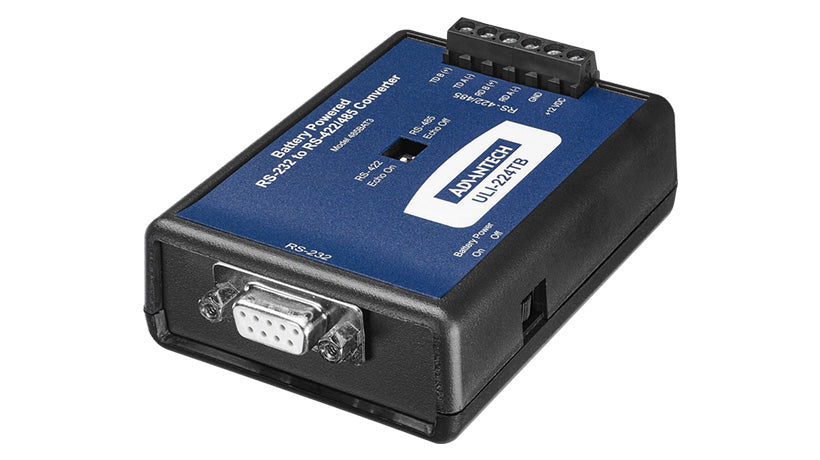

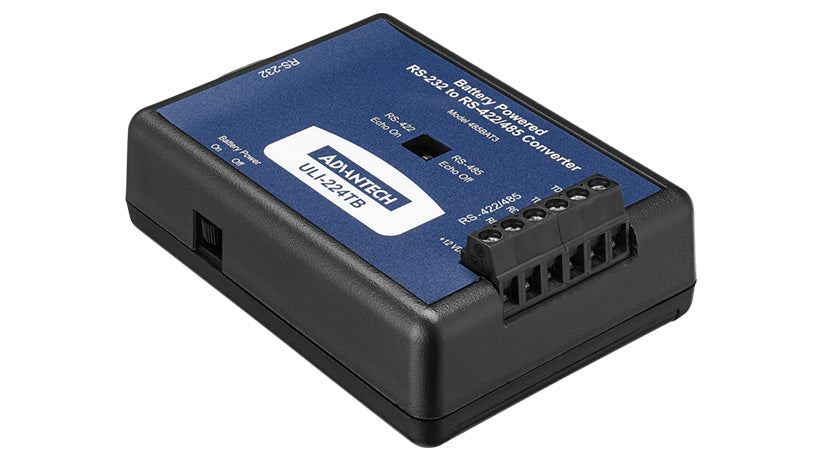

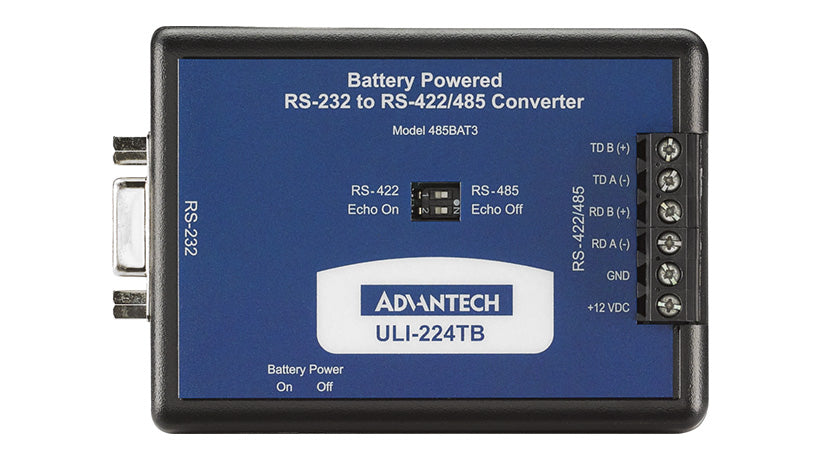

ULI-224TB - RS-232 (DB9 Female to RS-422/485 (TB) Converter, Battery Powered

Converters RS-232 TD & RD to RS-422/485 signalsExtends RS-232 data signals up to 1.?2 km (4000 ft)Data rate: up to 115.2 Kbps3 powering options: Battery (2) AAA, RS-232 handshake lines, or external power supply (not included, sold separately)DB9 F / TBAutomatic Send Data Control – no software drivers necessary

Accessory General - Mounting: Inline | Environment - Operating Temperature: 0 ~ 70°C (32 ~ 158°F) | General - RS-232 Connector: DB9 Female | General - RS-422/485 Connector: Terminal Block | General - Serial Type: RS-422/485 | Power - Power Input (DC): 12 VDC | Power - Power Input (Serial): Port-Powered from RS-232 | Serial Communication - Maximum Serial Transmission Speed: 115.2 Kbps | Serial Communication - Serial Converter: RS-232 to RS-422/485 | Serial Communication - Serial Port Connector Type: 1 x DB9 Female, 1 x Terminal Block | Serial Communication - Serial Port Number: 1

• Model: BB-485BAT3
