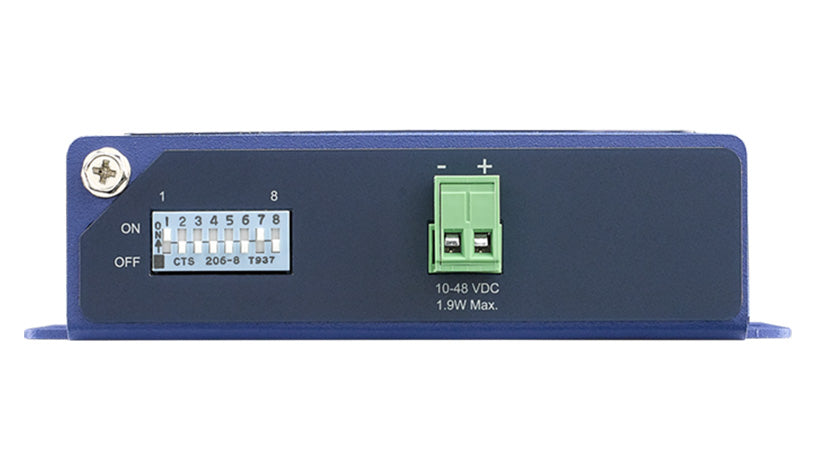

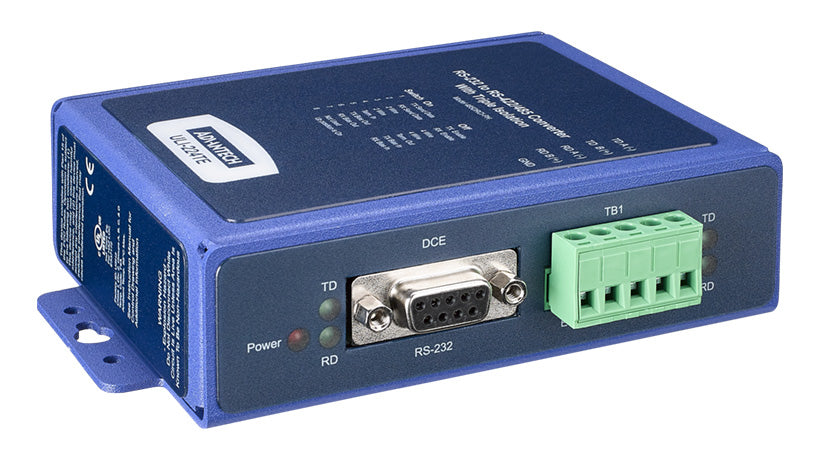

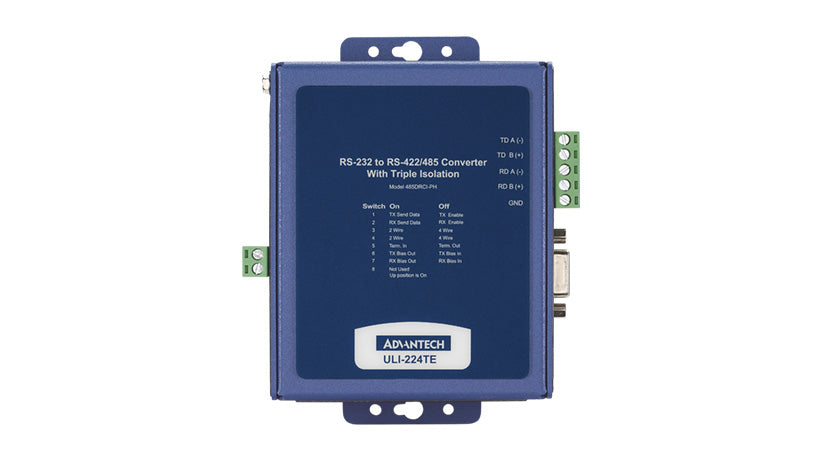

ULI-224TE - Serial Converter, RS-232 (DB9) to RS-422/485 (TB) , Isolated, Ind., DIN Mount, C1D2

Converts RS-232 data signals to RS-422/RS-485Three-way 2 KV optical isolation (input, output, power)Wide operating temperature: -40 to +85 °CModbus ASCII/RTURugged IP30 metal panel mount case, DB9 F / TB10-48 Vdc input power (external power supply required, sold separately)UL C1/D2, IEEE-61850-3, IEEE-1613

Accessory General - Mounting: Panel, DIN | Certification - Safety: Class I, Division 2, UL 508 | Certification - Substation: IEC-61850-3 | Environment - Operating Temperature: -40 ~ 85°C (-40 ~ 185°F) | General - Isolation: 2kV | General - Mounting: Panel | General - Power: 10-48VDC | General - Power and Data Isolated: Yes | General - Technology: Serial | General - Temperature: -40 to 85C | Mechanism - Enclosure (Metal): Metal | Power - Power Input (DC): 10 ~ 48 VDC | Protection - Isolation: 2,000 VDC | Protection - Surge Protection: 600W | Serial Communication - Maximum Serial Transmission Speed: 115.2 Kbps | Serial Communication - Serial Converter: RS-232 to RS-422/485 | Serial Communication - Serial Port Connector Type: 1 x DB9 Female, 1 x Terminal Block | Serial Communication - Serial Port Number: 1

• Model: BB-485DRCI-PH
