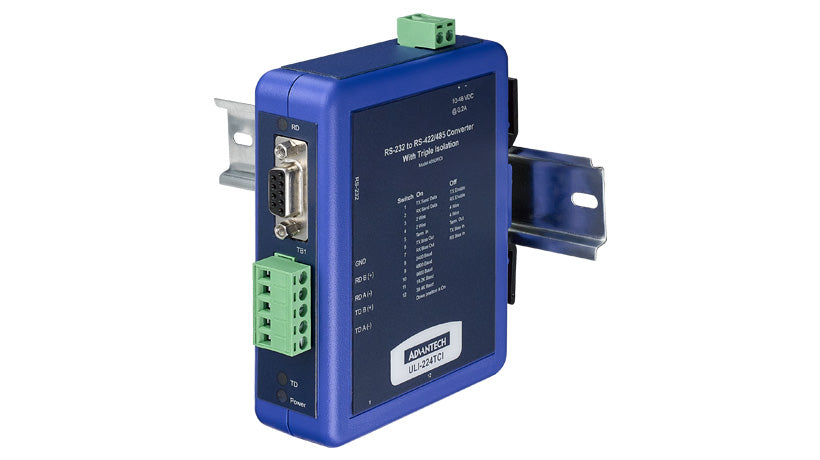

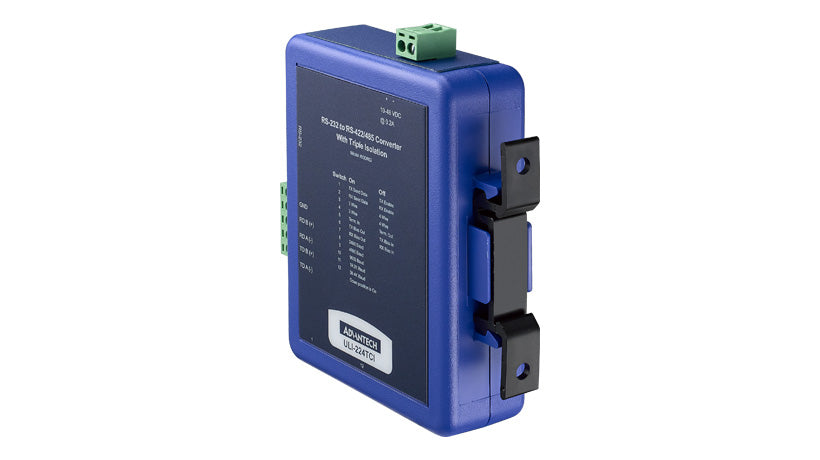

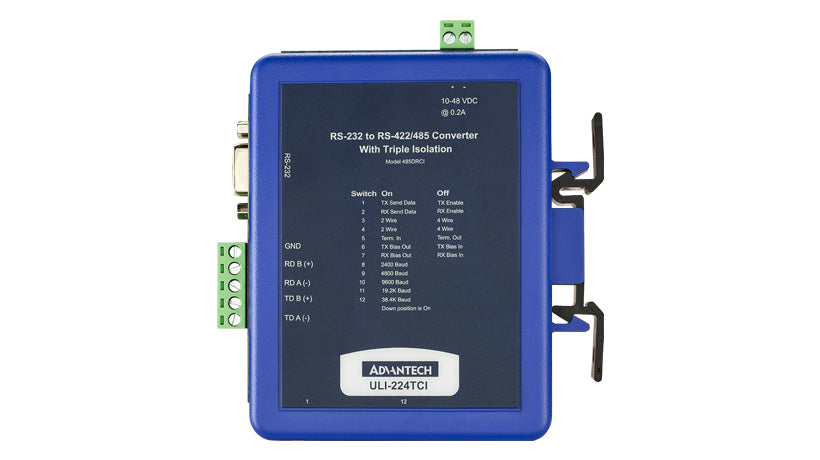

ULI-224TCI - 3-Way Isolated. RS-232 to RS-422/485 Converter, Industrial, C1D2

Converts RS-232 to RS-422/485 Converter (DB9f / TB)3-way 2 KV optical isolation (input, output, power)Data rates up to 115.2 kbpsWide operating temperature: -40 to +80 °CModbus ASCII/RTU, Allen-Bradley® DH-485 compatibleDIN rail mount, DB9 F / TB10–48 VDC input power range (power supply required, not included, sold separately)

Accessory General - Mounting: DIN | Certification - Safety: UL C1/D2 (Class I, Division 2) | Environment - Operating Temperature: -40 ~ 85°C (-40 ~ 185°F) | General - Isolation: 2kV | General - Mounting: DIN | General - Power: 10-48VDC | General - Power and Data Isolated: Yes | General - Technology: Serial | General - Temperature: -40 to 80C | Power - Power Input (DC): 10 ~ 48 VDC | Protection - Isolation: 2,000 VDC | Protection - Surge Protection: 600W | Serial Communication - Maximum Serial Transmission Speed: 115.2 Kbps | Serial Communication - Serial Converter: RS-232 to RS-422/485 | Serial Communication - Serial Port Connector Type: 1 x DB9 Female, 1 x Terminal Block | Serial Communication - Serial Port Number: 1

• Model: BB-485DRCI
