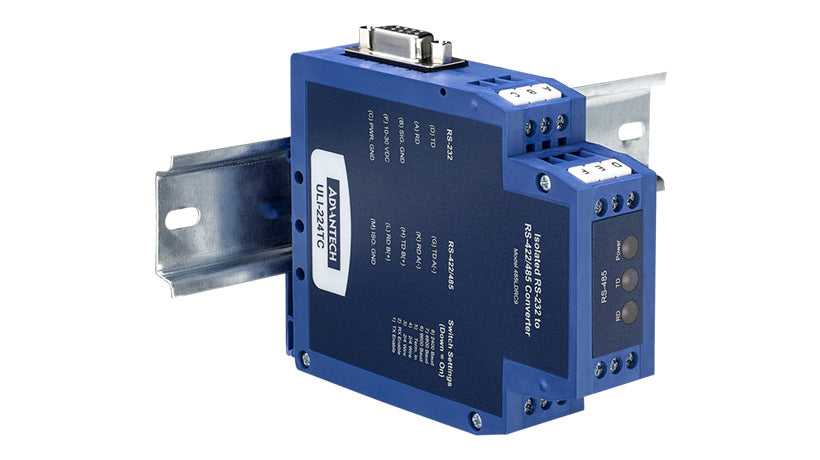

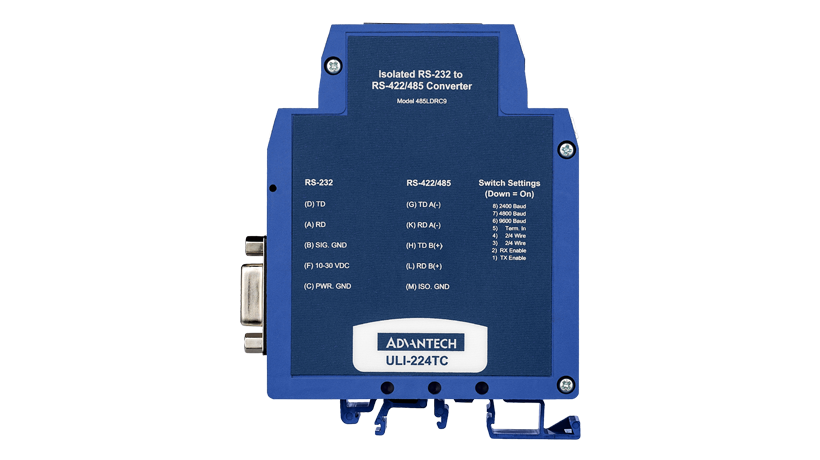

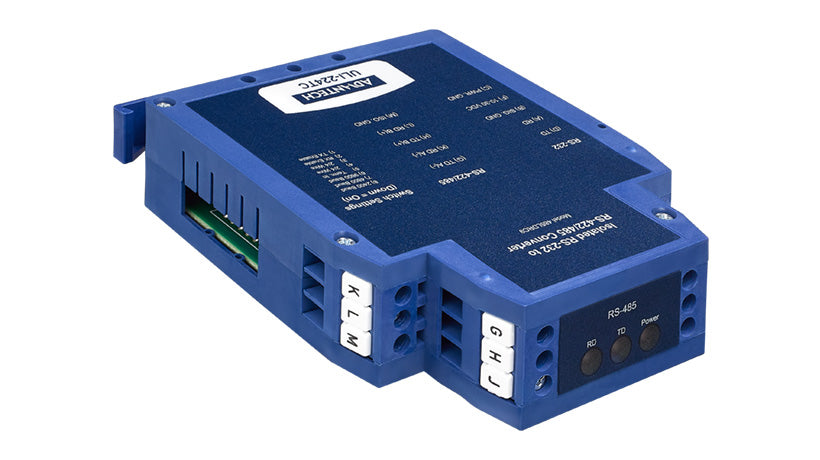

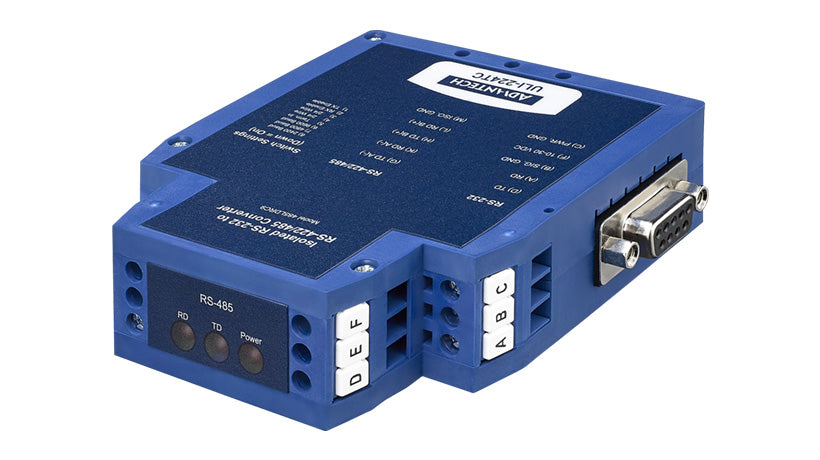

ULI-224TC - RS-232 to Isolated RS-422/485 Converter, Industrial, DIN Rail Mounted

Converts RS-232 (DB9F or TB) to RS-422/485 (TB)2 kV optical isolation on input/output; 500W surge suppression19.?2 kbps data rate; extends data up to 1.2 km-40 to +80 °C wide operating temperatureExternal 10-30 power supply required (not included)Automatic Send Data control - no software drivers required

Accessory General - Mounting: DIN | Environment - Operating Temperature: -40 ~ 80°C (-40 ~ 176°F) | Environment - Temperature (Operating Range): -40 ~ 80°C (-40 ~ 176°F) | General - Isolation: 2kV | General - Mounting: DIN | General - Power: 10-30VDC | General - Technology: Serial | General - Temperature: -40 to 80C | Power - Power Input (DC): 10 ~ 30 VDC | Protection - Isolation: 2,000 VDC | Protection - Surge Protection: 500W | Serial Communication - Maximum Serial Transmission Speed: 19.2 Kbps | Serial Communication - Serial Converter: RS-232 to RS-422/485 | Serial Communication - Serial Port Connector Type: 1 x DB9 Female, 1 x Terminal Block | Serial Communication - Serial Port Number: 1

• Model: BB-485LDRC9
