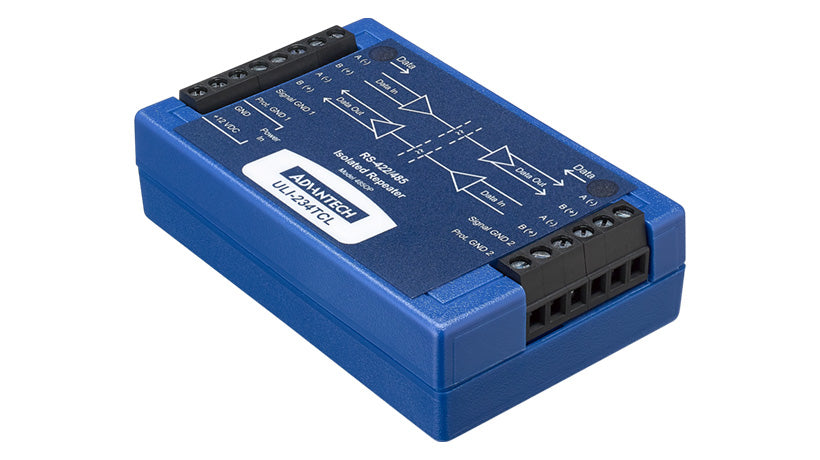

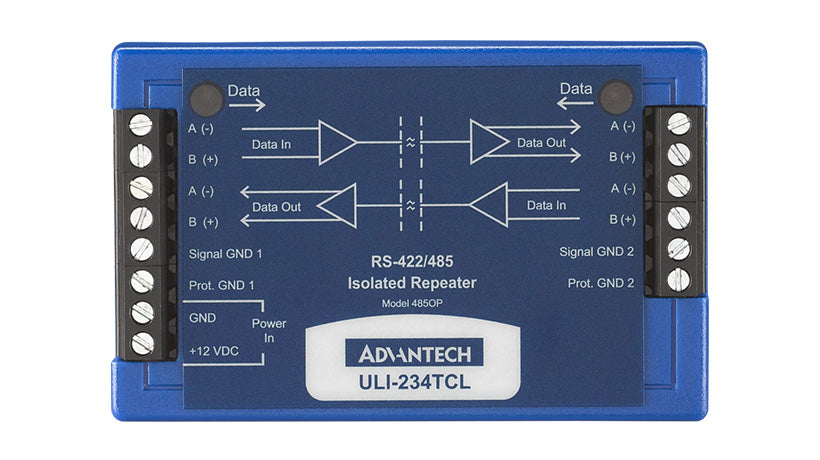

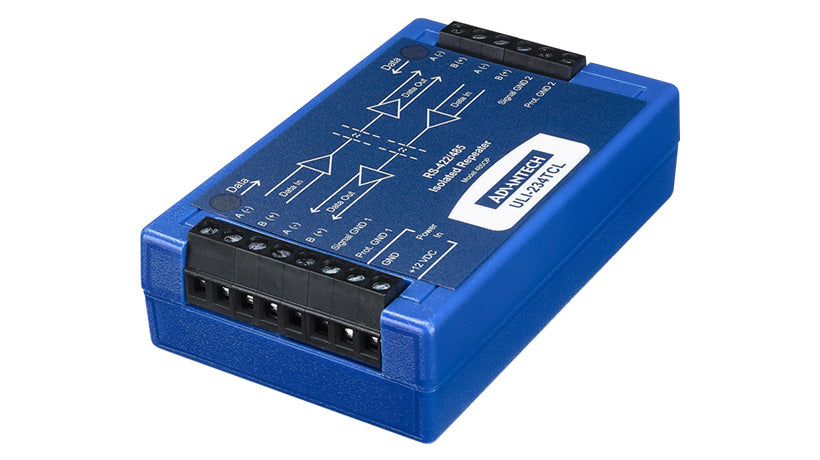

ULI-234TCL - RS-422/485 (Terminal Block) Isolator

Device and data 2 kV optical isolation and 1.?2 km (4000 ft) extensionAdd up to 32 nodes to RS-485 networkInline installationExternal 12 Vdc power source required (included)Modbus support

Accessory General - Mounting: Inline | Environment - Operating Temperature: 0 ~ 40°C (32 ~ 104°F) | General - Isolation: 2kV | General - Mounting: Inline | General - Power: 10-14VDC | General - Serial Type: RS-422/485 | General - Technology: Serial | General - Temperature: 0 to 40C | Power - Power Input (DC): 10 - 14 VDC | Protection - Isolation: 2,000 VDC | Protection - Surge Protection: 600W | Serial Communication - Maximum Serial Transmission Speed: 115.2 Kbps | Serial Communication - Repeater Maximum Distance: 1.2 Kilometers | Serial Communication - Serial Port Connector Type: Terminal block | Serial Communication - Serial Port Number: 1 | Serial Communication - Serial Standard: RS-422 / RS-485

• Model: BB-485OP
