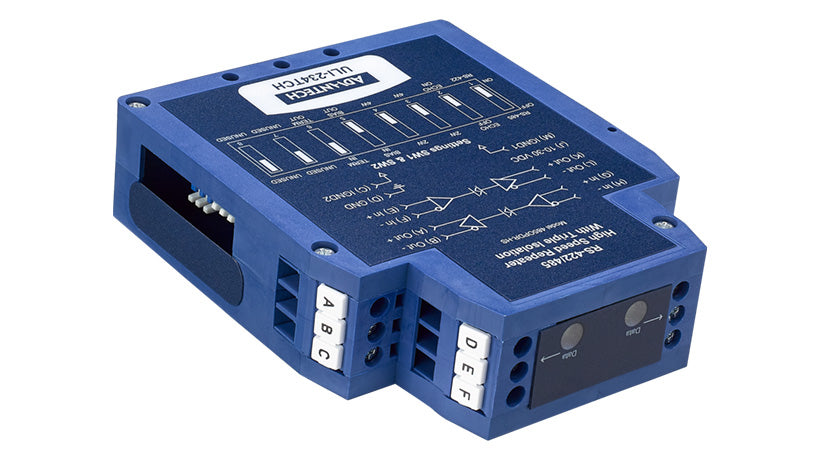

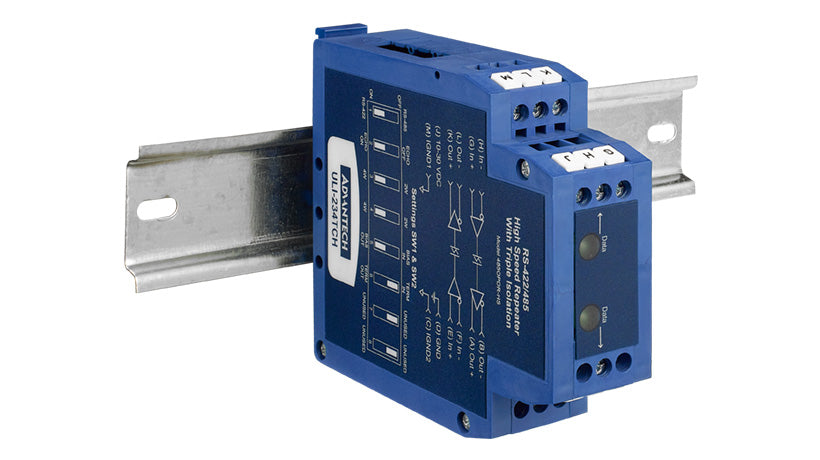

ULI-234TCH - Serial Repeater, RS-422/485 TB, Isolated, Ind. DIN, High Speed

Extends RS-422/RS-485 an extra 1.?2 km (4000 ft)2 kV Isolation, and IEC ESD protectionsData rate: up to 1.?5 Mbps-40 to +80°C wide operating temperatureDIN rail mount (panel mount with optional brackets)10 - 30 Vdc power supply required, not included, sold separately

Accessory General - Mounting: Panel, DIN | Environment - Operating Temperature: -40 ~ 80°C (-40 ~ 176°F) | General - Isolation: 2kV | General - Mounting: DIN | General - Power: 10-30VDC | General - Serial Type: RS-422/485 | General - Technology: Serial | General - Temperature: -40 to 80C | Power - Power Input (DC): 10 ~ 30 VDC | Protection - Isolation: 2,000 VDC | Protection - Surge Protection: 600W | Serial Communication - Maximum Serial Transmission Speed: 115.2 Kbps | Serial Communication - Repeater Maximum Distance: 1.2 Kilometers | Serial Communication - Serial Port Connector Type: Terminal block | Serial Communication - Serial Port Number: 1 | Serial Communication - Serial Standard: RS-422 / RS-485

• Model: BB-485OPDR-HS
• Contact Us: +91 96993 71392
• Email: sales@elationind.com
• Worldwide Shipping Available
