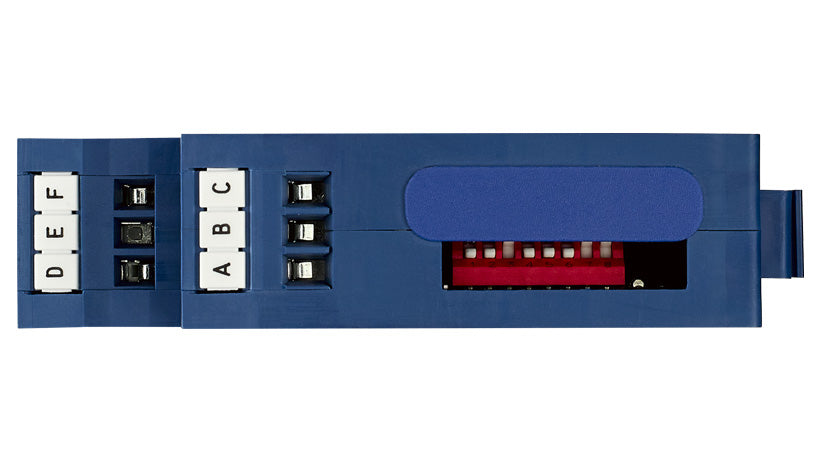

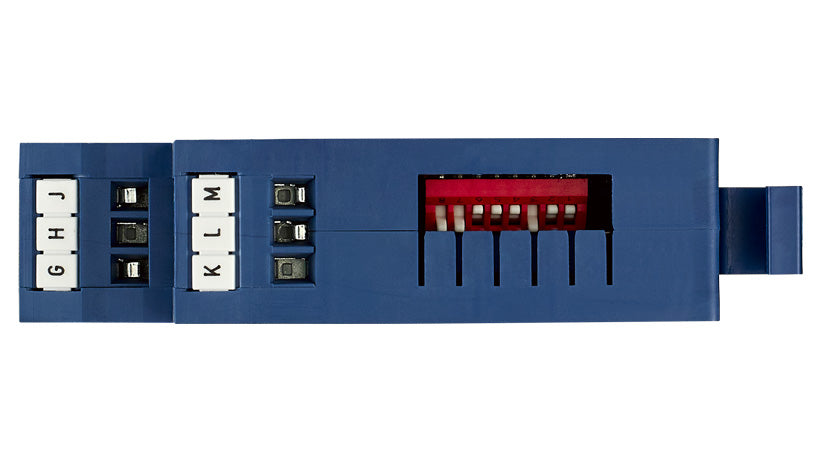

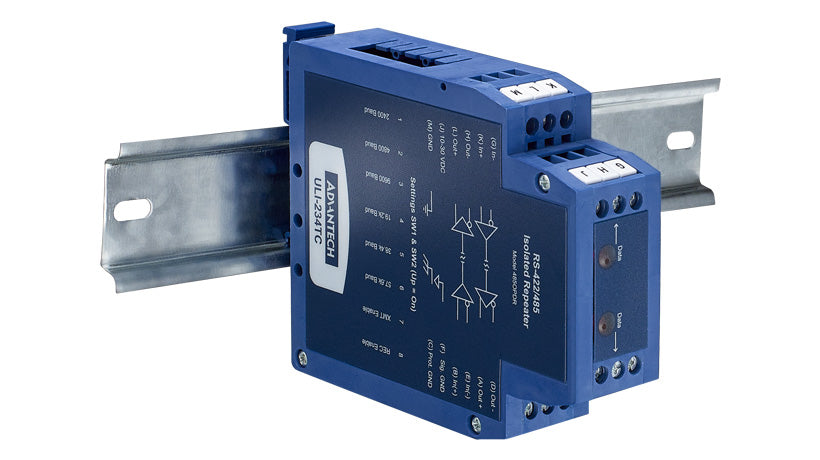

ULI-234TC - RS-422/485 Repeater / Isolator, Industrial, Terminal Blocks

Extends RS-422/485 additional 1.?2km2 KV isolation; 600W surge suppression-40 to +80 °C wide operating temperature10-30 Vdc power supply required (not included, sold separately)DIN rail mount (panel mount adapter available)cULus Recognized, UL508

Accessory General - Mounting: DIN | Environment - Operating Temperature: -40 ~ 80°C (-40 ~ 176°F) | Environment - Temperature (Operating Range): -40 ~ 80°C (-40 ~ 176°F) | General - Isolation: 2kV | General - Mounting: DIN | General - Power: 10-30VDC | General - Serial Type: RS-422/485 | General - Technology: Serial | General - Temperature: -40 to 80C | Power - Power Input (DC): 10 ~ 30 VDC | Protection - Isolation: 2,000 VDC | Protection - Surge Protection: 600W | Serial Communication - Maximum Serial Transmission Speed: 115.2 Kbps | Serial Communication - Repeater Maximum Distance: 1.2 Kilometers | Serial Communication - Serial Port Connector Type: Terminal block | Serial Communication - Serial Port Number: 1 | Serial Communication - Serial Standard: RS-422 / RS-485

• Model: BB-485OPDR
