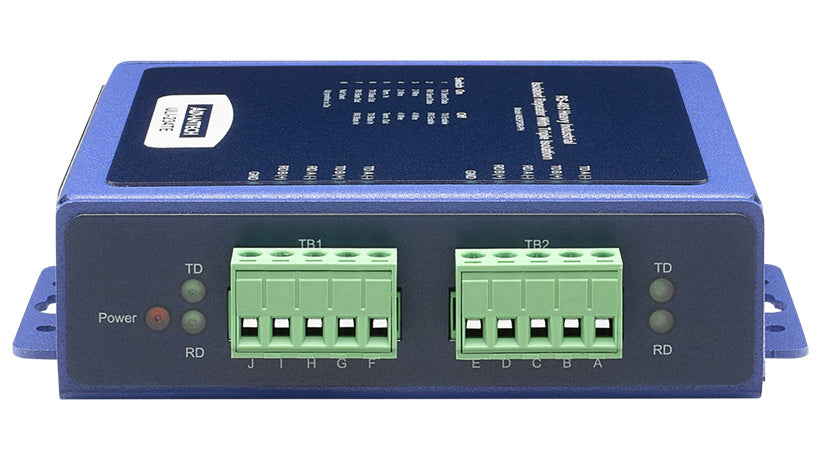

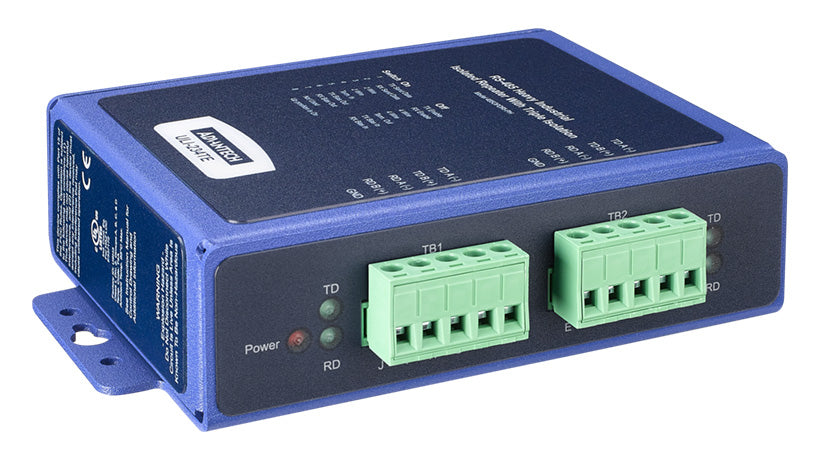

ULI-234TE - Serial Repeater, RS-422/485 TB, Isolated, Ind. Panel, C1D2

RS-422/485 Repeator2kV, 3-way isolation (input/output/power)Data rates:1.?2 to 115.2 KbpsWide operating temperature range: -40 to +85 °CIEC-61850-3, IEEE-1613, NEMA TS2, FCC, CE10 to 48 VDC input power (power supply required, sold separately)

Accessory General - Mounting: Panel | Certification - Safety: UL C1/D2 (Class I, Division 2) | Certification - Substation: IEC-61850-3 | Environment - Operating Temperature: -40 ~ 85°C (-40 ~ 185°F) | General - Isolation: 2kV | General - Mounting: Panel | General - Power: 10-48VDC | General - Power and Data Isolated: Yes | General - Serial Type: RS-422/485 | General - Technology: Serial | General - Temperature: -40 to 85C | Mechanism - Enclosure (Metal): Metal | Power - Power Input (DC): 10 ~ 48 VDC | Protection - Isolation: 2,000 VDC | Protection - Surge Protection: 600W | Serial Communication - Maximum Serial Transmission Speed: 115.2 Kbps | Serial Communication - Repeater Maximum Distance: 1.2 Kilometers | Serial Communication - Serial Port Connector Type: Terminal block | Serial Communication - Serial Port Number: 1 | Serial Communication - Serial Standard: RS-422 / RS-485

• Model: BB-485OPDRI-PH
