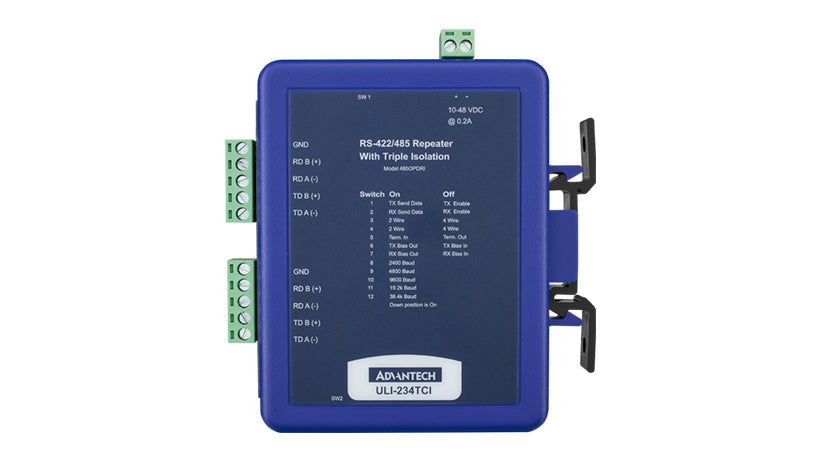

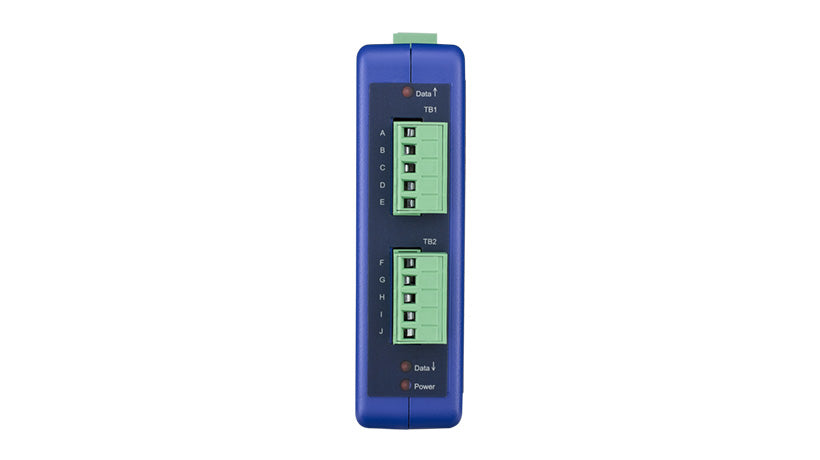

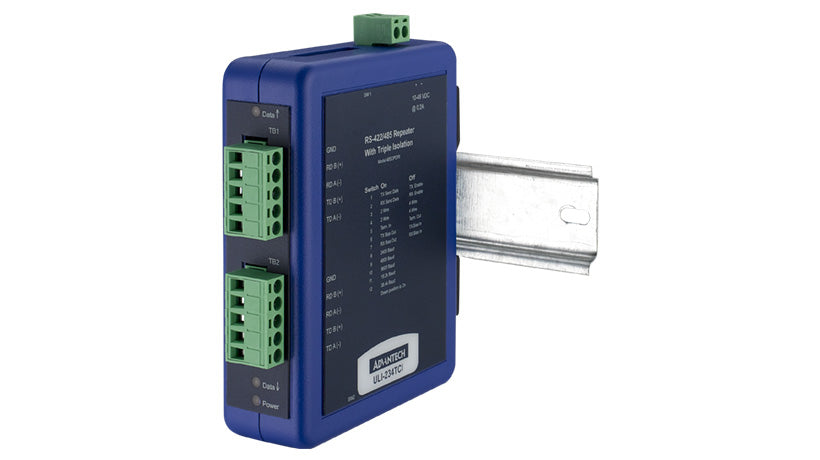

ULI-234TCI - 3-Way Isolated RS-422/485 Repeater, Industrial DIN Mount, Terminal Blocks

Repeater extends signals an additional 1200 m2 KV, 3-way optical isolation (input/output/power)Data rate: up to 115.2 kbpsWide temperature range: -40 to +80 °CDIN rail mount, IP30 case10-48 Vdc input (power supply required, not included, sold separately)Allen-Bradley 1747-AIC (DH-485 network)

Accessory General - Mounting: DIN | Certification - Safety: UL C1/D2 (Class I, Division 2) | Environment - Operating Temperature: -40 ~ 80°C (-40 ~ 176°F) | General - Isolation: 2kV | General - Mounting: DIN | General - Power: 10-48VDC | General - Power and Data Isolated: Yes | General - Serial Type: RS-422/485 | General - Technology: Serial | General - Temperature: -40 to 80C | Power - Power Input (DC): 10 ~ 48 VDC | Protection - Isolation: 2,000 VDC | Protection - Surge Protection: 600W | Serial Communication - Maximum Serial Transmission Speed: 115.2 Kbps | Serial Communication - Repeater Maximum Distance: 1.2 Kilometers | Serial Communication - Serial Port Connector Type: Terminal block | Serial Communication - Serial Port Number: 1 | Serial Communication - Serial Standard: RS-422 / RS-485

• Model: BB-485OPDRI
