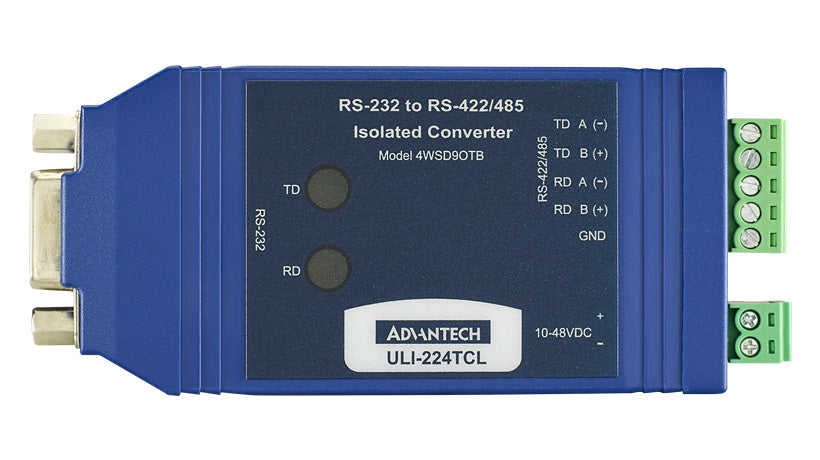

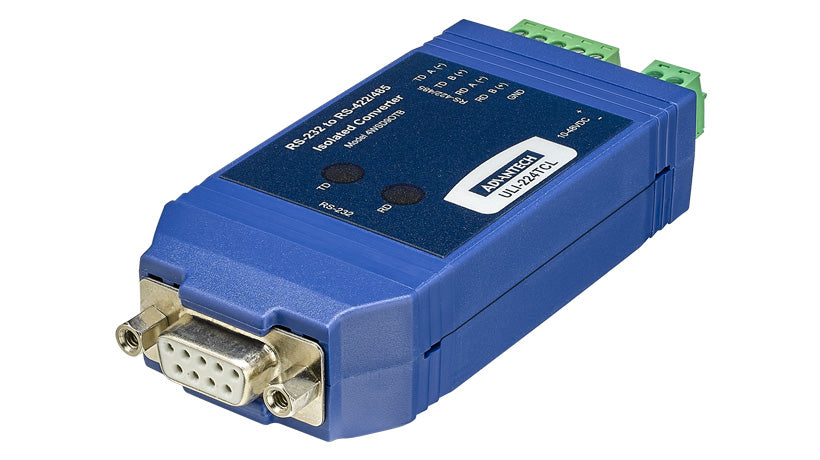

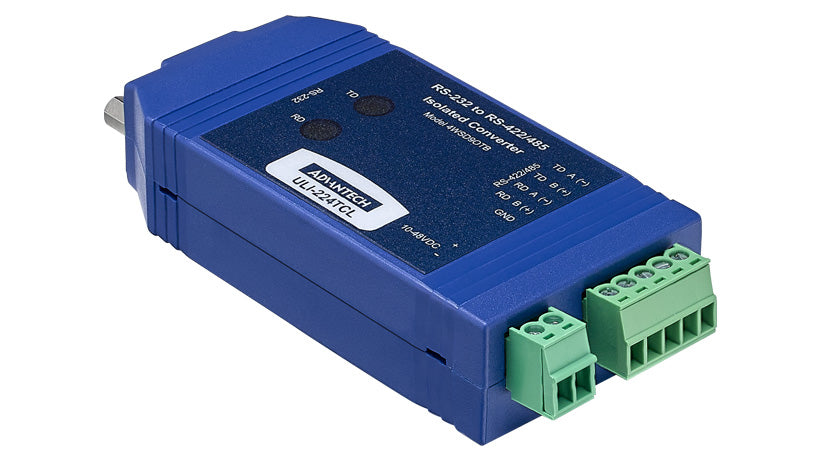

ULI-224TCL - RS-232 (DB9 F) to Iso. RS-422/485 (TB) Converter, Isolated

RS-232 to RS-422 or RS-485 (2 or 4 wire) serial conversion2 KV two-way optical isolationData rate up to 115.2 kbpsQuick, inline installationRemovable terminal blocks for RS-422/48510 to 48 VDC external power required (not included, sold separately)

Accessory General - Mounting: Inline | Environment - Operating Temperature: 0 ~ 70°C (32 ~ 158°F) | Environment - Temperature (Operating Range): 0 ~ 70°C (32 ~ 158°F) | General - Isolation: 2kV | General - Mounting: Inline | General - Power: 10-48VDC | General - Technology: Serial | General - Temperature: 0 to 70C | Power - Power Input (DC): 10 ~ 48 VDC | Protection - Isolation: 2,000 VDC | Serial Communication - Maximum Serial Transmission Speed: 115.2 Kbps | Serial Communication - Serial Converter: RS-232 to RS-422/485 | Serial Communication - Serial Port Connector Type: 1 x DB9 Female, 1 x Terminal Block | Serial Communication - Serial Port Number: 1

• Model: BB-4WSD9OTB
