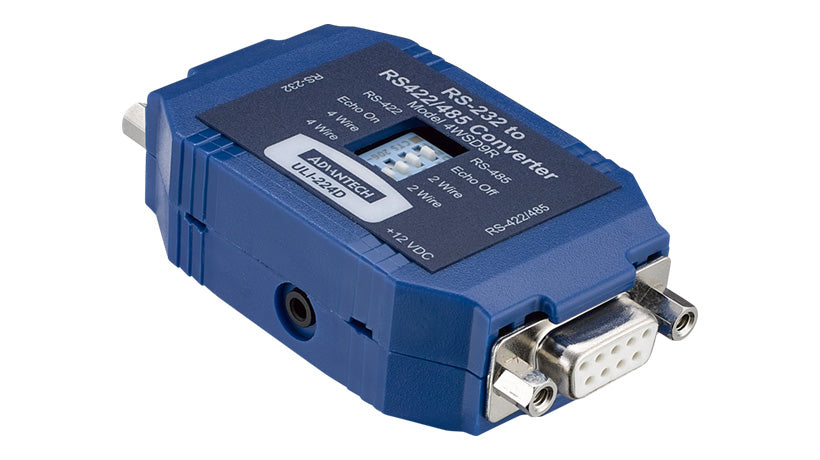

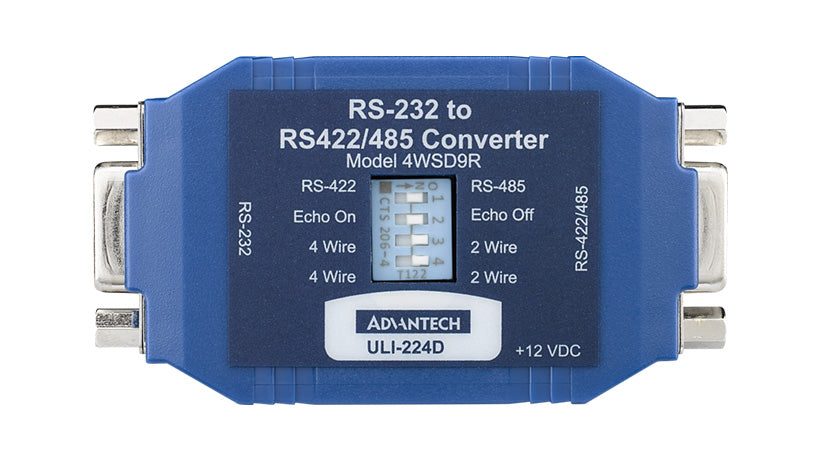

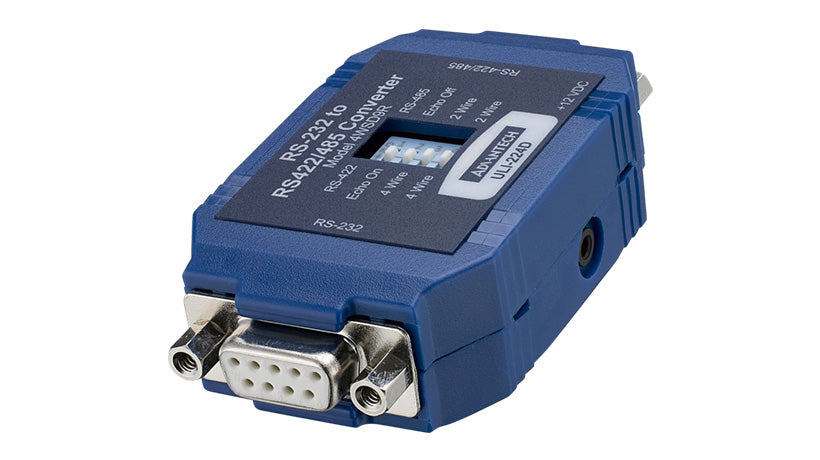

ULI-224D - RS-232 to RS-422/485 (2-Wire / 4-Wire) Converter, DB9 Female

RS-232 to RS-485 ConverterExtend RS-232 data signals up to 1.?2 km (4,000 ft.)Data rate: 115.2 kbpsQuick, inline installationDIP switch selectable RS-422 or RS-485RS-232 port power or external 12 Vdc power jack (power supply not included, sold separately)

Accessory General - Mounting: Inline | Environment - Operating Temperature: 0 ~ 70°C (32 ~ 158°F) | General - RS-232 Connector: DB9 Female | General - RS-422/485 Connector: DB9 Female | General - Serial Type: RS-422/485 | General - Temperature: 0 to 70C | Power - Power Input (DC): 12 VDC | Power - Power Input (Serial): Port-Powered from RS-232 | Serial Communication - Maximum Serial Transmission Speed: 115.2 Kbps | Serial Communication - Serial Converter: RS-232 to RS-422/485 | Serial Communication - Serial Port Connector Type: 1 x DB9 Female, 1 x DB9 Female | Serial Communication - Serial Port Number: 1

• Model: BB-4WSD9R
