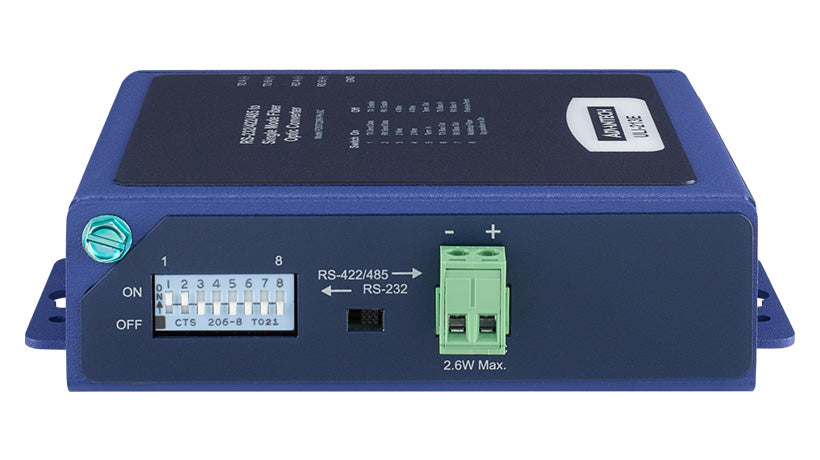

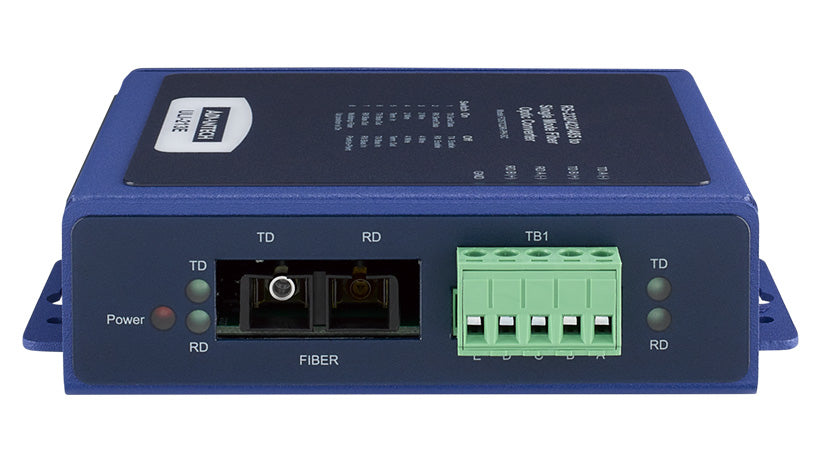

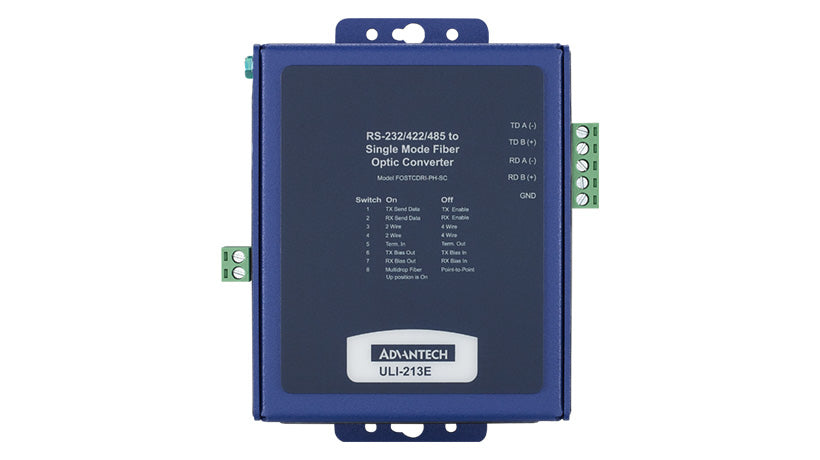

ULI-213E - Serial to Fiber Converter, RS-232/422/485 TB to SM Fiber SC, Ind. Panel, C1D2

Converts serial data signals to multi- or single-mode fiber, SC connector2 KV, 3-way isolation (input, output, power circuits)Data rate: 9.?6 to 115.2 kbps (bit-wise enable)-40 to +85°C wide operating temperatureIP30 metal panel mount case (DIN rail adaptable)FCC, CE, IEC-61850-3, IEEE 1613, UL C1/D210-48 VDC power source required (not included, sold separately)Note: 2 units required to extend data via fiber optic connection (see datasheet)

Accessory General - Mounting: Panel | Certification - Safety: UL C1/D2 (Class I, Division 2) | Certification - Substation: IEC-61850-3 | Environment - Operating Temperature: -40 ~ 85°C (-40 ~ 185°F) | Fiber General - Max. Distance: 15 km | Fiber General - Optical Connector: SC | Fiber General - Optical Mode: Single-mode | Fiber General - Optical Port Number: 1 | Fiber General - Optical Wavelength: 1310 nm | General - Fiber Type: Single-mode | General - Mounting: Panel | General - Power: 10-48VDC | General - Serial Connector: Terminal Block | General - Serial Type: RS-232/422/485 | General - Technology: Serial | General - Temperature: -40 to 85C | Mechanism - Enclosure (Metal): Metal | Power - Power Input (DC): 10 ~ 48 VDC | Protection - Isolation: 2,000 VDC | Protection - Surge Protection: 600W | Serial Communication - Maximum Serial Transmission Speed: 115.2 Kbps | Serial Communication - Serial Port Connector Type: Terminal block | Serial Communication - Serial Port Number: 1 | Serial Communication - Serial Standard: RS-232 / RS-422 / RS-485

• Model: BB-FOSTCDRI-PH-SC
