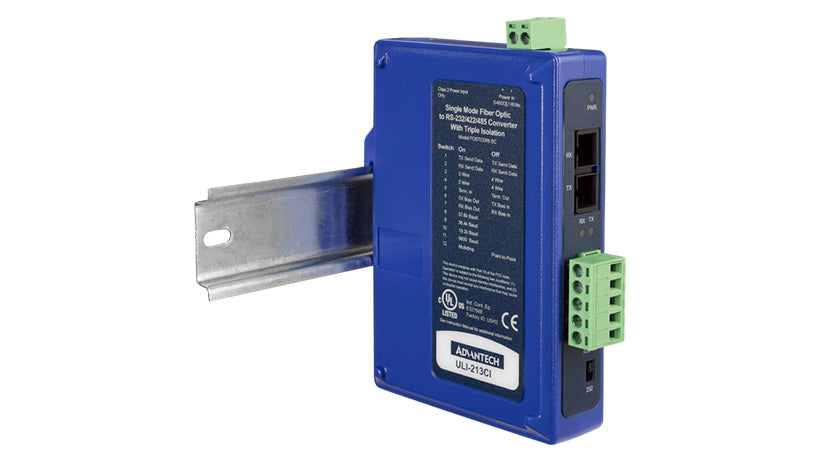

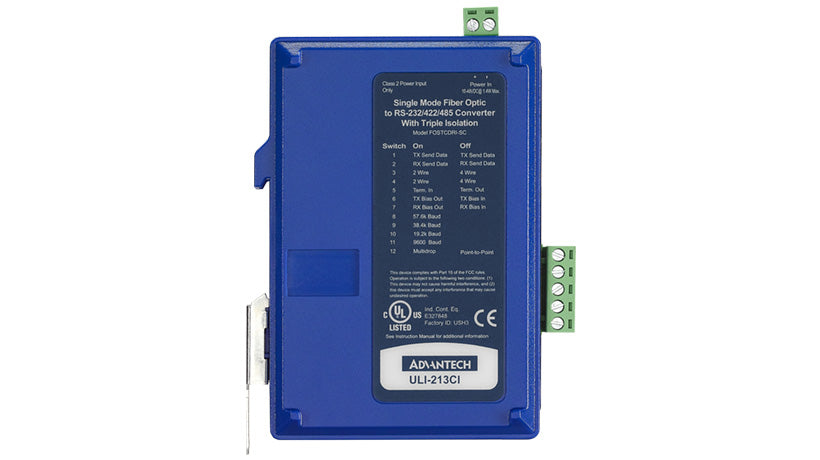

ULI-213CI Serial Converter, RS-232 TB to SM Fiber SC, Ind. DIN

Converts serial data signals to single-mode fiber optic2 KV 3-way optical isolation (two data ports, power circuit) and EMI/RFI protectionData rates up to 115.2 kbpsWide operating temperature: -40 to +80 °CIP30 plastic case, DIN mountUL 508 rated10 – 48 VDC input power rangeUp to 15 km (9 mi) rangePower supply not included, sold separately

Accessory General - Mounting: DIN | Environment - Operating Temperature: -40 ~ 80°C (-40 ~ 176°F) | Fiber General - Max. Distance: 15 km | Fiber General - Optical Connector: SC | Fiber General - Optical Mode: Single-mode | Fiber General - Optical Port Number: 1 | Fiber General - Optical Wavelength: 1310 nm | General - Fiber Type: Single-mode | General - Mounting: DIN | General - Power: 10-48VDC | General - Serial Connector: Terminal Block | General - Serial Type: RS-232/422/485 | General - Technology: Serial | General - Temperature: -40 to 80C | Power - Power Input (DC): 10 ~ 48 VDC | Protection - Isolation: 2,000 VDC | Protection - Surge Protection: 600W | Serial Communication - Maximum Serial Transmission Speed: 115.2 Kbps | Serial Communication - Serial Port Connector Type: Terminal block | Serial Communication - Serial Port Number: 1 | Serial Communication - Serial Standard: RS-232 / RS-422 / RS-485

• Model: BB-FOSTCDRI-SC
