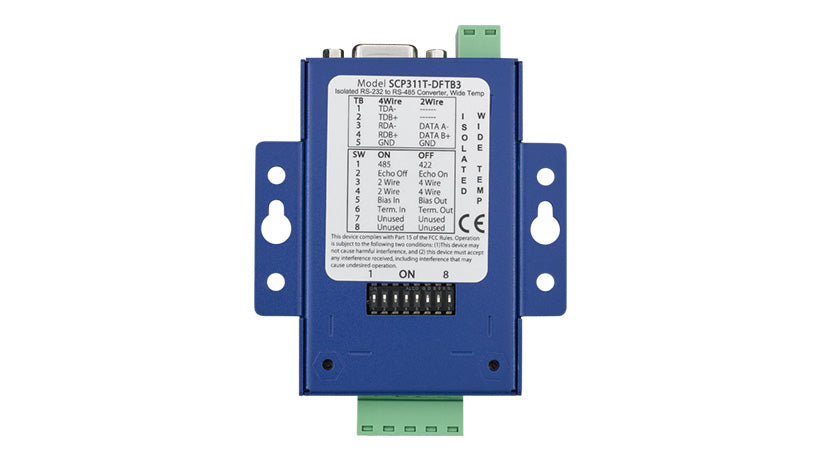

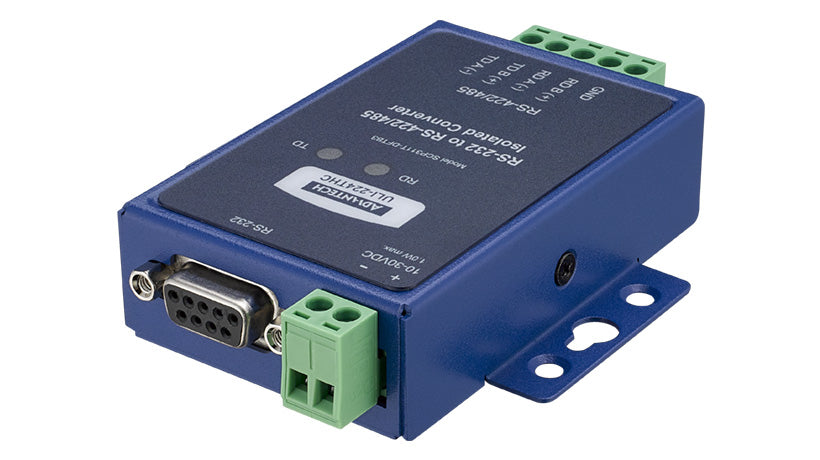

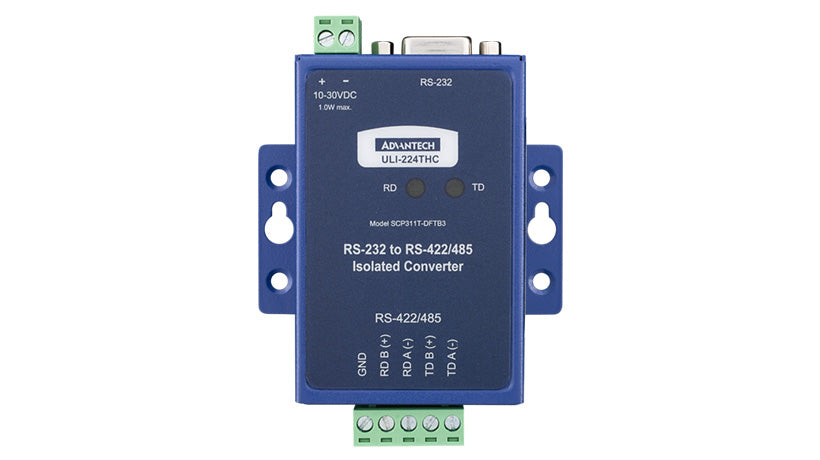

ULI-224THC - RS-232 to Isolated. RS-422/485 Converter, Isolated

Convert RS-232 data signals to RS-422/4852 kV optical isolation on input/output; ESD protection (4kV contact, 8kV air)Data rate: up to 460.8 kbps (bit-wise enable)-40 to +80°C wide operating temperatureRugged metal panel mount case (DIN rail adapters sold separately)10-30 VDC external power source (not included, sold separately)UL Listed

Accessory General - Mounting: Panel, DIN | Environment - Operating Temperature: -40 ~ 80°C (-40 ~ 176°F) | General - Isolation: 2kV | General - Mounting: Panel | General - Power: 10-30VDC | General - Technology: Serial | General - Temperature: -40 to 80C | Mechanism - Enclosure (Metal): Metal | Power - Power Input (DC): 10 ~ 30 VDC | Protection - ESD Protection: 4 kV (Contact) ; 8 kV (Air) | Protection - Isolation: 2,000 VDC | Protection - Surge Protection: 1 KV | Serial Communication - Maximum Serial Transmission Speed: 460.8 Kbps | Serial Communication - Serial Converter: RS-232 to RS-422/485 | Serial Communication - Serial Port Connector Type: 1 x DB9 Female, 1 x Terminal Block | Serial Communication - Serial Port Number: 1

• Model: BB-SCP311T-DFTB3
