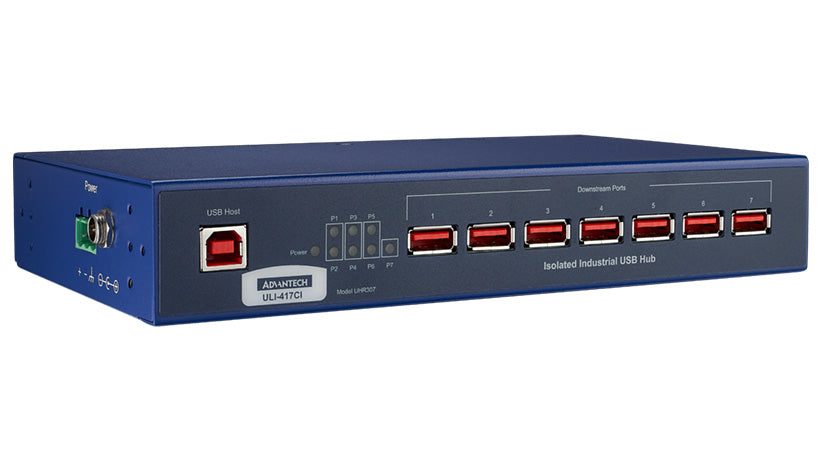

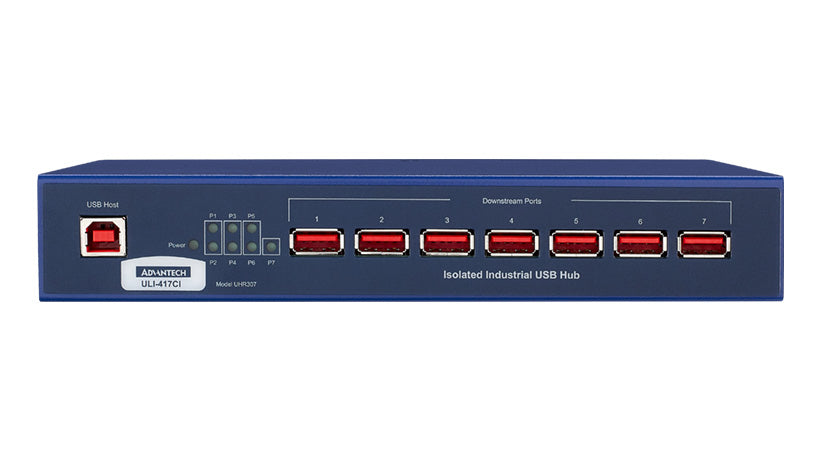

ULI-417CI USB 2.0 Hub, 7 Port, Industrial, Iso.

Expands one USB port to 7 USB ports (USB 2.?0)4 kV isolation & ESD Level 4 (contact 8 kV, air 15 kV) Performance Criteria B ProtectionData rate: 12 Mbps at high speedWide operating temperature: -40 to +80 °CRugged metal case - desk, DIN rail or panel mount (brackets included)FCC, CE, UL, EMC heavy industrialHigh retention USB port connectorsUSB cable included, 1.?8 mExternal power source required (not included, sold separately)

Accessory General - Mounting: DIN | Certification - Safety: UL508, Class 1 Division 2 | Downstream USB Port - Connector Type: Type A (Female) High Retention | Downstream USB Port - Maximum Transfer Rate: Full-Speed (12 Mbps) | Downstream USB Port - Port Number: 7 | Downstream USB Port - Standard: USB 2.0 | Downstream USB Port - Supply Current: 500mA for each downstream port | Environment - Operating Temperature: -40 ~ 80°C (-40 ~ 176°F) | General - Isolation: 4kV | General - Mounting: DIN, Panel | General - Power: 10-30VDC | General - Technology: USB | General - Temperature: -40 to 80C | General - USB Port Count: 7 | Mechanism - Enclosure (Metal): Metal | Power - Power Input (DC): 10 ~ 30 VDC | Protection - ESD Protection: 8 kV (Contact) ; 15 kV (Air) | Protection - Isolation: 4,000 VDC | Upstream USB Port - Connector Type: Type B (Female) High Retention | Upstream USB Port - Maximum Transfer Rate: Full-Speed (12 Mbps) | Upstream USB Port - Port Number: 1 | Upstream USB Port - Standard: USB 2.0

• Model: BB-UHR307
