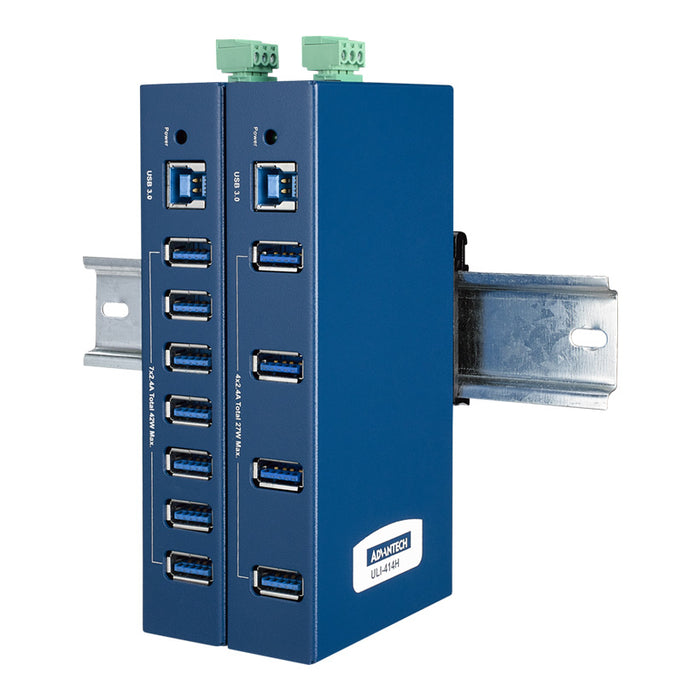

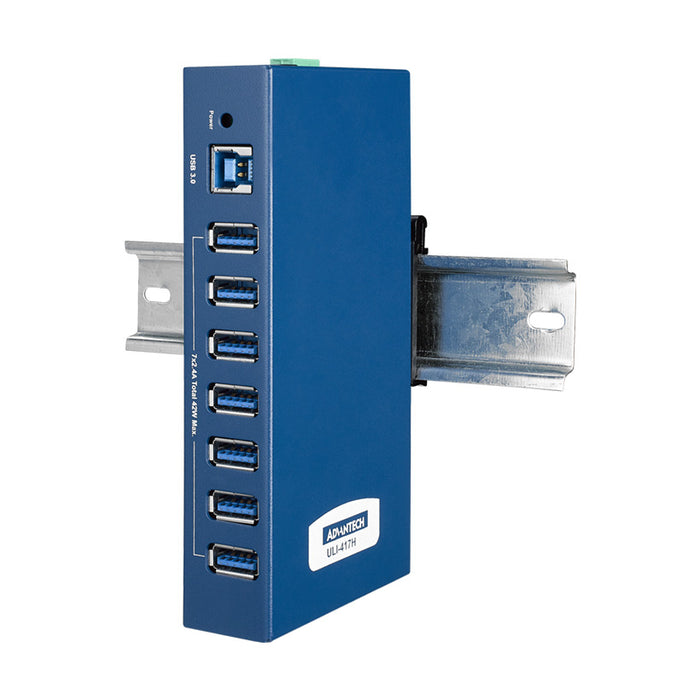

ULI-417H, 7-port Industrial USB 3.2 Gen 1 Hub

• 7-port USB 3.?2 Gen1 speeds up to 5 Gbps• 7 downstream USB 3.?2 ports (Type A); 1 upstream USB 3.2 port (Type B)• Each downstream port supports up to 2.?4A to a maximum of 42W• 15 kV (level 4) air ESD protection and 1kV surge protection• 9-30VDC Power inputs with polarity reverse protection• Metal case with chassis ground• DIN-rail, wall-mount and desktop mount options available (mounting kit included)• USB 3.?0 Type A to Type B cable (2m) included

Certification - CE: Yes | Certification - FCC/IC: Yes | Certification - KCC: Yes | Downstream USB Port - Connector Type: Type A (Female) | Downstream USB Port - Maximum Transfer Rate: SuperSpeed (5 Gbps) | Downstream USB Port - Port Number: 7 | Downstream USB Port - Standard: USB 3.2 Gen 1 / USB 3.0 | Downstream USB Port - Supply Current: 7 x 2.4A on any port to a maximum of 42W total (CDP) | Environment - Operating Temperature: 0 ~ 50 °C (32 ~ 122°F) | Mechanism - Enclosure (Metal): Metal | Mechanism - Mounting (DIN-rail): Yes | Mechanism - Mounting (Wall): Yes | Power - Power Input (DC): 9 ~ 30 VDC | Protection - ESD Protection: 8 kV (Contact) ; 15 kV (Air) | Protection - Surge Protection: 1 KV | Upstream USB Port - Connector Type: Type B (Female) | Upstream USB Port - Maximum Transfer Rate: SuperSpeed (5 Gbps) | Upstream USB Port - Port Number: 1 | Upstream USB Port - Standard: USB 3.2 Gen 1 / USB 3.0

• Model: BB-USH207-B
