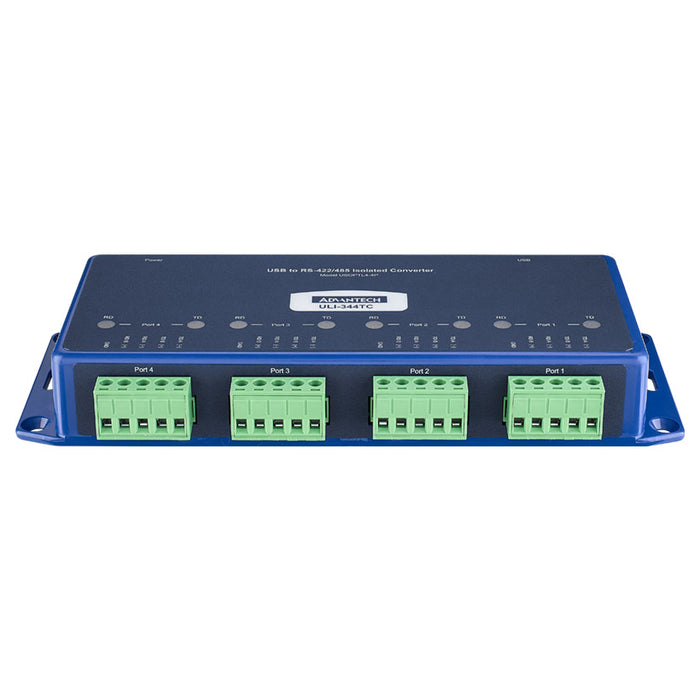

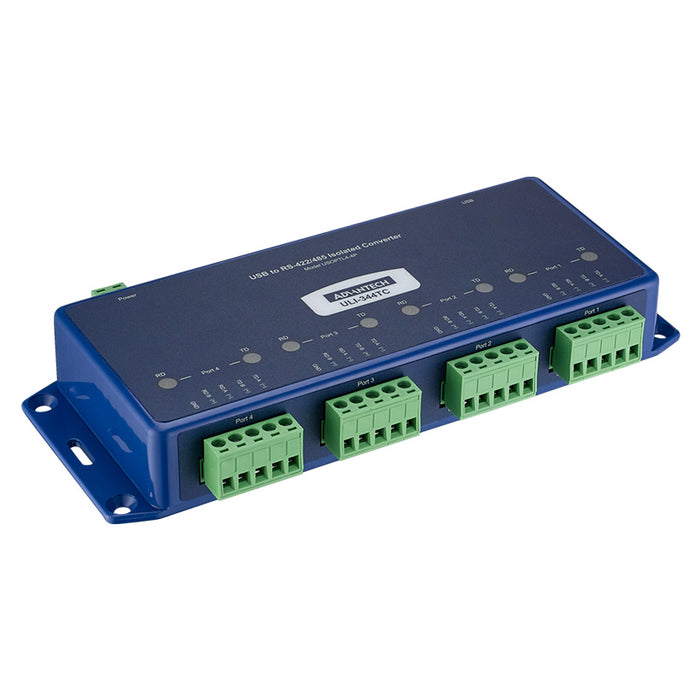

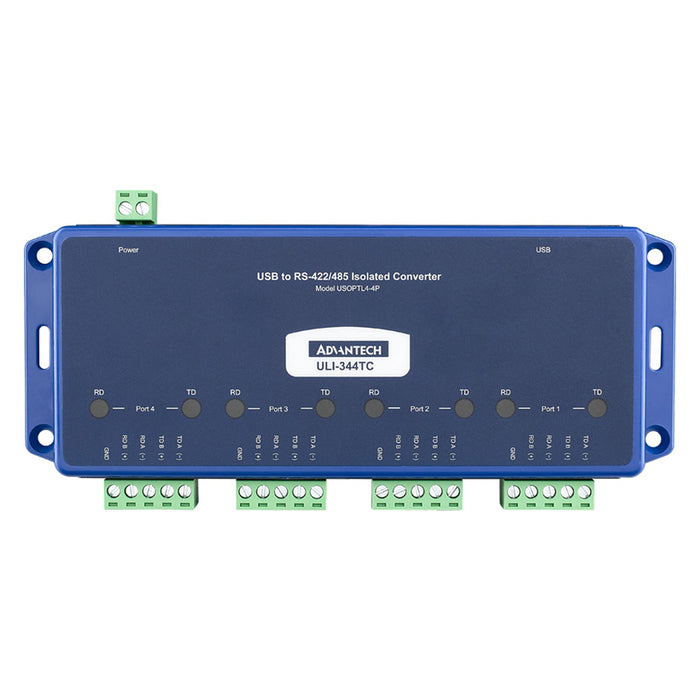

ULI-344TC - USB to RS-422/485 (Terminal Block) Isolated Converter

USB to RS-422/485 Converter2 kV Isolation921.6 Kbps Serial Data RateFlat Panel MountingTerminal Block for 10-30 VDC Power InputHigh Retention USB Connector, Plug in Serial Terminal BlockUSB Cable Included

Accessory General - Mounting: Panel | Environment - Operating Temperature: 0 ~ 70°C (32 ~ 158°F) | General - Isolation: 2kV | General - Mounting: Panel | General - Power: Bus Powered | General - Serial Connector: Terminal Block | General - Serial Port Count: 4 | General - Serial Type: RS-422, RS-485 | General - Technology: USB | General - Temperature: 0 to 70C | Power - Power Input (DC): 10 ~ 30 VDC | Power - Power Input (USB): Port-Powered from USB host (5 VDC) | Protection - Isolation: 2,000 VDC | Serial Communication - Maximum Serial Transmission Speed: 921.6 Kbps | Serial Communication - Serial Port Connector Type: Terminal block | Serial Communication - Serial Port Number: 4 | Serial Communication - Serial Standard: RS-422 / RS-485 | Upstream USB Port - Connector Type: Type B (Female) High Retention | Upstream USB Port - Maximum Transfer Rate: Full-Speed (12 Mbps) | Upstream USB Port - Port Number: 1 | Upstream USB Port - Standard: USB 2.0

• Model: BB-USOPTL4-4P
