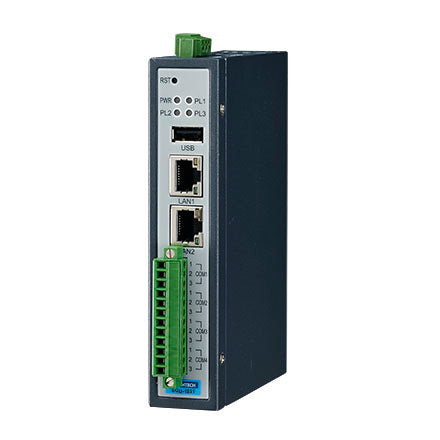

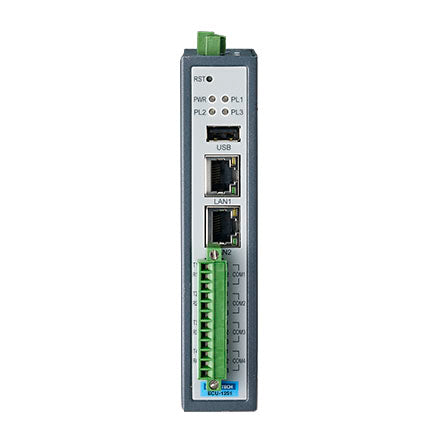

A8 800MHz, 2xLAN, 4xCOM, 1xmPCIe IoT Gateway with EdgeLink

TI Cortex A8, 800MHzDDR3L 256MB RAM1 x Micro-SD Slot4 x RS-232/485 isolated serial ports2 x 10/100 Base-T Ethernet ports1 x Mini-PCIe for WIFI/3G/GPRS/4GSupport web service for remotely on-line monitoringSupport SD card & on-line firmware updateSupport Modbus, IEC-60870-101/104 protocolSupport Data logger on SD cardRED ComplianceOperation Temperature -40~70°C

Environment - Operating Temperature: -40~70 °C (-40~158 °F) | Environment - Relative Humidity: 5~95% RH (non-condensing) | Environment - Storage Temperature: -40~85 °C (-40~185 °F) | Ethernet - Speed: 10/100 Mbps | Expansion Function - Interface: 1 x Full-size mini PCIe 2.0 | Expansion Function - SIM card slot: Nano SIM card | General - Grounding Protection: Chassis grounding | General - Programming Language: Linux C | General - Protocol: OPC-UA Client & Server, DNP3.0 Client & Server, IEC-60870-5-104 Master & Slave, IEC-60870-5-101 Slave, Modbus RTU/TCP Master & Slave, BACNet/IP Server | Hardware - Certification: CE, FCC class A | Hardware - CPU: TI Cortex A8, 800MHz | Hardware - Expansion: 1 x Full-size mPCIe slot | Hardware - LED Indicators: PWR, RUN / ERROR, TX1, RX1, TX2, RX2, Program | Hardware - Memory: DDR3L 256MB | Hardware - OS Support: Linux | Hardware - Power Input: 10~30 VDC | Hardware - Storage: 1 x 1GB Micro-SD card | Hardware - Watchdog Timer: 15~255 s | I/O Interface - Expansion: 1 x Full-size mPCIe Slot | I/O Interface - LAN Ports: 2 x 10/100 Mbps | I/O Interface - Power Connector: 1 x 3-Pin Terminal Block | I/O Interface - Serial Ports: 4 x RS-232/485 (Terminal Block) | I/O Interface - USB Ports: 1 x USB 2.0 | Mechanical - Dimension (W x H x D): 140 x 30 x 96.5 mm | Mechanical - Enclosure: SECC | Mechanical - Form Factor: Passive Cooling and Front Accessible | Mechanical - Mounting: Wall, DIN-rail | Power Requirements - Input Voltage: 10~30 VDC | Serial Communication - Baud Rate (bps): 50 bps~115.2 kbps | Serial Communication - Data Signals: RS-232: TxD, RxD, GND RS-485: Data+, Data- | Wireless Communication - Standard (Technology): WIFI, LTE | Wireless Communication - Standard(Technology): WIFI, LTE

• Model: ECU-1251TL-R10AAE
