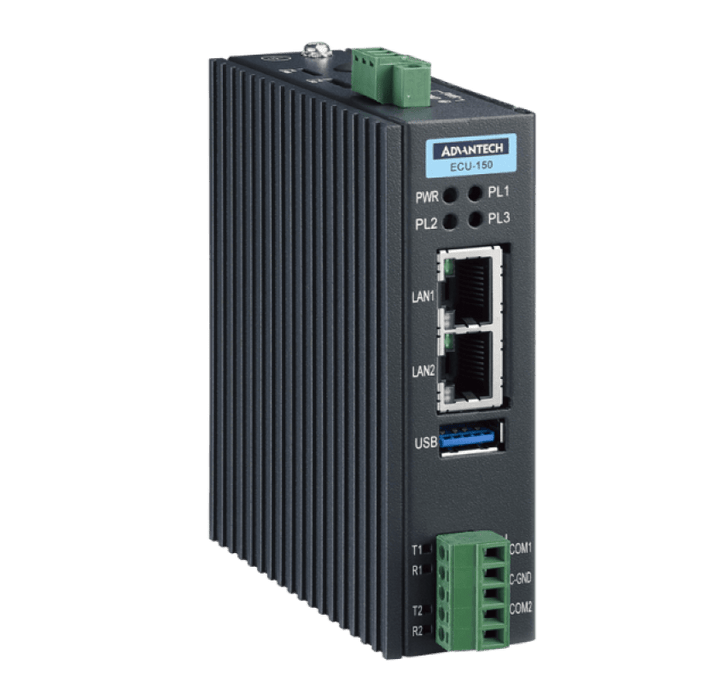

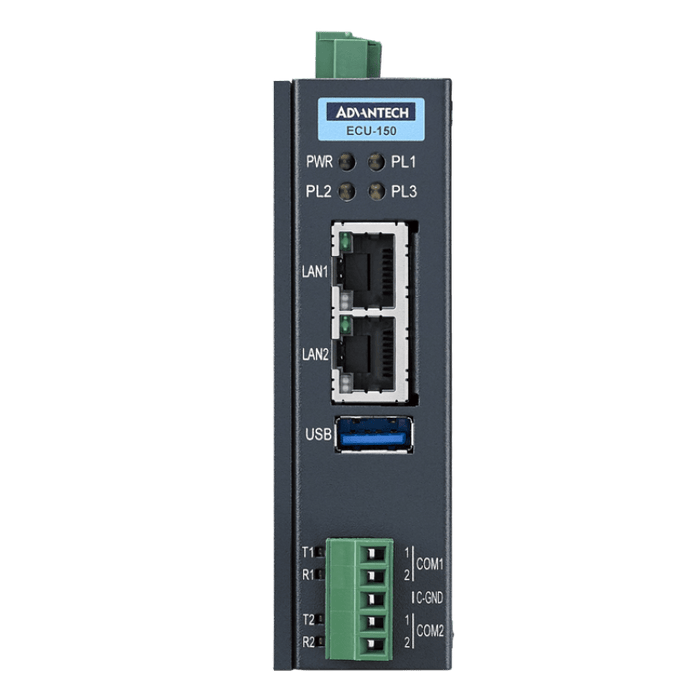

A53 1.3GHz,2xLAN,2xCOM,1xmPCIe w/EdgeLink

NXP i.?MX8M Quad Core Cortex A53 1.3G CPUDDR4 2GB RAM, 16GB eMMC for system storage2 x RS-232/485 isolated serial ports2 x 10/100/1000 Ethernet ports1 x Mini-PCIe for WIFI/Cellular/4GSupport web service for remotely on-line monitoringSupport SD card & on-line firmware updateSupport Modbus, IEC-60870-5, DNP3.0, OPC-UA, BACNet protocol ?ECU-150-12A1&ECU-150-12A1U need container EdgeLink?Support Data logger on SD card

Environment - Ingress Protection: IP30 | Environment - Isolation Voltage: 2,500 VDC | Environment - Operating Temperature: -40~70 °C (-40~158 °F) | Environment - Storage Temperature: -40~85 °C (-40~185 °F) | Environment - Vibration Protection: 1 Grms, random | Expansion Function - SIM card slot: Nano SIM card | General - Grounding Protection: Chassis grounding | General - Humidity (Storage): 5~95% RH (non-condensing) | General - Programming Language: Linux C | General - Protocol: OPC-UA Client & Server, DNP3.0 Client & Server, IEC-60870-5-104 Master & Slave, IEC-60870-5-101 Slave, Modbus RTU/TCP Master & Slave, BACNet/IP Server | Hardware - Certification: CE, FCC, UL | Hardware - CPU: NXP® ARM® Cortex™ A53 i.MX8M 1.3 GHz Quad-Core | Hardware - Expansion: 1 x Full-size mPCIe slot | Hardware - LAN: 2 x 10/100/1000 Base-T Ethernet | Hardware - LED Indicators: Power, LAN (Active, Link), Serial (Tx/Rx), Programmable | Hardware - Memory: 1 x LPDDR4 with 2 GB | Hardware - OS Support: Linux | Hardware - Power Input: 10~30 VDC | Hardware - Storage: 16 GB eMMC | Hardware - Watchdog Timer: Programmable | I/O Interface - Power Connector: 1 x 3-Pin Terminal Block | I/O Interface - Serial Ports: 2 x RS-232/485 (Terminal Block) | I/O Interface - USB Ports: 1 x USB 3.0 | Mechanical - Dimension (W x H x D): 100 x 93 x 30 mm | Mechanical - Enclosure: Aluminum housing, Steel | Mechanical - Form Factor: Passive Cooling and Front Accessible | Mechanical - Mounting: Wall, DIN-rail

• Model: ECU-150-12A
