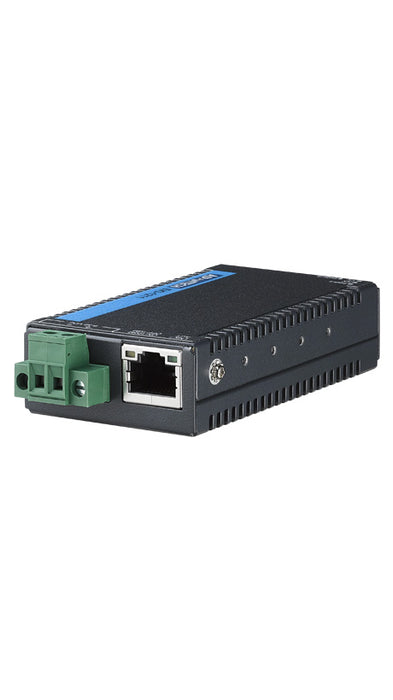

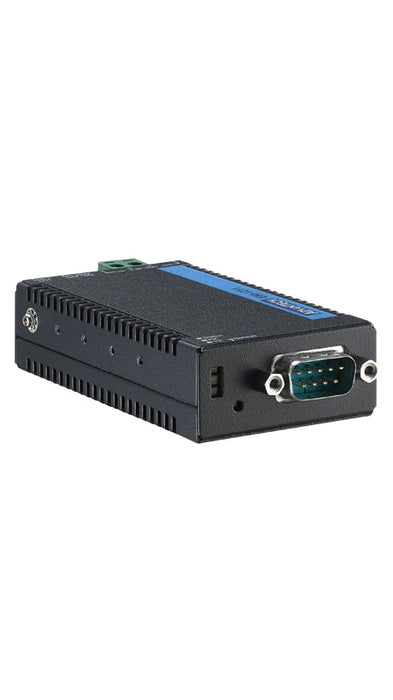

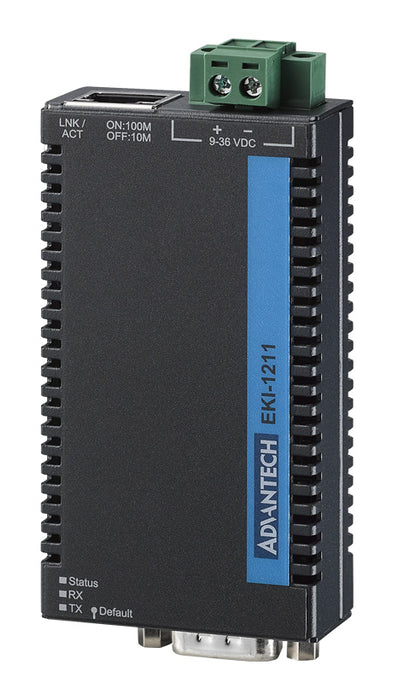

1-Port Modbus Gateway

1 x 10/100 Mbps Ethernet portIntegrates Modbus TCP and Modbus RTU/ASCII networksBaud rate: supports up to 230.4 KbpsSupports up to 16 connections per serial port under Modbus client mode and 32 sessions under Modbus server modeBuilt-in 8-kV ESD protection for all serial signalsSoftware-selectable RS-232/422/485-2w/485-4w communication

Certification - EMC: CE, FCC | Certification - EMI: EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A | Certification - EMS: EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4) | Certification - Freefall: IEC 60068-2-32 | Certification - Shock: IEC 60068-2-27 | Certification - Vibration: IEC 60068-2-6 | Environment - Operating Temperature: -40 ~ 75°C (-40 ~ 167°F) | Environment - Relative Humidity: 10~90% RH | Environment - Storage Temperature: -40 ~ 85°C (-40 ~ 185°F) | Environment - Temperature (Max. Operating): 60°C (140°F) | Environment - Temperature (Min. Operating): -10°C (14°F) | Environment - Temperature (Operating Range): -10 ~ 60°C (14 ~ 140°F) | Environment - Temperature (Storage Range): -40 ~ 85°C (-40 ~ 185°F) | Ethernet Communication - RJ-45 Port Connector Type: 1 x RJ-45 | Ethernet Communication - RJ-45 Port Number: 1 | Ethernet Communication - RJ-45 Transmission Speed: 10/100 Mbps | Mechanism - Dimensions (W x H x D): 46 x 85.1 x 21.2 mm (1.81 x 3.35 x 0.83 in.) | Mechanism - Enclosure (Metal): Metal with solid mounting hardware | Mechanism - IP Rating: IP30 | Mechanism - Mounting (DIN-rail): Yes | Mechanism - Mounting (Wall): Yes | Power - Power Consumption: 1W | Power - Power Input (DC): 9 ~ 36 VDC | Protection - Ethernet Isolation: Built-in 2.25 k VDC magnetic isolation | Protection - Serial Isolation: Built-in 8 kV ESD for all signals | Serial Communication - Baud Rate: 300~230.4 kbps | Serial Communication - RS-232: Yes | Serial Communication - RS-422: Yes | Serial Communication - RS-485: Yes | Serial Communication - Serial Port Connector Type: DB9 male | Serial Communication - Serial Port Number: 1 | Serial Communication - Serial Transmission Speed: 300 ~ 230.4 kbps | Software - Driver: Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux | Software - Operation Mode: Modbus RTU Client/Server, Modbus ASCII Client/Server | Warranty - Warranty Period: 5 years

• Model: EKI-1211-A
