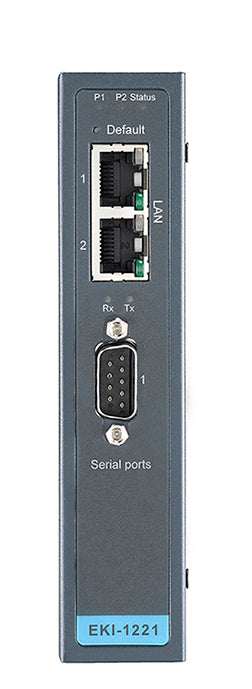

1-Port Modbus Gateway, Wide Temperature

Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancyIntegration of Modbus TCP and Modbus RTU/ASCII networksSupports up to 921.6 kbps, and any baud rate settingsupport up to 16 connections on each serial port under Modbus client mode and 64 sessions under Modbus server mode.Software selectable RS-232/422/485 communicationMounts on DIN-rail and Wall mountAutomatic RS-485 data flow control"I" models support a wide operating temperature"CI" models support isolation and a wide operating temperature

Certification - EMC: CE, FCC | Certification - EMI: EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A | Certification - EMS: EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024 | Certification - Freefall: IEC 60068-2-32 | Certification - Safety: IEC/EN 60950-1, UL 62368, Class 1 Division 2, IECEx, ATEX | Certification - Shock: IEC 60068-2-27 | Certification - Vibration: IEC 60068-2-6 | Environment - Humidity (Operating Range): 5~95% RH | Environment - Operating Humidity: 5~95% RH | Environment - Operating Temperature: -40 ~ 75°C (-40 ~ 167°F) | Environment - Storage Temperature: -40 ~ 85°C (-40 ~ 185°F) | Environment - Temperature (Operating Range): -40 ~ 75°C (-40 ~ 167°F) | Environment - Temperature (Storage Range): -40 ~ 85°C (-40 ~ 185°F) | Ethernet Communication - Ethernet Standard: IEEE 802.3 , 802.3ab , 802.3u | Ethernet Communication - RJ-45 Port Connector Type: RJ-45 | Ethernet Communication - RJ-45 Port Number: 2 | Ethernet Communication - RJ-45 Transmission Speed: 10/100 Mbps | Mechanism - Dimensions (W x H x D): 36.6 x 140 x 95 mm (1.44 x 5.51 x 3.74 in.) | Mechanism - Enclosure (Metal): Metal with solid mounting hardware | Mechanism - IP Rating: IP30 | Mechanism - Mounting (DIN-rail): Yes | Mechanism - Mounting (Wall): Yes | Mechanism - Weight: 0.48 kg | Power - Power Consumption: 3.2W | Power - Power Input (DC): 12 ~ 48 VDC, redundant dual inputs | Power - Power Operating Current: 0.7A @ 24 V | Power - Redundant Dual Inputs: Yes | Protection - Port to Port Isolation: - | Protection - Reverse Polarity: Present | Protocol Support - Ethernet: Yes | Protocol Support - Modbus ASCII: Yes | Protocol Support - Modbus RTU: Yes | Protocol Support - Modbus TCP: Yes | Serial Communication - RS-232: Yes | Serial Communication - RS-422: Yes | Serial Communication - RS-485: Yes | Serial Communication - Serial Port Connector Type: DB9 male | Serial Communication - Serial Port Number: 1 | Software - Baud Rate: 50 ~ 921.6 Kbps | Software - Configuration: Windows utility, Web Browser | Software - Driver: Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux | Software - Operation Mode: Modbus RTU Client/Server, Modbus ASCII Client/Server | Warranty - Warranty Period: 5 years

• Model: EKI-1221I-CE
