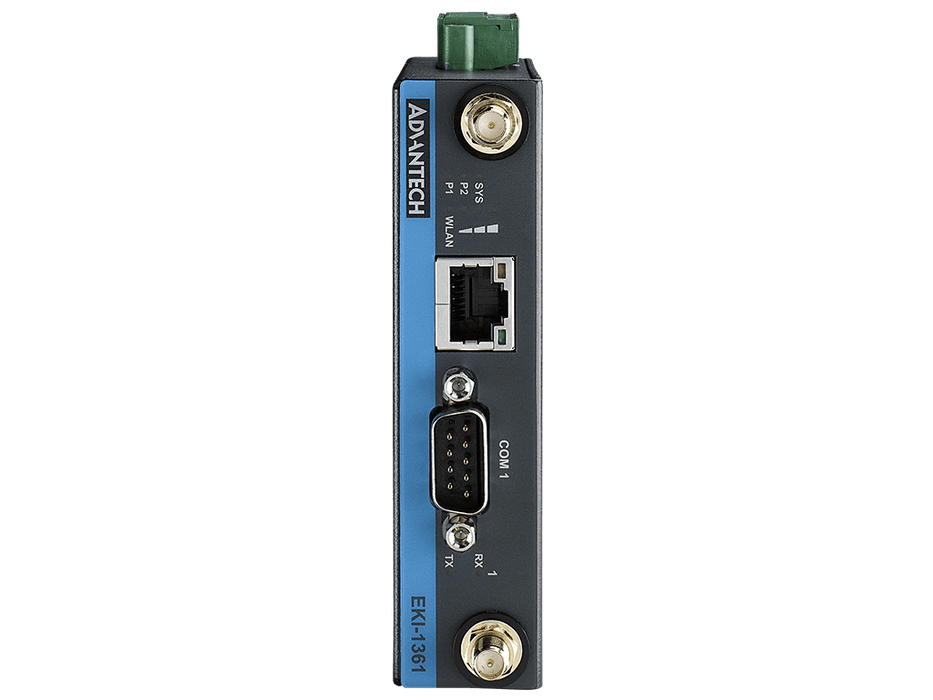

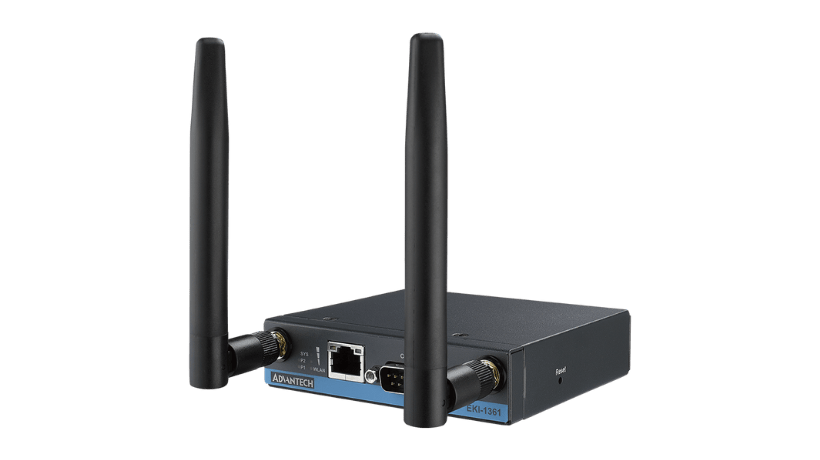

1-port RS-232/422/485 to 802.11 a/b/g/n WLAN Serial Device Server

Link any serial device to an IEEE 802.11 a/b/g/n networkSupports up to 921.6 kbps, and any baud rate settingProvides COM port redirection, TCP, UDP, and pair connection modesAllows a max. of 5 hosts to access one serial portAllows a max. of 4 hosts to be accessed as TCP client modeSupport 802.11n MIMO 2T2RWLAN transmision rate up to 300 MbpsSupports secure access with WEP, WPA/WPA2-Personal, WPA/WPA2-EnterpriseProvides Web-based configuration and Windows utility

Certification - EMC: EN 55032, EN 55024 | Certification - EMI: FCC Part 15 Subpart B (Class B) | Certification - EMS: EN 61000-6-1, EN 61000-6-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8 | Environment - Operating Temperature: -40 ~ 70°C (-40 ~ 158°F) | Environment - Relative Humidity: 10~95% RH | Environment - Storage Temperature: -40 ~ 80°C (-40 ~ 176°F) | Environment - Temperature (Operating Range): -40 ~ 70°C (-40 ~ 158°F) | Environment - Temperature (Storage Range): -40 ~ 80°C (-40 ~ 176°F) | Ethernet Communication - RJ-45 Port Connector Type: RJ-45 | Ethernet Communication - RJ-45 Port Number: 1 | Ethernet Communication - RJ-45 Transmission Speed: 10/100 Mbps | Mechanism - Dimensions (W x H x D): 30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.) | Mechanism - Enclosure (Metal): Metal shell with solid mounting kits | Mechanism - IP Rating: IP30 | Mechanism - LED Indicator: System: Power, Status WLAN: Quality, Link/Active LAN: Link/Active Serial: Tx, Rx | Mechanism - Mounting (DIN-rail): Yes | Mechanism - Mounting (Wall): Yes | Mechanism - Weight: 0.32 kg | Power - Power Consumption: Max. 2W | Power - Power Input (DC): 12 ~ 48 VDC | Power - Redundant Dual Inputs: Yes | Serial Communication - Baud Rate: 50 bps ~ 921.6 kbps, any baud rate setting | Serial Communication - Data Bits: 5, 6, 7, 8 | Serial Communication - Parity: None, Odd, Even, Space, Mark | Serial Communication - RS-232: Yes | Serial Communication - RS-422: Yes | Serial Communication - RS-485: Yes | Serial Communication - Serial Port Connector Type: DB9 male | Serial Communication - Serial Port Number: 1 | Serial Communication - Serial Signals: RS-232: TxD, RxD, CTS, RTS, DTR, DSR, DCD, RI, GND, RS-422: TxD+, TxD-, RxD+, RxD-, GND, RS-485: Data+, Data-, GND | Serial Communication - Stop Bits: 1, 1.5, 2 | Software - Configuration: Windows utility, Telnet console, Web Browser | Software - OS Support: 32-bit/64-bit Windows XP/Vista/7/8/8.1/10, Windows Server 2003/2008/2008 R2/2012/2012 R2 and Linux | Software - Protocols: ARP, ICMP, IPv4, IPv6, TCP, UDP, BOOTP, DHCP Client, Auto IP, Telnet, DNS, SNMP, HTTP, SMTP, SNTP | Software - Reboot Trigger: Built-in WDT (watchdog timer) | Software - Utility Software: Advantech Serial Device Server Configuration Utility | Warranty - Warranty Period: 5 years | Wireless Communication - Wi-Fi 2.4 GHz: Yes | Wireless Communication - Wi-Fi 5 GHz: Yes | Wireless Communication - Wi-Fi Antenna Connector Type: Reverse SMA | Wireless Communication - Wi-Fi Antenna Number: 2 (support 2T2R) | Wireless Communication - Wi-Fi Free Space Range: Open space 100 m | Wireless Communication - Wi-Fi Network Mode: Infrastructure | Wireless Communication - Wi-Fi Operation Mode: Client mode COM port redirection mode (Virtual COM) TCP/UDP server (polling) mode TCP/UDP client (event handling) mode | Wireless Communication - Wi-Fi Standard: IEEE 802.11 a/b/g/n | Wireless Communication - Wireless Security: WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise

• Model: EKI-1361-CE
