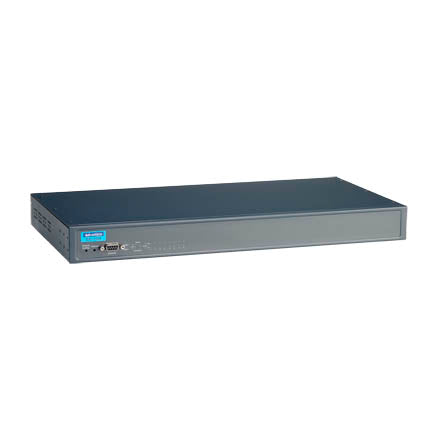

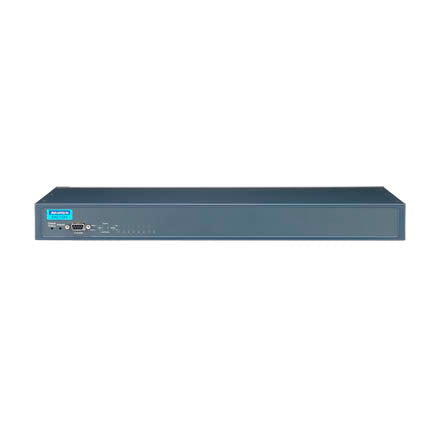

8-Port Serial Device Server, AC Input, DB9, Rackmount

Supports up to 976.5 kbps, and any baud rate settingProvides 2 x 10/100/1000 Mbps Ethernet ports for LAN redundancyProvides COM port redirection (Virtual COM), TCP and UDP operation modesProvides rich configuration methods: Windows utility, Telnet console, Web Browser, and serial consoleBuilt-in 15 KV ESD protection for all serial signals8-port RS-232/422/485 serial communicationSNMP MIB-II for network managementBuilt-in buzzer for easy locationStandard 1U rackmount size"I" models support a wide operating temperature

Certification - EMC: CE, FCC | Certification - EMI: EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A | Certification - EMS: EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024 | Certification - Freefall: IEC 60068-2-32 | Certification - Safety: UL 60950-1, UL 62368 | Certification - Vibration: IEC 60068-2-6 | Environment - Operating Temperature: -10 ~ 60°C (14 ~ 140°F) | Environment - Storage Temperature: -20 ~ 80°C (-4 ~ 176°F) | Environment - Temperature (Max. Operating): 60°C (140°F) | Environment - Temperature (Min. Operating): -10°C (14°F) | Ethernet Communication - Ethernet Standard: IEEE 802.3, 802.3u, 802.3ab | Ethernet Communication - RJ-45 Port Connector Type: RJ-45 | Ethernet Communication - RJ-45 Port Number: 2 | Ethernet Communication - RJ-45 Transmission Speed: 10/100/1000 Mbps | Mechanism - Dimensions (W x H x D): 438 x 43.6 x 259.2 mm (17.24 x 1.71 x 10.2 in.) | Mechanism - IP Rating: IP30 | Mechanism - Weight: 2.9 kg | Power - Power Consumption: 5.6W | Power - Power Input (AC): 100 ~ 240 VAC | Power - Power Operating Current: 0.3A @ 110 VAC ; 0.2A @ 220 VAC | Protection - Reverse Polarity: Present | Serial Communication - Baud Rate: 50 ~ 921.6 Kbps | Serial Communication - RS-232: Yes | Serial Communication - RS-422: Yes | Serial Communication - RS-485: Yes | Serial Communication - Serial Port Connector Type: DB9 | Serial Communication - Serial Port Number: 8 | Serial Communication - Serial Transmission Speed: 50 ~ 921.6 Kbps | Software - Configuration: Windows utility, Telnet console, Web Browser | Software - Driver: Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux | Software - Operation Mode: Virtual COM, TCP/UDP server TCP/UDP client | Warranty - Warranty Period: 5 years

• Model: EKI-1528-CE
