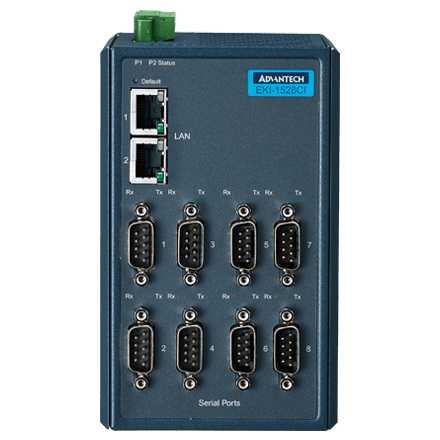

8-port RS-232/422/485 Serial Device Server - Wide Temperature

Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancyProvides COM port redirection (Virtual COM), TCP and UDP operation modesSupports up to 921.6 kbps, and any baud rate settingAllows a max. of 5 hosts to access one serial portAllows a max. of 16 hosts to be accessed as TCP client modeBuilt-in 15 KV ESD protection for all serial signalsProvides rich configuration methods including Windows utility, Telnet console, and Web BrowserSupports 32-bit/64-bit Windows 2000/XP/Vista/7/8/8.?1, Windows Server 2003/2008/2012/2016, Windows CE 5.0, and LinuxAutomatic RS-485 data flow controlSupports line to line 4 KV, line to ground 8 KV surge protection

Certification - EMC: CE, FCC | Certification - EMS: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) | Certification - Freefall: IEC 60068-2-32 | Certification - Safety: UL 60950-1 | Certification - Shock: IEC 60068-2-27 | Certification - Vibration: IEC 60068-2-6 | Environment - Operating Humidity: 10~95% RH | Environment - Operating Temperature: -40 ~ 70°C (-40 ~ 158°F) | Environment - Storage Temperature: -40 ~ 85°C (-40 ~ 185°F) | Environment - Temperature (Max. Operating): 70°C (158°F) | Environment - Temperature (Min. Operating): -40°C | Ethernet Communication - Ethernet Standard: IEEE 802.3 , 802.3u | Ethernet Communication - RJ-45 Port Connector Type: RJ-45 | Ethernet Communication - RJ-45 Port Number: 2 | Ethernet Communication - RJ-45 Transmission Speed: 10/100 Mbps | Mechanism - Dimensions (W x H x D): 86.6 x 140 x 104 mm (3.41 x 5.51 x 3.74 in.) | Mechanism - IP Rating: IP30 | Mechanism - Mounting (DIN-rail): Yes | Mechanism - Mounting (Wall): Yes | Mechanism - Weight: 9 kg | Power - Power Consumption: 5.6W | Power - Power Input (DC): 12 ~ 48 VDC | Power - Power Operating Current: 1A @ 24 VDC | Power - Redundant Dual Inputs: Yes | Protection - Port to Port Isolation: Serial to Ethernet 2 kV; Serial to Power 2 kV; Ethernet to Power 1.5 kV | Protection - Reverse Polarity: Present | Serial Communication - Baud Rate: 50 ~ 921.6 Kbps | Serial Communication - RS-422: Yes | Serial Communication - RS-485: Yes | Serial Communication - Serial Port Connector Type: DB9 male | Serial Communication - Serial Port Number: 8 | Serial Communication - Serial Transmission Speed: 50 ~ 921.6 Kbps | Software - Configuration: Windows utility, Telnet console, Web Browser | Software - Driver: Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux | Software - Operation Mode: COM port redirection mode (Virtual COM), TCP/UDP server (polling) mode, TCP/UDP client (event handling) mode, | Warranty - Warranty Period: 5 years

• Model: EKI-1528I-DR-AE
