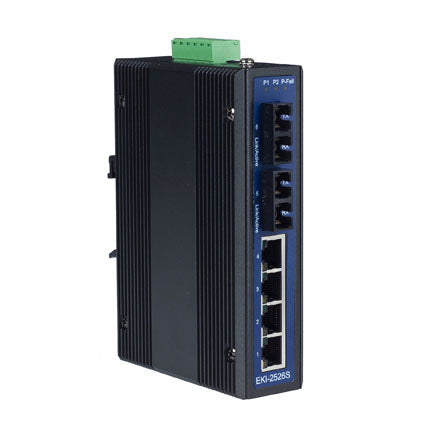

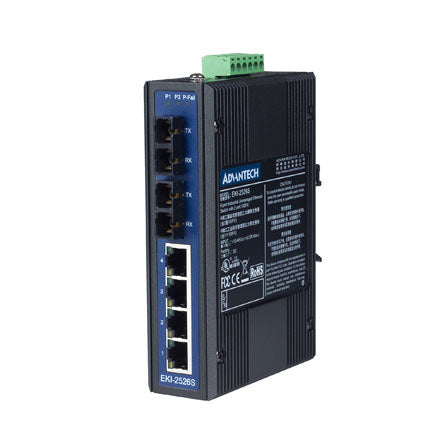

4+2 SC Single-mode Unmanaged Ethernet Switch

Provides 4 x 10/100 Mbps Ethernet ports with RJ45 connectorProvides 2 x 100 Mbps Single-mode SC type fiber optic portSupports full/half duplex flow controlSupports MDI/MDI-X auto crossoverProvides Redundant 12 ~ 48 VDC power inputProvides flexible mounting: DIN-rail and Wall mount

Certification - EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A | Certification - EMS: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8 | Certification - Safety: UL/cUL 60950-1, Class I Division 2 | Environment - Operating Temperature: -10 ~ 60°C (14 ~ 140°F) | Environment - Storage Temperature: -40 ~ 85°C (-40 ~ 185°F) | Environment - Temperature (Max. Operating): 60°C (140°F) | Environment - Temperature (Min. Operating): -10°C (14°F) | Ethernet Communication - Fiber Port Connector Type: SC Type | Ethernet Communication - Fiber Port Interface: Single-Mode | Ethernet Communication - Fiber Port Number: 2 | Ethernet Communication - Fiber Transmission Distance: 30 km | Ethernet Communication - Fiber Transmission Speed: 100 Mbps | Ethernet Communication - RJ-45 Port Connector Type: RJ-45 | Ethernet Communication - RJ-45 Port Number: 4 | Ethernet Communication - RJ-45 Transmission Distance: 100 m | Ethernet Communication - RJ-45 Transmission Speed: 10/100 Mbps | Mechanism - Dimensions (W x H x D): 37 x 140 x 95 mm (1.46 x 5.51 x 3.74 in.) | Mechanism - Enclosure (Plastic): - | Mechanism - IP Rating: IP30 | Mechanism - Mounting (DIN-rail): Yes | Mechanism - Mounting (Panel): - | Mechanism - Mounting (Pole Mount): - | Mechanism - Mounting (Rack Mount): - | Mechanism - Mounting (Stack): - | Mechanism - Mounting (Wall): Yes | PoE Information - PoE Budget: - | PoE Information - PoE Output: - | PoE Information - PoE Port Number: - | PoE Information - Support PoE: No | Power - Power Connector Type: 6-pin removable screw terminal | Power - Power Consumption: 6.45W | Power - Power Input (AC): - | Power - Power Input (Battery): - | Power - Power Input (DC): 12 ~ 48 VDC | Power - Power Input (PoE): - | Power - Redundant Dual Inputs: Yes | Protection - Overload Current: Present | Protection - Reverse Polarity: Present | Warranty - Warranty Period: 5 years

• Model: EKI-2526S-AE
