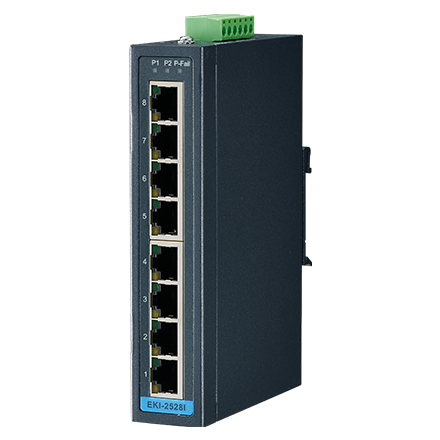

8 10/100Mbps Unmanaged Ethernet Switch, -40~75?

Provides 5/8 Fast Ethernet ports with Auto MDI/MDI-XSupports 10/100 Mbps Auto-NegotiationProvides compact size with DIN-rail/Wall mount, and IP30 metal mechanismSupports redundant 12 ~ 48 VDC power input and P-Fail relaySupports wide operating temperatures from -40 to 75°C

Certification - EMI: CE, FCC Class A | Certification - EMS: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8 | Certification - Safety: UL 60950-1 | Environment - Operating Temperature: -40 ~ 75°C (-40 ~ 167°F) | Environment - Storage Temperature: -40 ~ 85°C (-40 ~ 185°F) | Environment - Temperature (Max. Operating): 75°C (167°F) | Environment - Temperature (Min. Operating): -40°C (-40°F) | Environment - Temperature (Operating Range): -40 ~ 75°C (-40 ~ 167°F) | Environment - Temperature (Storage Range): -40 ~ 85°C (-40 ~ 185°F) | Ethernet Communication - Fiber Port Connector Type: - | Ethernet Communication - Fiber Port Interface: - | Ethernet Communication - Fiber Port Number: - | Ethernet Communication - Fiber Transmission Distance: - | Ethernet Communication - Fiber Transmission Speed: - | Ethernet Communication - RJ-45 Port Connector Type: RJ-45 | Ethernet Communication - RJ-45 Port Number: 8 | Ethernet Communication - RJ-45 Transmission Distance: 100 m | Ethernet Communication - RJ-45 Transmission Speed: 10/100 Mbps | General - Ethernet Port Count: 8 | General - Mounting: DIN, Panel | General - Power: 12-48VDC | General - Technology: Ethernet | General - Temperature: -40 to 75C | General - Unmanaged: Yes | Mechanism - Dimensions (W x H x D): 30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.) | Mechanism - Enclosure (Plastic): - | Mechanism - IP Rating: IP30 | Mechanism - Mounting (DIN-rail): Yes | Mechanism - Mounting (Panel): - | Mechanism - Mounting (Pole Mount): - | Mechanism - Mounting (Rack Mount): - | Mechanism - Mounting (Stack): - | Mechanism - Mounting (Wall): Yes | Place of Production - Place of production: China | PoE Information - PoE Budget: - | PoE Information - PoE Output: - | PoE Information - PoE Port Number: - | PoE Information - Support PoE: No | Power - Power Connector Type: 6-pin removable screw terminal | Power - Power Consumption: 4.71W | Power - Power Input (AC): - | Power - Power Input (Battery): - | Power - Power Input (DC): 12 ~ 48 VDC | Power - Power Input (PoE): - | Power - Redundant Dual Inputs: Yes | Protection - Overload Current: Present | Protection - Reverse Polarity: Present | Warranty - Warranty Period: 5 years

• Model: EKI-2528I-BE
