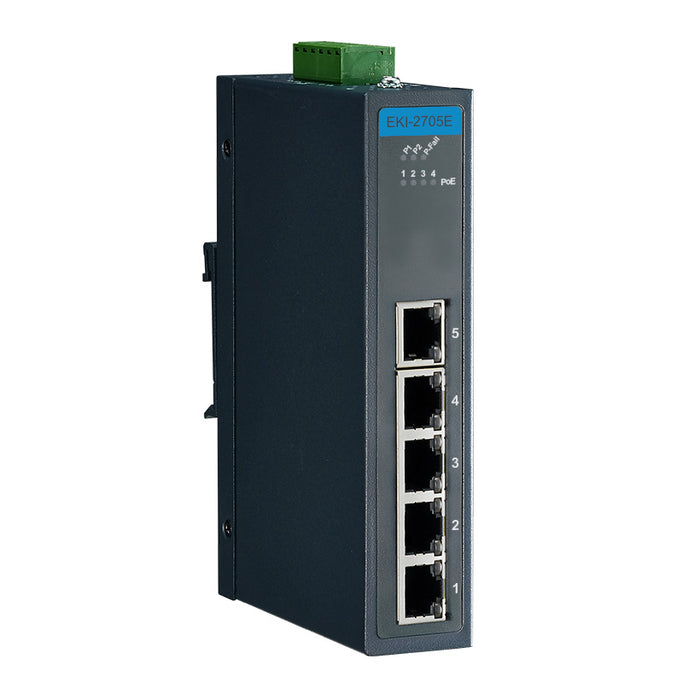

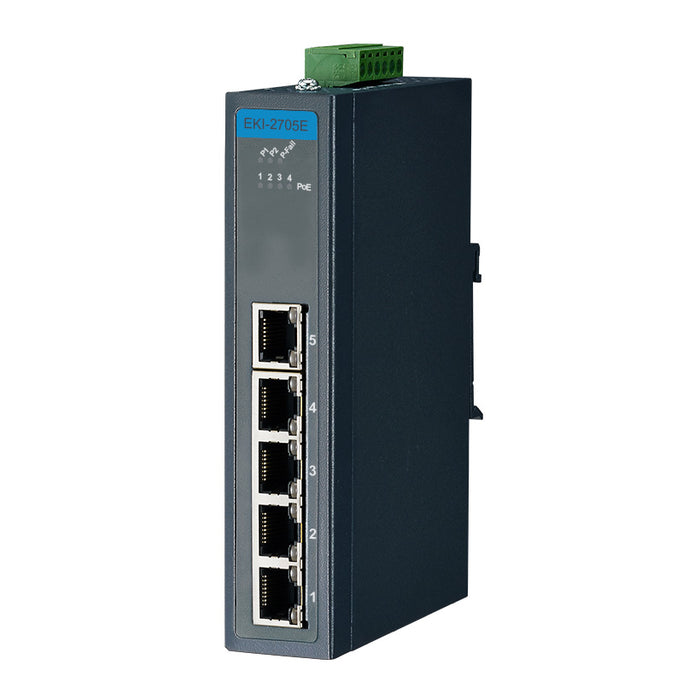

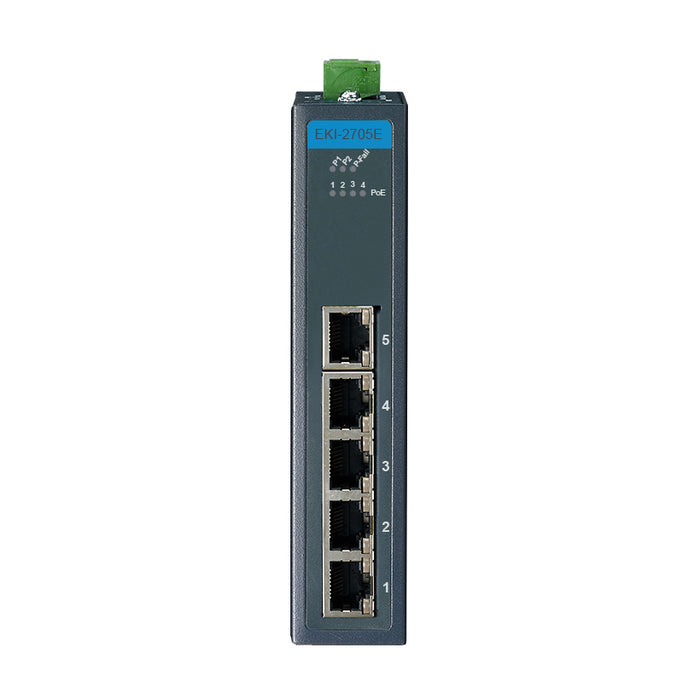

EKI-2705E-1GPI-A 5FE Unmanaged Ind. PoE Switch W/T
5FE Unmanaged Ind. PoE Switch W/T
Supports 10/100 Mbps Auto NegotiationSupports jumbo frame transmission up to 9 kbytesDIN-rail with IP30 metal mechanismRedundant 24~48 VDC power input4 x IEEE 802.3 af/at PoE ports + 1 x Gigabit Copper
Certification - EMI: CE, FCC Class A | Certification - EMS: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) | Certification - Ethernet Standard: IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z | Certification - Freefall: IEC 60068-2-32 | Certification - Safety: UL 62368 | Certification - Shock: IEC 60068-2-27 | Certification - Vibration: IEC 60068-2-6 | Environment - Operating Temperature: -40 ~ 75°C (-40 ~ 167°F) | Environment - Relative Humidity: 10~95% | Environment - Storage Temperature: -40 ~ 85°C (-40 ~ 185°F) | Environment - Temperature (Operating Range): -40 ~ 75°C (-40 ~ 167°F) | Environment - Temperature (Storage Range): -40 ~ 85°C (-40 ~ 185°F) | Ethernet Communication - RJ-45 Port Connector Type: 5 x RJ-45 | Ethernet Communication - RJ-45 Transmission Distance: 100 m | Ethernet Communication - RJ-45 Transmission Speed: 10/100 Mbps ; 10/100/1000 Mbps | Interface - Port Number: 5 | Mechanism - Dimensions (W x H x D): 30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.) | Mechanism - Enclosure (Metal): Metal | Mechanism - IP Rating: IP30 | Mechanism - Mounting: DIN-rail, Wall | Mechanism - Weight: 0.45 kg (1.0 lb) | MTBF - Method: Telcordia(Relax), GB | MTBF - Time: 1,697,086 hours | PoE Information - PoE Port Number: 4 | Power - Power Connector Type: 6-pin removable screw terminal (power & relay) | Power - Power Consumption: Max 2W | Power - Power Input (DC): 24 ~ 48 VDC | Power - Power Operating Current: 1A @ 24 VDC | Switch Properties - Jumbo Frame: 9,216 bytes | Switch Properties - MAC Table Size: 2K | Switch Properties - Packet Buffer Size: 1M bit | Warranty - Warranty Period: 5 years
Datasheet- Model: EKI-2705E-1GPI-A
