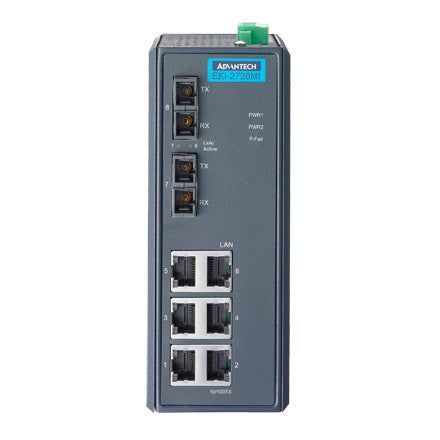

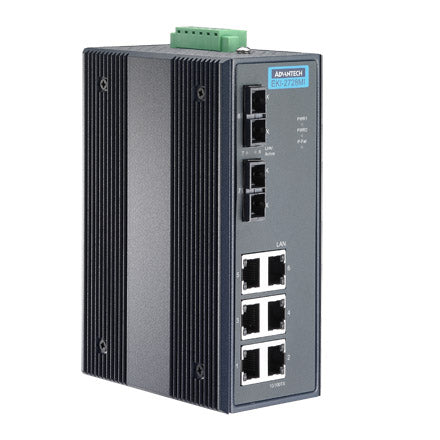

6+2G SC Multi-Mode Unmanaged Ethernet Switch

Provides 6 x 10/100/1000 Mbps Ethernet port with RJ45 connectorProvides 2 x 1000 Mbps fiber port with SC type connector for 1000Base-SX/LX deviceSupports MDI/MDI-X auto crossoverSupports Auto-NegotiationSupports redundant 12 ~ 48 VDC and 24VAC power inputProvides flexible mounting: DIN-rail and Wall mountProvides Link Fault Pass-through (LFP)Jumbo Frame: 9216 bytes

Certification - EMI: CE, FCC Class A | Certification - EMS: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) | Certification - Safety: - | Environment - Operating Temperature: -10 ~ 60°C (14 ~ 140°F) | Environment - Storage Temperature: -40 ~ 85°C (-40 ~ 185°F) | Environment - Temperature (Max. Operating): 60°C (140°F) | Environment - Temperature (Min. Operating): -10°C (14°F) | Ethernet Communication - Fiber Port Connector Type: SC Type | Ethernet Communication - Fiber Port Interface: Multi-Mode | Ethernet Communication - Fiber Port Number: 2 | Ethernet Communication - Fiber Transmission Distance: Up to 550 m | Ethernet Communication - Fiber Transmission Speed: 1000 Mbps | Ethernet Communication - RJ-45 Port Connector Type: RJ-45 | Ethernet Communication - RJ-45 Port Number: 6 | Ethernet Communication - RJ-45 Transmission Distance: 100 m | Mechanism - Dimensions (W x H x D): 59.6 x 152 x 105 mm (2.35 x 5.98 x 4.13 in.) | Mechanism - Enclosure (Plastic): - | Mechanism - IP Rating: IP30 | Mechanism - Mounting (DIN-rail): Yes | Mechanism - Mounting (Panel): - | Mechanism - Mounting (Pole Mount): - | Mechanism - Mounting (Rack Mount): - | Mechanism - Mounting (Stack): - | Mechanism - Mounting (Wall): Yes | PoE Information - PoE Budget: - | PoE Information - PoE Output: - | PoE Information - PoE Port Number: - | PoE Information - Support PoE: No | Power - Power Connector Type: 6-pin removable screw terminal (power & relay) | Power - Power Consumption: Max. 7W | Power - Power Input (AC): 24 VAC | Power - Power Input (Battery): - | Power - Power Input (DC): 12 ~ 48 VDC | Power - Power Input (PoE): - | Power - Power Operating Current: 1A @ 24 VDC | Power - Redundant Dual Inputs: Yes | Protection - Overload Current: Present | Protection - Reverse Polarity: Present | Warranty - Warranty Period: 5 years

• Model: EKI-2728M-BE
