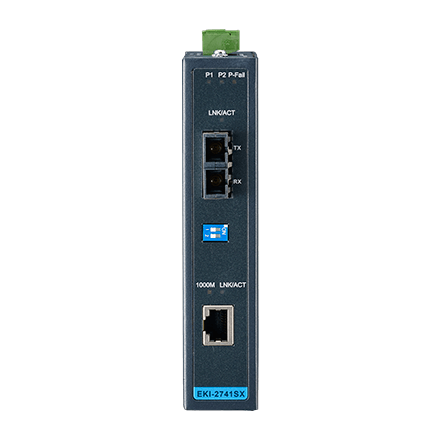

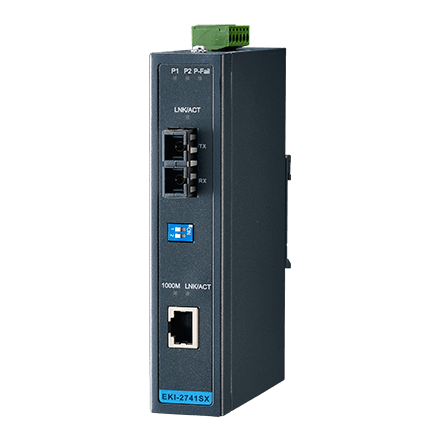

Media Converter, 1000Mbps, Multimode 850nm, SC

Provides 1 x 1000 Mbps Ethernet port with RJ45 connectorProvides 1 x 1000 Mbps fiber port with SC or SFP (mini-GBIC) type connector for 1000Base-SX/LX deviceProvides DIP switch for full/half duplex settingSupports MDI/MDI-X auto crossoverSupports Auto-NegotiationSupports redundant 12 ~ 48 VDC power inputProvides flexible mounting: DIN-rail and Wall mountProvides Link Fault Pass-through (LFP)Jumbo Frame: 9K bytes

Environment - Operating Temperature: -10 ~ 60°C (14 ~ 140°F) | Ethernet Communication - RJ-45 Port Connector Type: 1 x RJ-45 and 1 x SC type fiber connector | Ethernet Communication - RJ-45 Transmission Distance: Up to 100 m | Ethernet Communication - RJ-45 Transmission Speed: 1000 Mbps | Fiber General - Max. Distance Range: < 2km | Fiber General - Optical Connector: SC | Fiber General - Optical Mode: Multi-mode | Power - Power Input (DC): 12 ~ 48 VDC, redundant dual inputs

• Model: EKI-2741SX-BE
