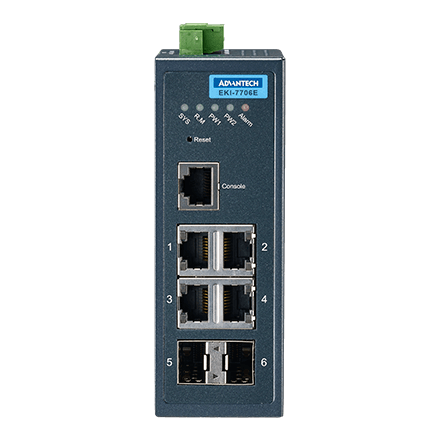

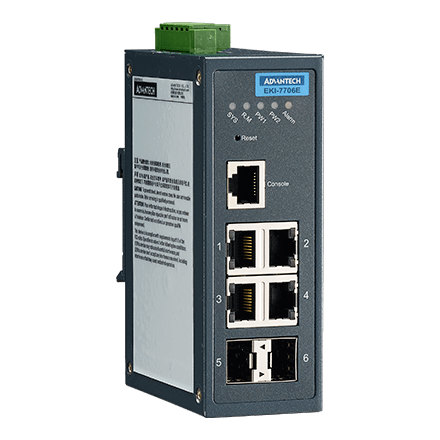

4+2G port Gigabit Managed Ethernet Switch with 4 PoE+ port,-40~75?

4 Fast Ethernet ports + 2 SFP portsSFP socket for easy and flexible fiber expansionRedundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)IXM function enables fast deploymentSecurity: 802.1x (Port-based, MD5/TLS/TTLS/PEAP encryption), RADIUSManagement: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB-40 ~ 85 °C wide-range operating temperatureDual 12~48 VDC power input and 1 relay output

Certification - EMC: EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) | Certification - EMI: CE, FCC Class A | Certification - EMS: - | Certification - Ethernet Standard: IEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1w | Certification - Freefall: IEC 60068-2-32 | Certification - Safety: UL 61010-2-201, EN 62368-1 (LVD) | Certification - Shock: IEC 60068-2-27 | Certification - Vibration: IEC 60068-2-6 | Environment - Humidity (Operating Range): - | Environment - Operating Humidity: - | Environment - Operating Temperature: -40 ~ 75°C (-40 ~ 167°F) | Environment - Relative Humidity: 10~95% | Environment - Storage Temperature: -40 ~ 85°C (-40 ~ 185°F) | Environment - Temperature (Max. Operating): 75°C (167°F) | Environment - Temperature (Min. Operating): -40°C (-40°F) | Environment - Temperature (Operating Range): -40 ~ 75°C (-40 ~ 167°F) | Environment - Temperature (Storage Range): -40 ~ 85°C (-40 ~ 185°F) | Ethernet Communication - Ethernet Standard: - | Ethernet Communication - Fiber Port Connector Type: SFP cage | Ethernet Communication - Fiber Port Interface: SFP | Ethernet Communication - Fiber Port Number: 2 | Ethernet Communication - Fiber Port Optical Mode: - | Ethernet Communication - Fiber Transmission Distance: Up to 110 km | Ethernet Communication - Fiber Transmission Speed: 10/100/1000 Mbps | Ethernet Communication - RJ-45 Port Connector Type: RJ-45 | Ethernet Communication - RJ-45 Port Number: 4 | Ethernet Communication - RJ-45 Transmission Distance: 100 m | Ethernet Communication - RJ-45 Transmission Speed: 10/100 Mbps | Ethernet Communication - RJ-45/SFP Combo Port Number: - | Ethernet Communication - RJ-45/SFP Combo Port Speed: - | Mechanism - Dimensions (W x H x D): 43 x 120 x 84 mm | Mechanism - Enclosure (Plastic): - | Mechanism - IP Rating: IP30 | Mechanism - Mounting (DIN-rail): Yes | Mechanism - Mounting (Panel): - | Mechanism - Mounting (Pole Mount): - | Mechanism - Mounting (Rack Mount): - | Mechanism - Mounting (Stack): - | Mechanism - Mounting (Wall): Yes | Mechanism - Weight: 0.45 kg (1.0 lb) | MTBF - Method: Telcordia, GB | MTBF - Time: - | PoE Information - PoE Budget: - | PoE Information - PoE Output: - | PoE Information - PoE Port Number: - | PoE Information - Support PoE: - | Power - Power Connector Type: 6-pin removable screw terminal (power & relay) | Power - Power Consumption: 5.28W | Power - Power Input (Battery): - | Power - Power Input (DC): 12 ~ 48 VDC | Power - Power Input (PoE): - | Power - Power Operating Current: 0.11A @ 48Vdc | Power - Redundant Dual Inputs: - | Protection - Overload Current: - | Protection - Reverse Polarity: Present | Switch Properties - Jumbo Frame: - | Switch Properties - MAC Table Size: 8K | Switch Properties - Packet Buffer Size: 4.1M bit | Switch Properties - Switch Fabric Speed: 4.8Gbps | Warranty - Warranty Period: 5 years

• Model: EKI-7706E-2FI-AE
