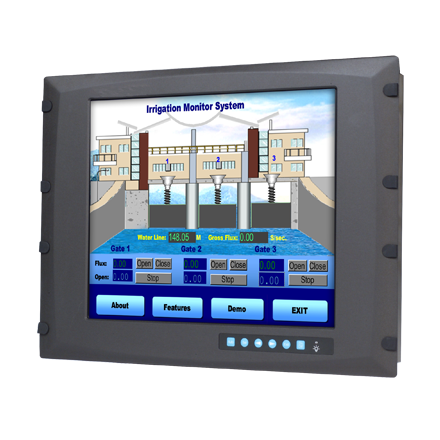

FPM-3171G-R3BE 17" SXGA Industrial Monitor with Resistive Touchscreen, Direct-VGA and DVI Ports, and Wide Operating Temperature Range
17" SXGA Industrial Monitor with Resistive Touchscreen, Direct-VGA and DVI Ports, and Wide Operating Temperature Range
17"SXGA TFT LED LCD with 50,000 backlight life timeRobust design with stainless steel chassis and aluminum front panelAnti-glare screen with tempered glass and IP65 certified front panelLockable OSD control pad on rear coverSupports industrial 24VDC power inputSupports panel, wall, desktop, rack or VESA arm mountingSupports 8U pre-drill Rackmount mounting hole
Environment - Ingress Protection: Front Panel IP65 | Environment - Operating Temperature: -20~60 °C (-4~140 °F) | Environment - Storage Humidity: 10~95% RH (non-condensing) | Environment - Storage Temperature: -30~80 °C (-22~176 °F) | Environment - Vibration Protection: 1 Grms, random | Hardware - Certification: CB, UL, CE, FCC Class A, CCC, BSMI, Energy Star | Hardware - OS Support: Microsoft® Windows 2000,Microsoft® Windows Vista, Microsoft® Windows 7, Microsoft® Windows 8,Microsoft® Windows XP, Microsoft® Windows XPe, Microsoft® Windows CE, Linux,Microsoft® Windows 10 LTSB | Hardware - Power Input: Phoenix Jack: 24 VDC, DC Jack: 12 VDC | Hardware - Video Port: VGA, DVI-D | I/O Interface - Power Connector: 1 x Phoenix Jack | LCD Display - Backlight Life (hrs): 50,000 | LCD Display - Display Size: 17" | LCD Display - Luminance (cd/m2): 350 | LCD Display - Max. Resolution: 1280 x 1024 | LCD Display - Viewing Angle (H/V°): 160/140 | Mechanical - Dimension (W x H x D): 482 x 354.8 x 63.5 mm | Mechanical - Enclosure: Aluminum with hard anodizing coating, Stainless steel with ground isolation protection | Mechanical - Mounting: Stand, Wall, VESA, Panel | Mechanical - Weight (Net): 9.25 kg (20.39 lb) | Touchscreen - Touch Type: 5-wire resistive
Datasheet- Model: FPM-3171G-R3BE
