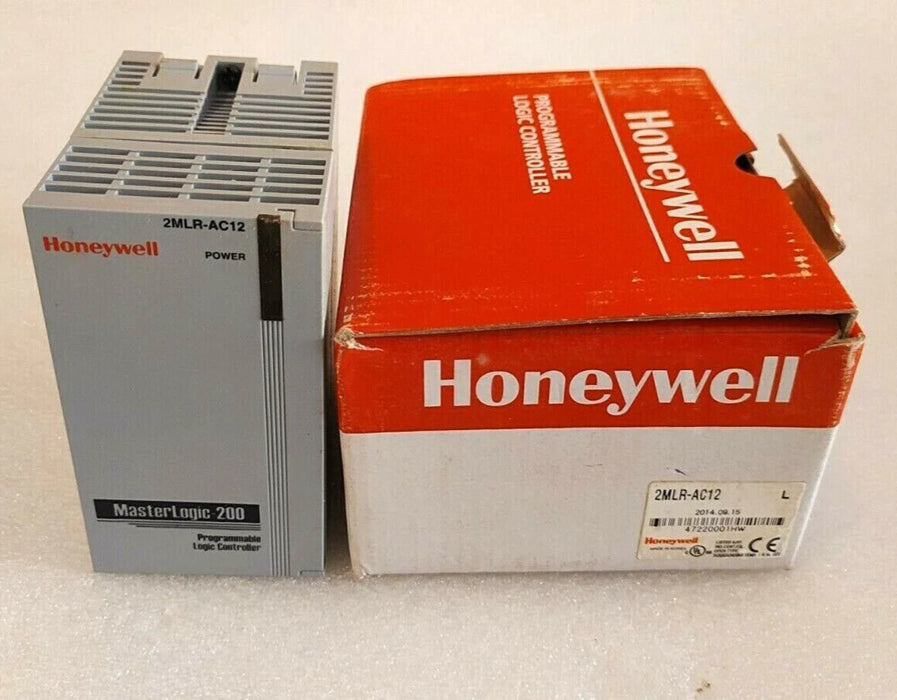

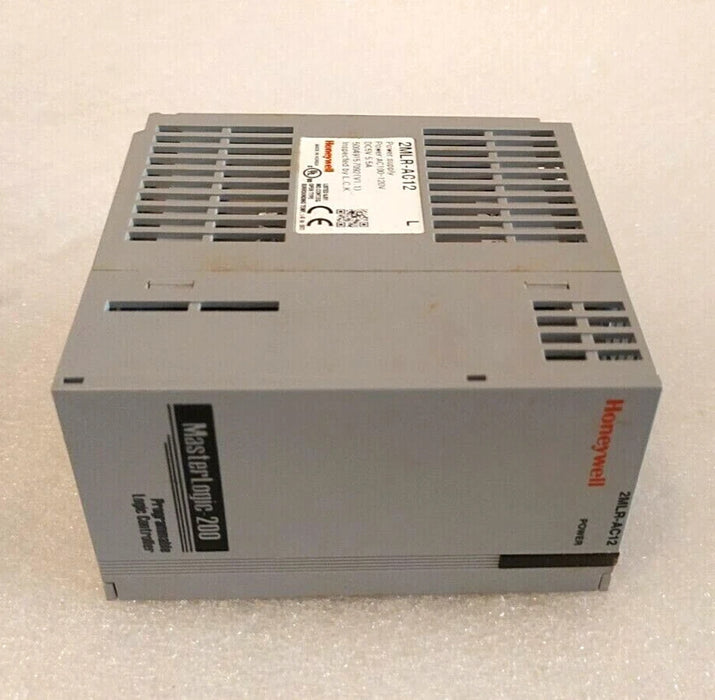

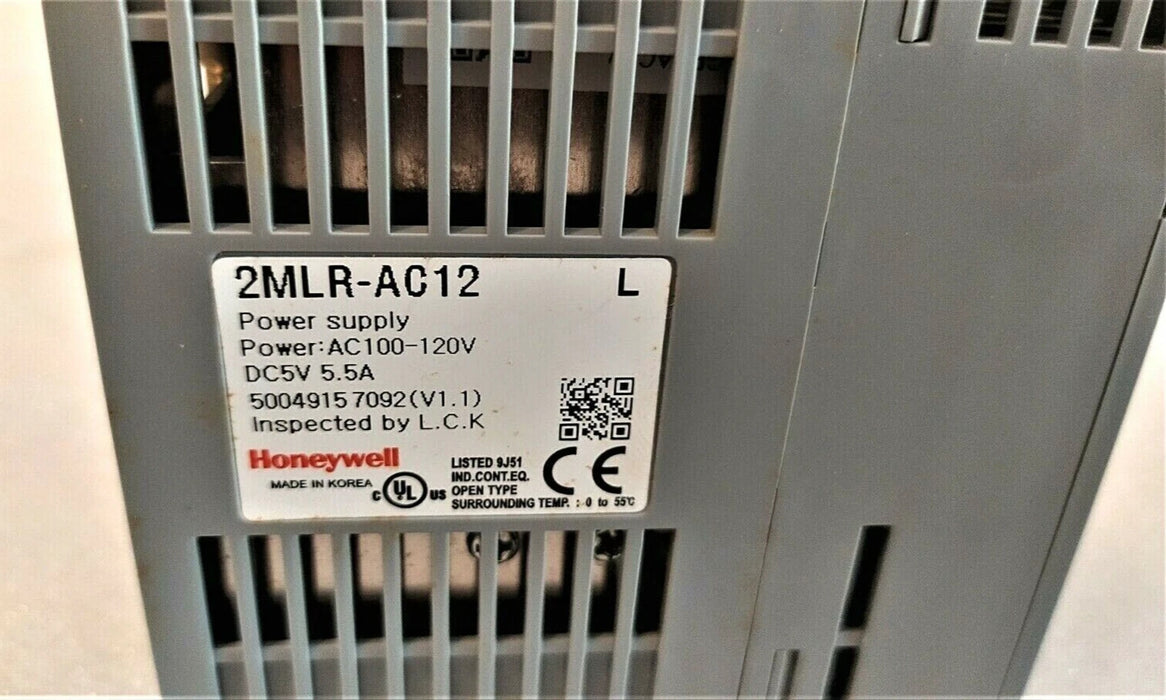

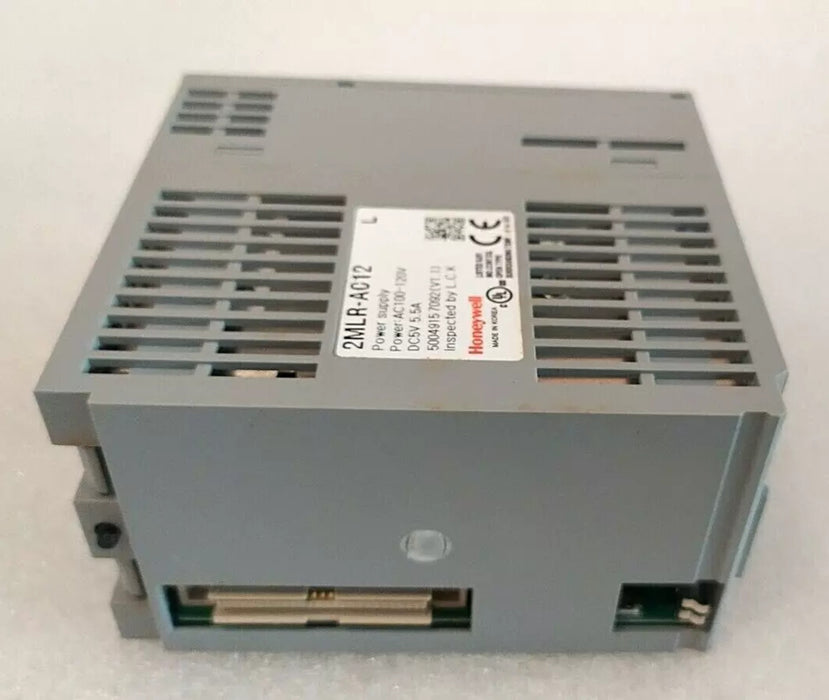

The Honeywell 2MLR-AC12 is a rugged, 110 VAC redundant power module designed for MasterLogic-200 and ML200R PLC platforms. Delivering stable 5 V DC at 5.5 A, it features a wide input range (85–132 VAC), built-in fault protection, hot-swappable redundancy, and visual status via LED indicators. Packaged in a compact 55 × 95 × 90 mm chassis, it ensures reliable power delivery and seamless integration into industrial automation systems.

Model: 2MLR‑AC12

✅ Applications:

• Redundant power source for MasterLogic-200/200R PLC systems

• Ideal for autonomous industrial automation, OEM controller units

• Ensures system uptime and reliability in process control environments

Key Specifications:

• Input Voltage: 110 VAC (range 85–132 VAC), 50/60 Hz

• Output Power: 5 VDC at 5.5 A (max 27.5 W)

• Efficiency: ≥ 65%

• Inrush Current: Peak ≤ 20 A (≤ 8 ms)

• Protections: Built-in slow-blow fuse; over-current triggers (6–13 A)

• Run Relay Output: Form-C contact, 24 VDC @ 0.5 A + LED indicator

• Redundancy: Hot-swappable with MasterLogic redundant power rails

• Dimensions: 55 × 98 × 110 mm

• Weight: ~0.75 lb (≈340 g)
