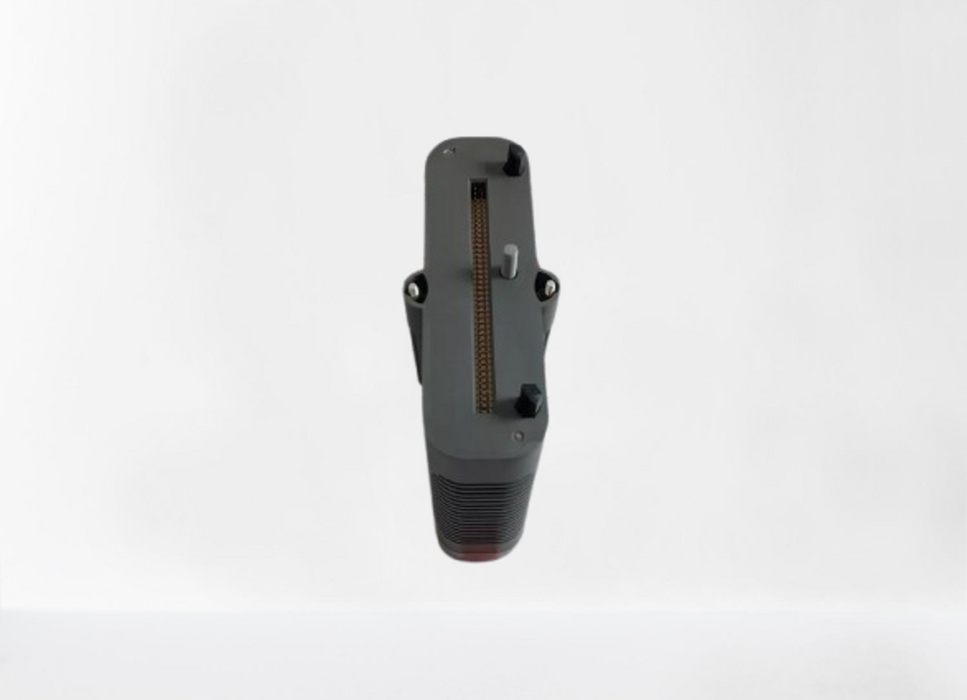

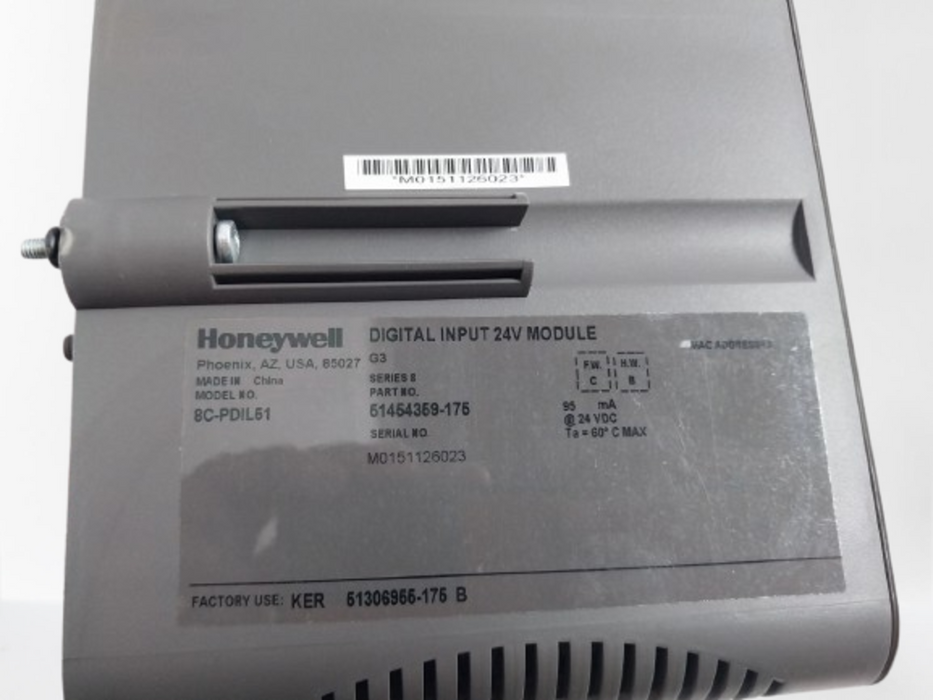

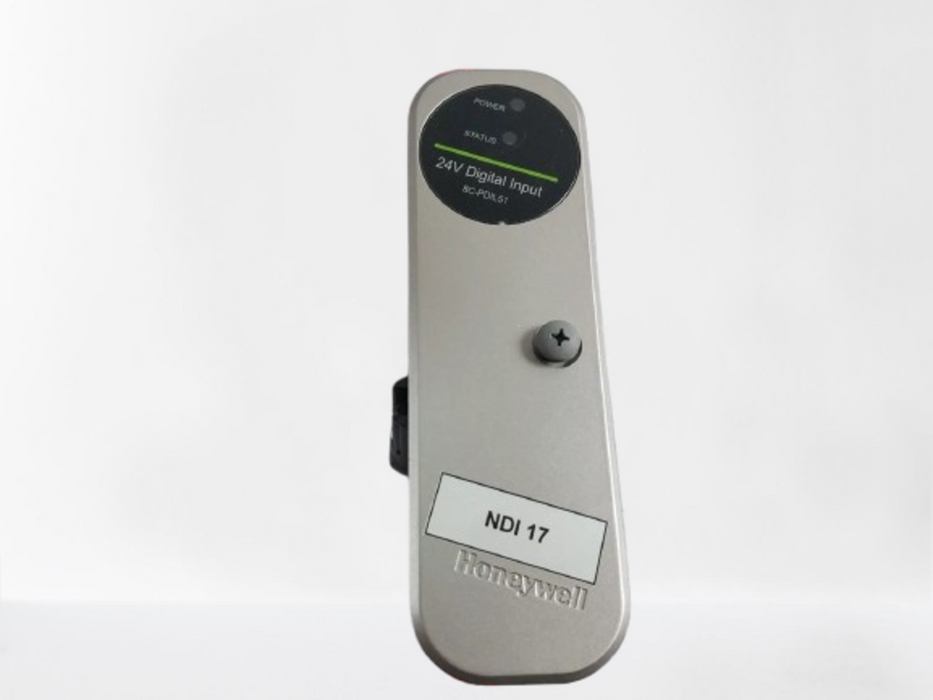

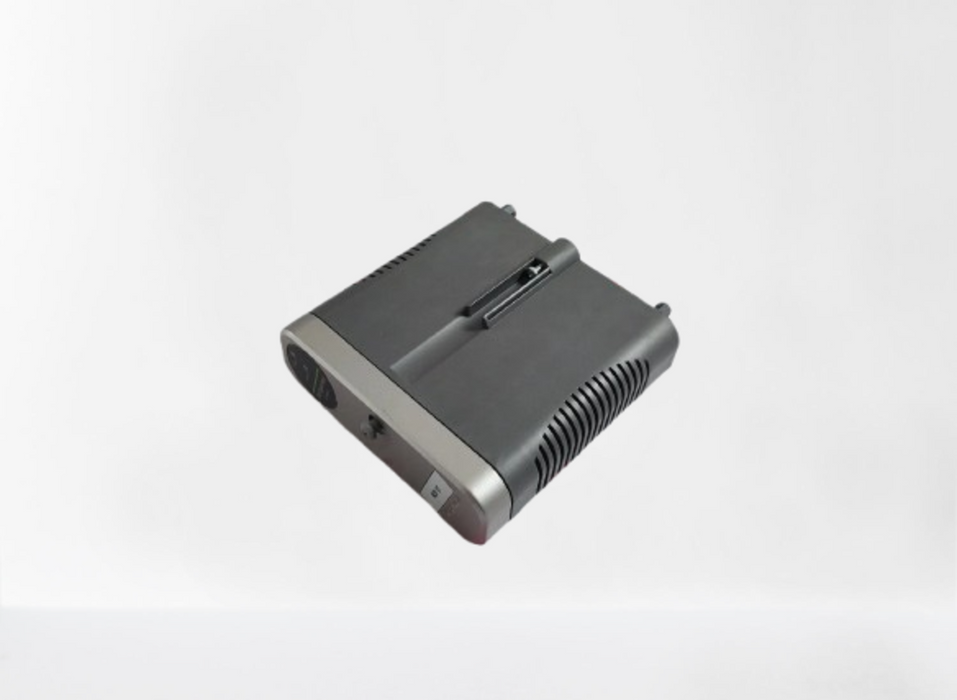

Honeywell 8C-PDIL51 (51454359-175) is a 32-channel 24V DC digital input module designed for industrial automation systems, offering high-density input capabilities and robust performance.

Model: 8C-PDIL51

Part Number: 51454359-175

Applications:

• Industrial automation systems

• Factory and process control networks

• Building automation

• Transportation and infrastructure

Key Features:

• Input Channels: 32 digital inputs

• Input Voltage Range: 18–30 VDC

• Input Current: 6 mA typical at 24 VDC

• Isolation: 1500 VDC channel-to-backplane

• Response Time: Maximum of 5 ms

• Operating Temperature: -40°C to +70°C

• Power Consumption: Maximum of 2.5 W

• Dimensions: 118 mm (H) x 31 mm (W) x 140 mm (D)

• Weight: 0.25 kg

• Certifications: Compliant with CE, UL, and ATEX standards
