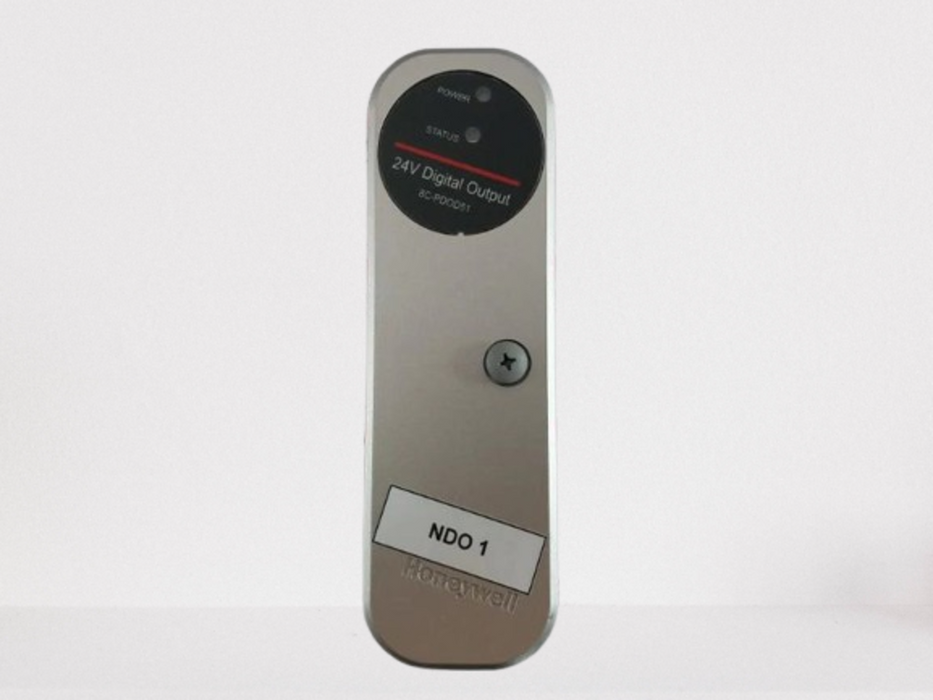

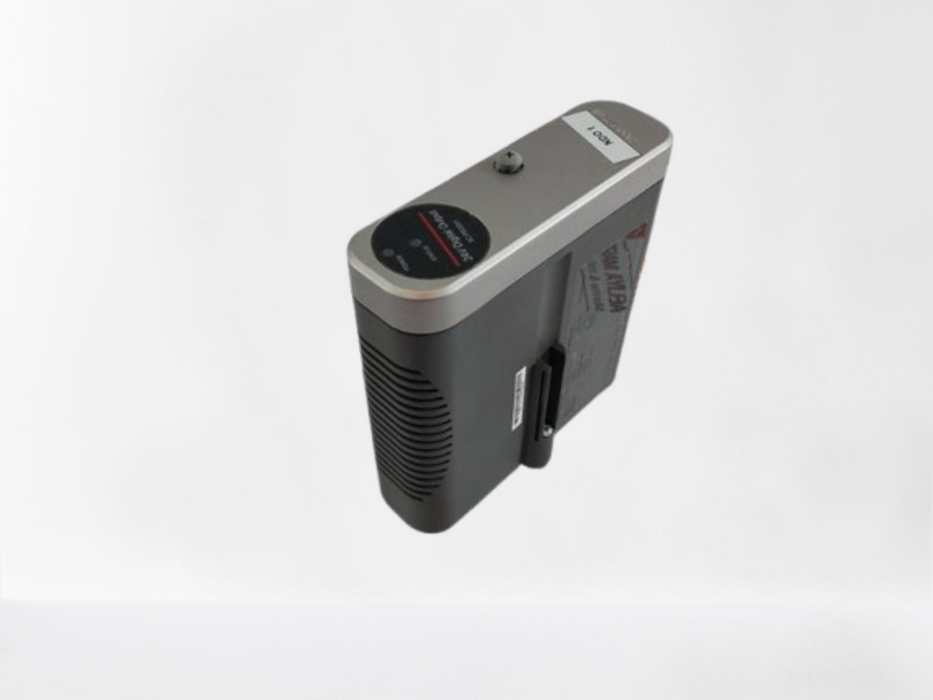

The Honeywell 8C-PDOD51 is a robust 32-channel digital output module designed for the Experion PKS Series 8 automation platform. Each channel supports a 24 V DC signal and features current sinking outputs with electronic short-circuit protection. Engineered for high reliability, it offers fast <1 ms response times, galvanic isolation from the backplane, and compact, conformal-coated packaging—making it ideal for harsh industrial environments.

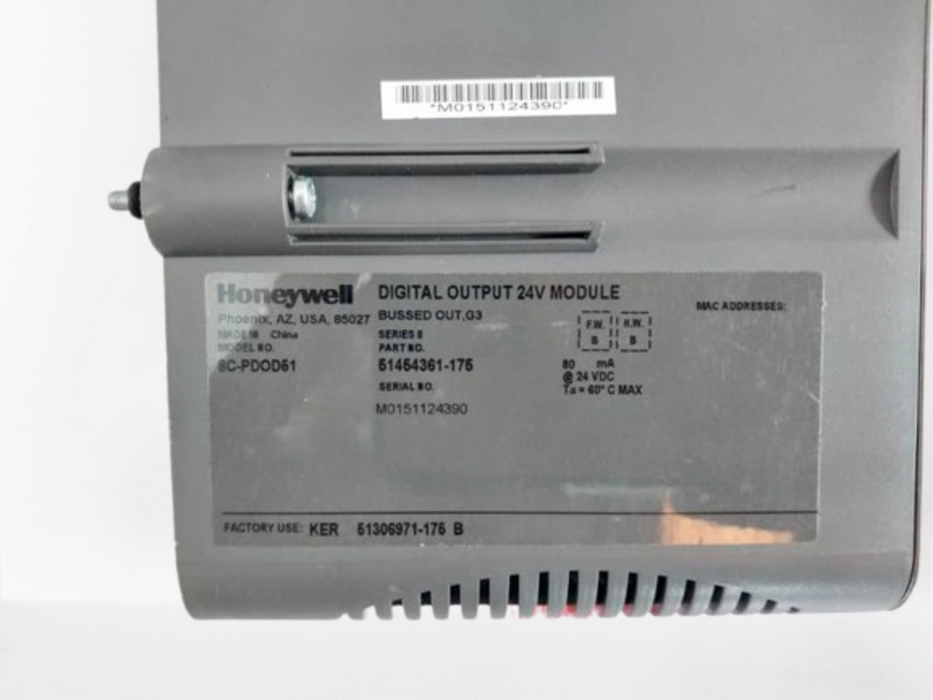

Model: 8C-PDOD51

Part Number: 51454361-175

Applications:

• Industrial automation systems

• Factory and process control networks

• Building automation

• Transportation and infrastructure

Key Features:

• Output Channels: 32 current-sinking digital outputs

• Output Voltage: 24V DC

• Short-Circuit Protection: Electronically protected outputs

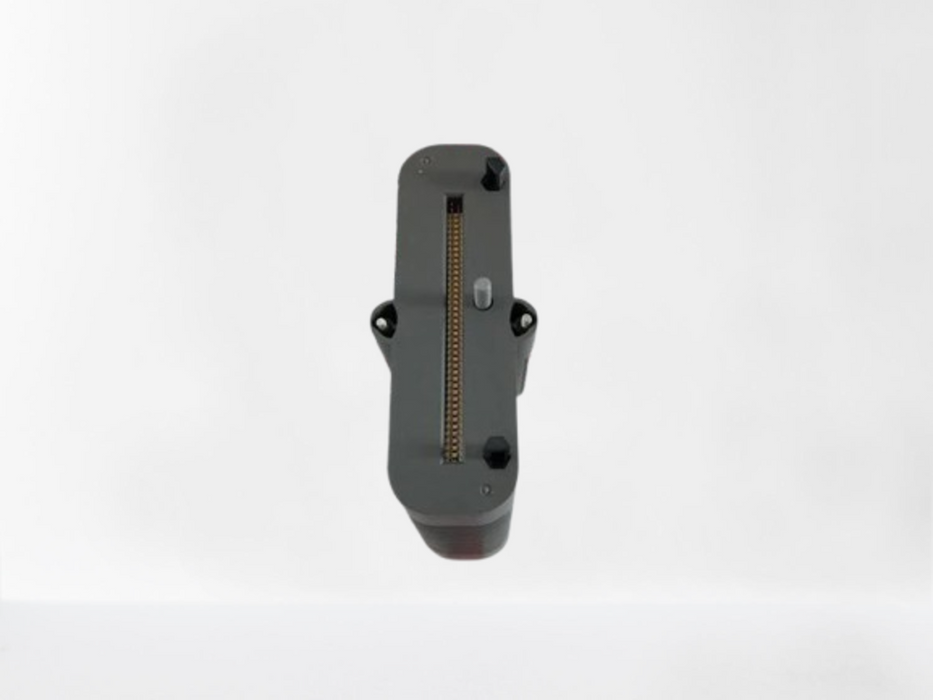

• Mounting: DIN-rail and wall mountable

• Enclosure: IP30-rated metal housing

• Operating Temperature: -10°C to +60°C

• Dimensions: 6.1 cm x 15.7 cm x 14.4 cm

• Weight: 0.3 kg

• Certifications: CE, FCC, UL
