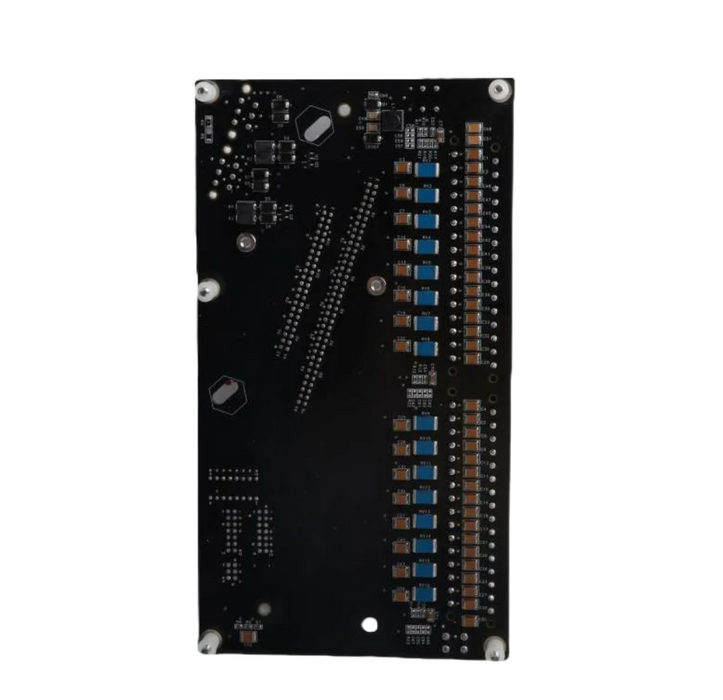

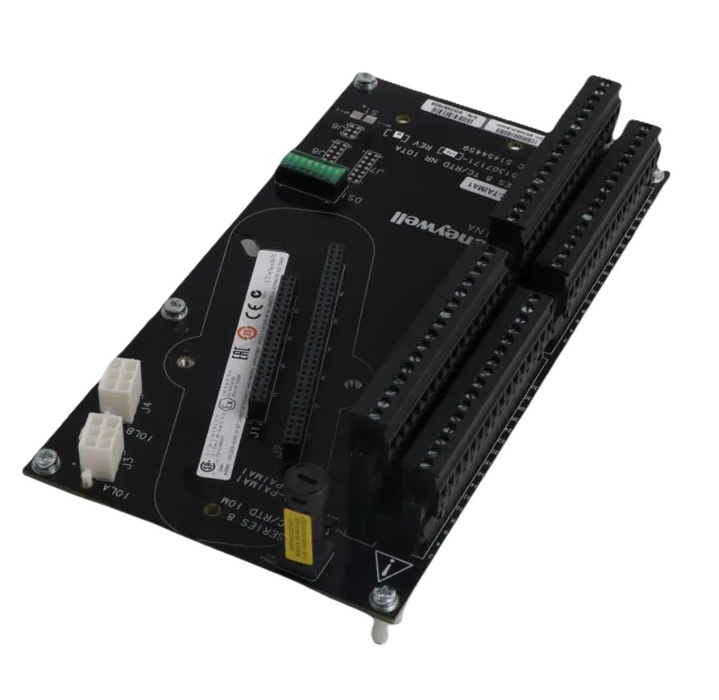

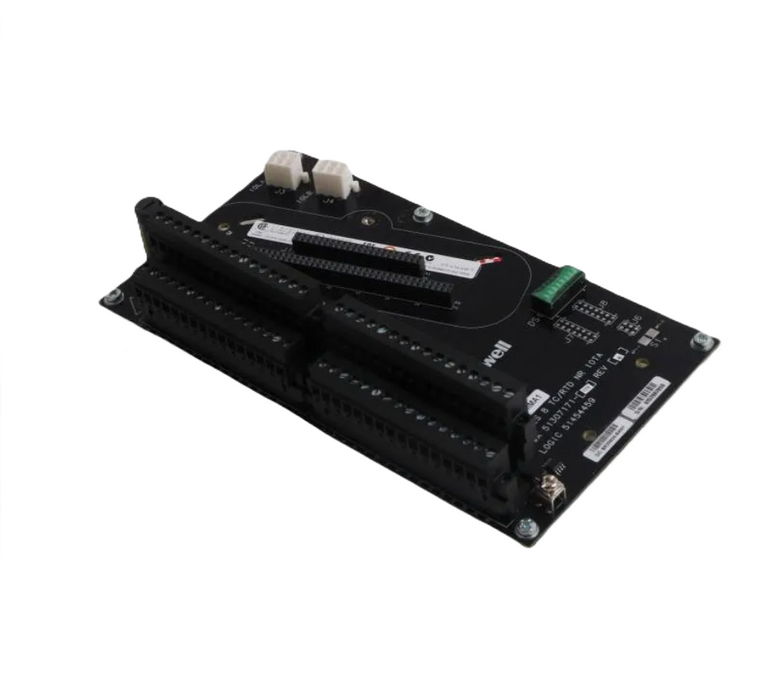

The Honeywell 8C-TAIMA1 is a robust low-level analog input I/O Termination Assembly (IOTA) for Honeywell’s Experion Series 8 (C300) control systems. Engineered to interface thermocouple or RTD field sensors, this 9-inch, conformal-coated module supports up to 16 fully isolated input channels with a stable 12-bit resolution. Built for harsh industrial environments, it offers accurate temperature data acquisition and easy field wiring—from high-temperature pipes to precise process loops.

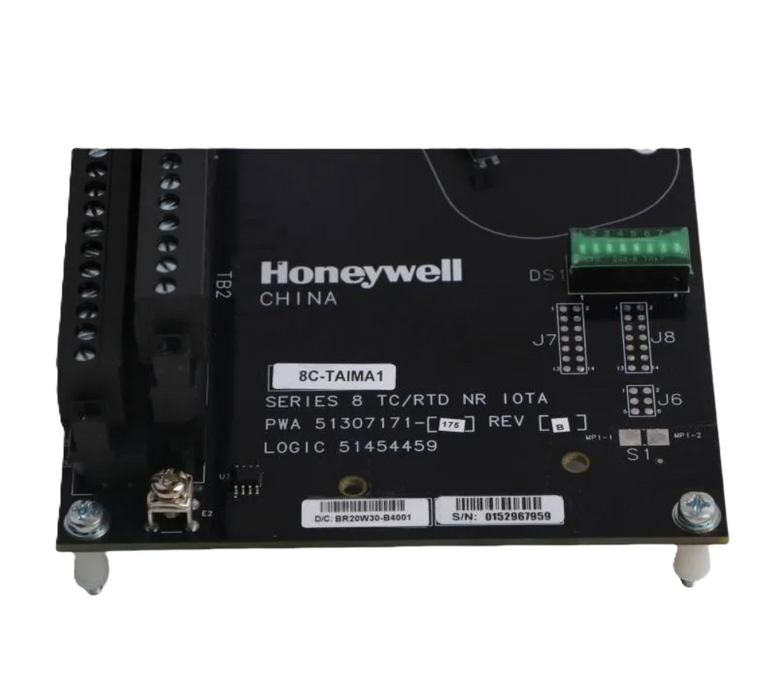

Model: 8C-TAIMA1

Part Number: 51307171-175

Applications:

• Industrial automation systems

• Process control systems

• Distributed Control Systems (DCS)

• Manufacturing Execution Systems (MES)

Key Features:

• Input Channels: 16 fully isolated channels

• Input Types: Thermocouple (TC) and Resistance Temperature Detector (RTD)

• Voltage Rating: 24 VDC

• Module Current Rating: 120 mA

• Input Scan Rate: 1 second fixed by IOM, up to 16 channels per second maximum

• Channel Bandwidth: 0 to 4.7 Hz (3 dB)

• Nominal Input Range (TC): ±100 millivolts

• Maximum Normal Mode Continuous Input (TC): ±10 volts

• Maximum Normal Mode Continuous Input (RTD): ±2 volts at 100 milliamps

• Gain Error: 0.050% full scale maximum

• Mounting: DIN rail or panel mount

• Dimensions: Approximately 5.1 cm x 26.7 cm x 17.8 cm

• Weight: Approximately 0.5 kg
