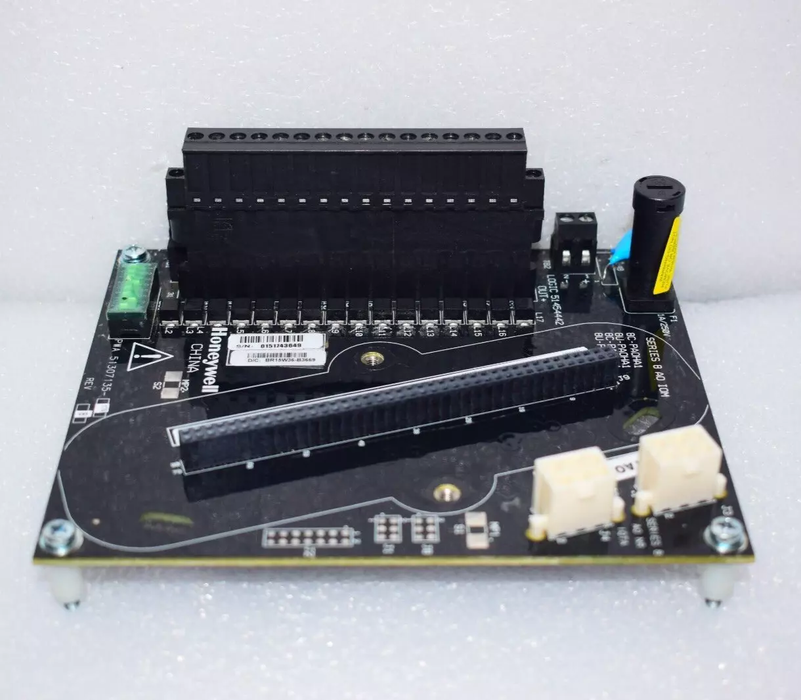

The Honeywell 8C-TAOXA1 (51307135-175) is a 16-channel, 4–20 mA analog output I/O Termination Assembly (IOTA) module designed for non-redundant applications in industrial automation systems, offering high accuracy, low ripple, and seamless integration with Honeywell's Series 8 I/O modules.

Model: 8C-TAOXA1

Part Number: 51307135-175

Applications:

• Industrial automation systems

• Process control systems

• Distributed Control Systems (DCS)

• Manufacturing Execution Systems (MES)

Key Features:

• Output Channels: 16 analog outputs

• Output Signal Range: 4–20 mA

• Output Ripple: < 100 mV peak-to-peak at power line frequency, across 250 Ω load

• Output Temperature Drift: 0.005% of Full Scale/°C

• Output Current Linearity: ± 0.05% of Full Scale nominal

• Load Resistance: 50–800 Ω

• Voltage Rating: 24 VDC

• Module Current Rating: 205 mA

• Resolution: ± 0.05% of Full Scale

• Calibrated Accuracy: ± 0.2% of Full Scale (25°C) including linearity

• Maximum Open Circuit Voltage: 22 V

• Response Time: Settles to within 1% of final value within 80 ms

• Module Removal and Insertion Under Power: Supported

• Operating Temperature Range: 0°C to 60°C

• Storage Temperature Range: -40°C to 85°C

• Dimensions: Approximately 3.4 cm x 14 cm x 14.5 cm

• Weight: Approximately 0.22 kg
