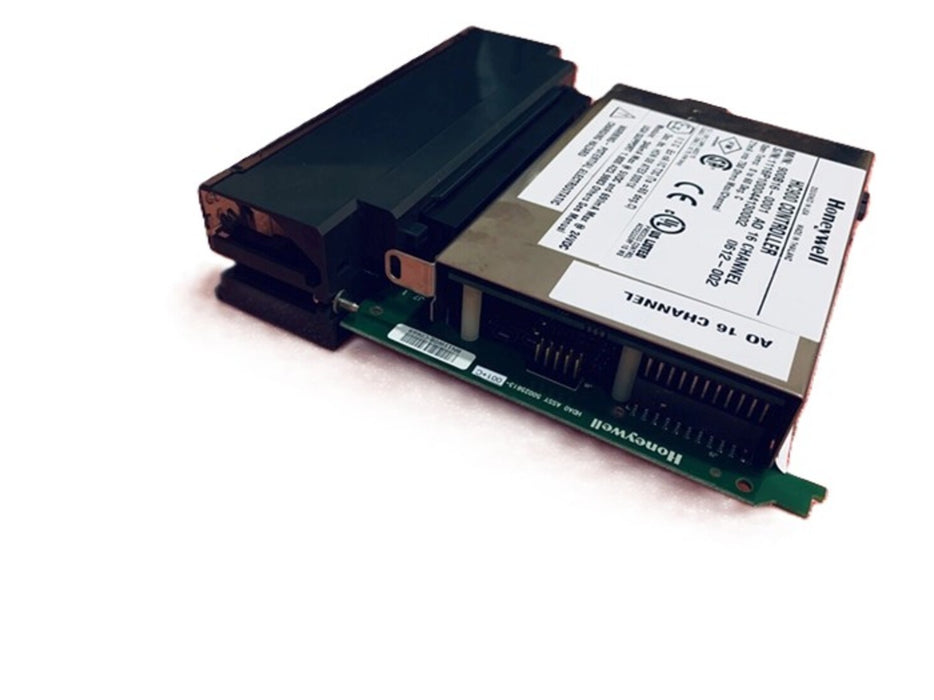

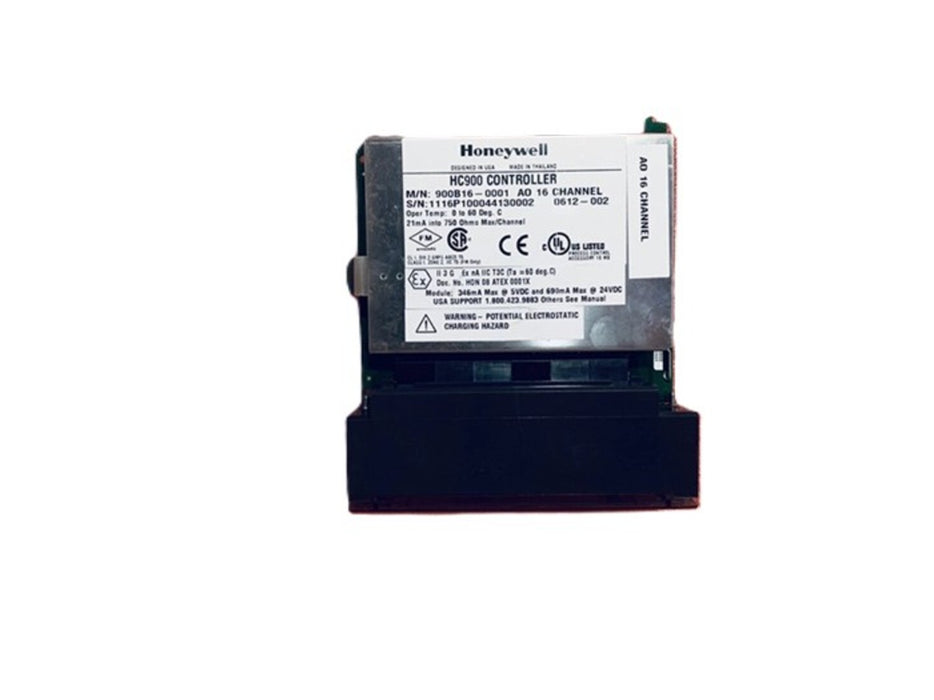

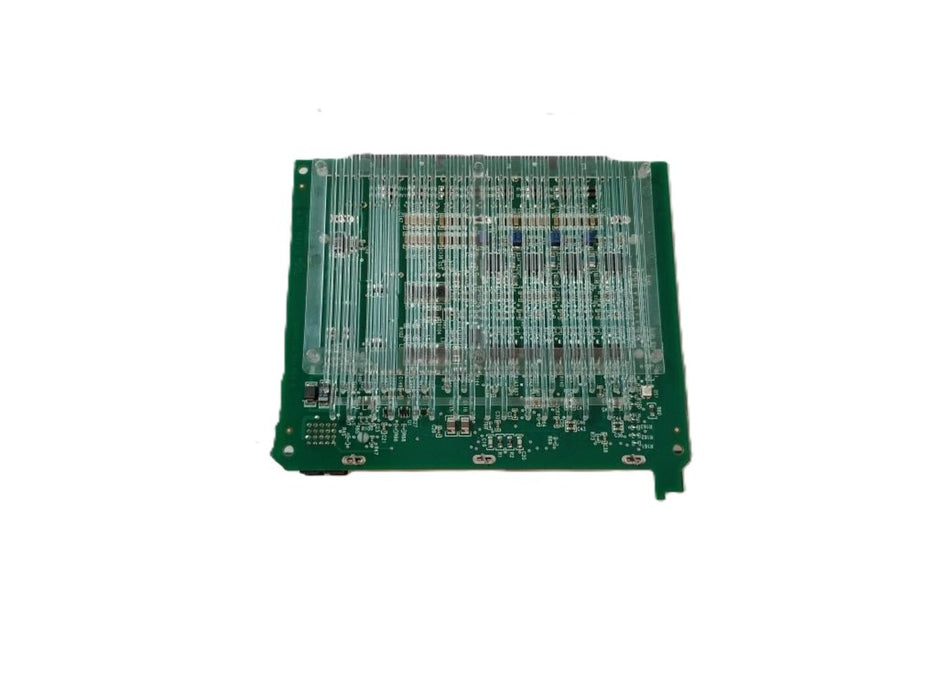

The Honeywell 900B16-0001 is a high-precision, 16-channel analog output module designed for the ControlEdge HC900 process and safety controllers. Delivering configurable current outputs (0 – 21 mA), each channel supports precise control, galvanic isolation, and fault-resilient performance. This rugged, hot-swappable module is equipped with diagnostic features, adjustable failsafe output, and certified for demanding industrial environments—including Class I Div. 2 applications.

Model Number: 900B16-0001

part Number: 50025613-001

Applications:

• Industrial automation systems

• Process control systems

• Distributed Control Systems (DCS)

• Manufacturing Execution Systems (MES)

Key Features:

• Output Channels: 16 analog outputs

• Output Signal Type: 4–20 mA current outputs

• Output Range: 0 to 21.0 mA

• Output Accuracy: ±0.25% of span

• Slew Rate: 10 mA/ms

• Output Isolation: 2500 Vrms

• Channel Grouping: Four isolated groups of four channels each

• Hot-Swappable: Yes

• Operating Temperature Range: 0°C to 60°C

• Power Requirements: 5 VDC at 346 mA, 24 VDC at 690 mA

• Mounting: DIN rail or panel mount

• Compatibility: Honeywell's ControlEdge HC900 controller

• Dimensions: Approximately 30.5 cm x 12 cm x 7 cm

• Weight: Approximately 5.44 kg

• Country of Origin: USA
