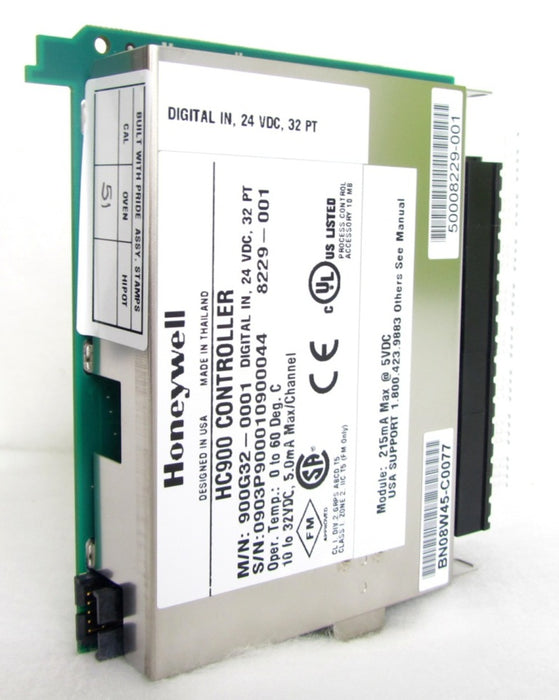

The Honeywell 900G32-0001 is a high-performance 32-channel DC digital input module compatible with the HC900 controller series from the ControlEdge line. It handles 10–32 V sinking input signals, segmented into two galvanically isolated groups of 16 channels each for optimal noise immunity. With a fast 5 ms response time, modular design, LED diagnostics, and Class I Division 2 approval, this module is engineered for reliability in industrial control and automation systems.

Model: 900G32-0001

Part Number: 50008229-001

Applications:

• Industrial automation systems

• Process control systems

• Distributed Control Systems (DCS)

• Manufacturing Execution Systems (MES)

Key Features:

• Input Channels: 32 digital inputs

• Input Voltage Range: 10 to 32 VDC

• Input Type: DC voltage (sinking)

• Input Impedance: 6.9 kΩ nominal

• Input Current: 1.7 mA @ 12 VDC; 3.5 mA @ 24 VDC

• Response Time: ≤5 ms (ON to OFF and OFF to ON)

• Galvanic Isolation: Two groups of 16 inputs each

• Power Supply Loading: 5 VDC at 215 mA max

• Operating Temperature Range: -40°C to +70°C

• Storage Temperature Range: -55°C to +85°C

• Shock Resistance: 30 g, 11 ms pulse

• Altitude: Up to 24,000 ft (7,315 m)

• Weight: Approximately 4.8 kg

• Dimensions: 270 mm x 201 mm x 150 mm
