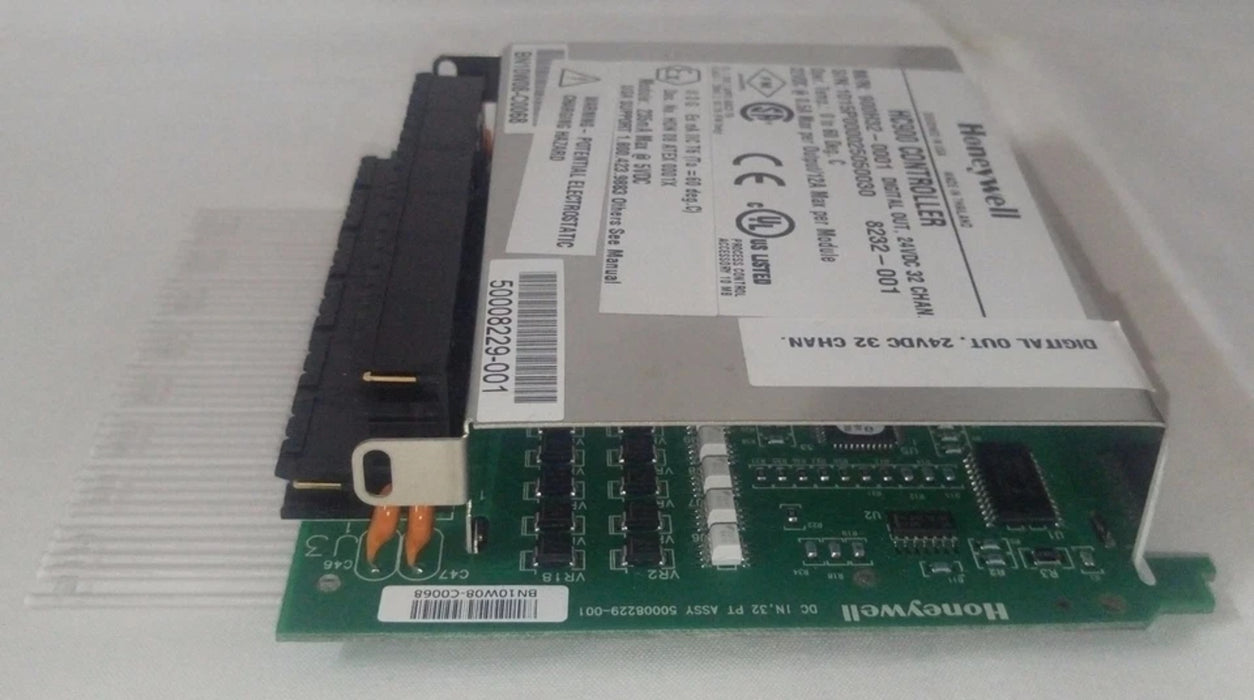

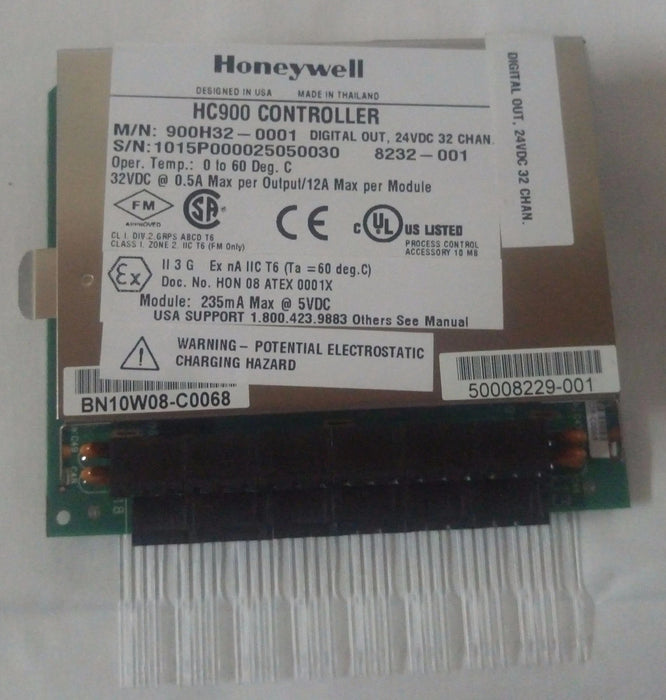

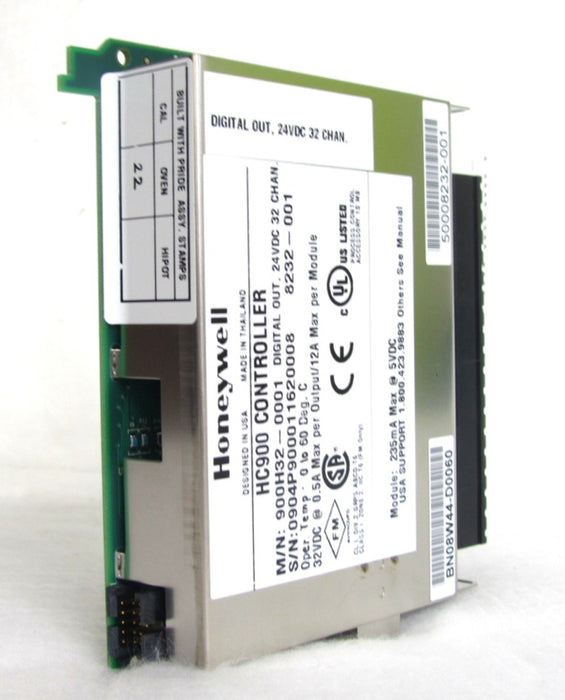

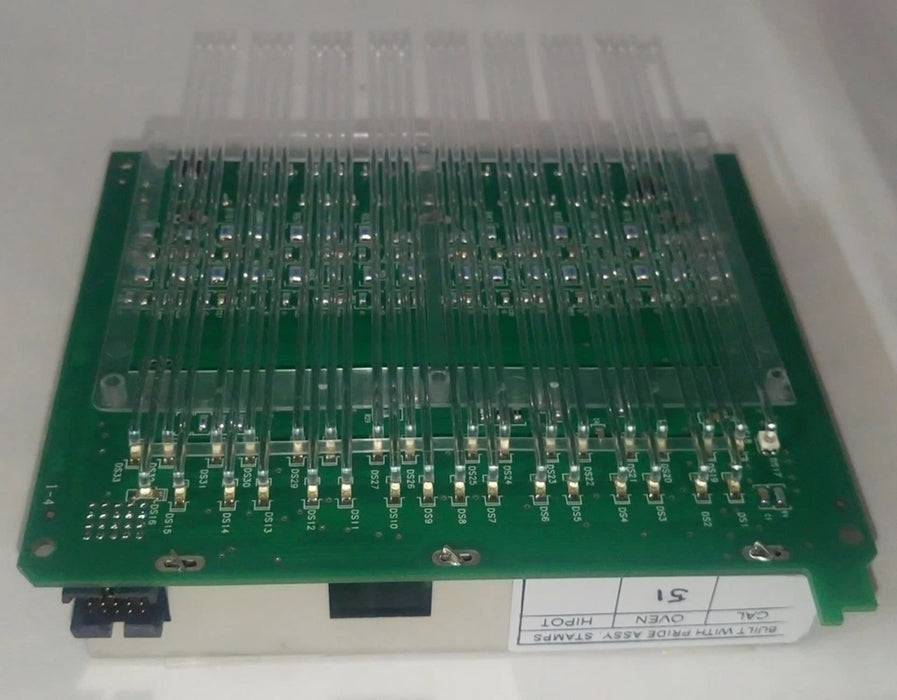

The Honeywell 900H32-0001 is a heavy-duty 32-channel digital output module engineered for the HC900 and ControlEdge HC900 controllers. Featuring high-side (current-sourcing) outputs, advanced galvanic isolation (two groups of 16 channels), and integrated overload protection, this module ensures reliable and safe digital control in demanding industrial environments. With an operating voltage from 10.5–32 VDC and fast 6 ms switching, it seamlessly integrates into scalable automation systems requiring compact yet powerful output expansion. OEM-made in the USA, it's the go-to for robust process automation setups.

Model: 900H32-0001

Part Number: 50008232-001

Applications:

• Industrial automation systems

• Process control systems

• Distributed Control Systems (DCS)

• Manufacturing Execution Systems (MES)

Key Features:

• Output Channels: 32 digital outputs

• Output Type: Current sourcing (high-side driver)

• Operating Voltage: 10.5 to 32 VDC

• Peak Voltage: 32 VDC

• Maximum Load Current: 0.5 A per point, 12 A per module

• Maximum Inrush Current: 2 A for 10 ms

• Response Time: 6 ms (OFF to ON and ON to OFF)

• Galvanic Isolation: 2 groups of 16 outputs each

• Overload Protection: Active current limiting in 4 groups of 8 channels

• Failsafe Configuration: Supports Hold Last State and Failsafe State

• Operating Temperature Range: -40°C to +70°C

• Storage Temperature Range: -40°C to +85°C

• Humidity: 5% to 95% non-condensing

• Dimensions: 137 mm H x 35.6 mm W (5.4” H x 1.4” W)

• Weight: Approximately 180g

• Country of Origin: USA
