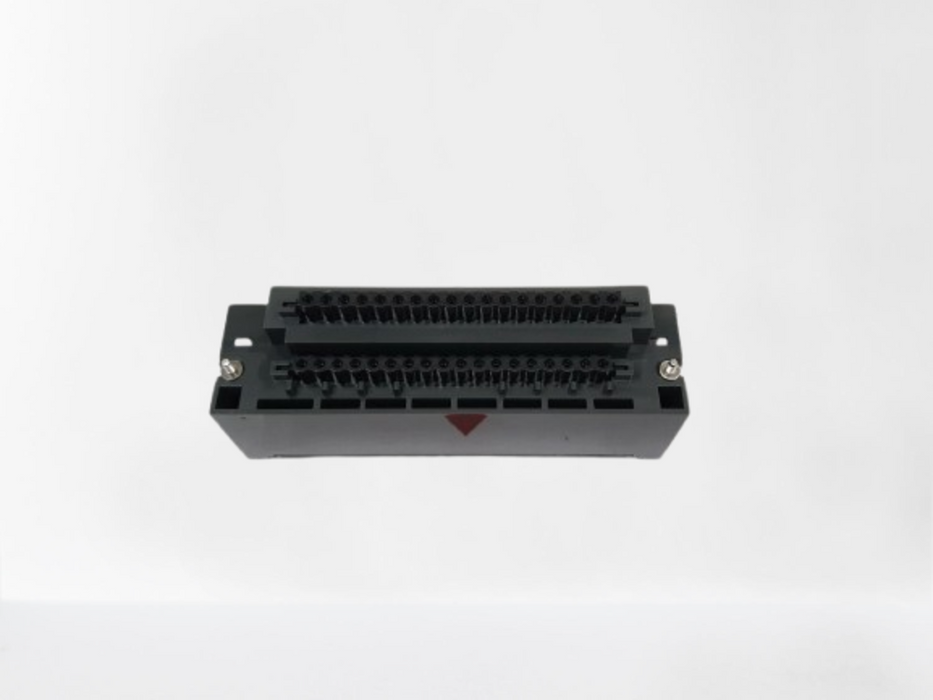

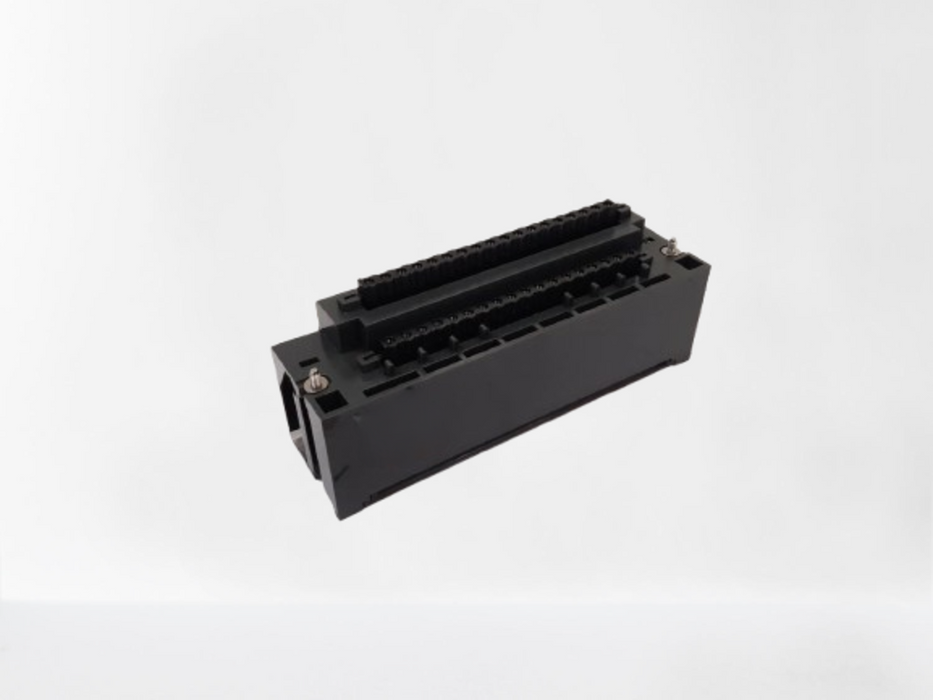

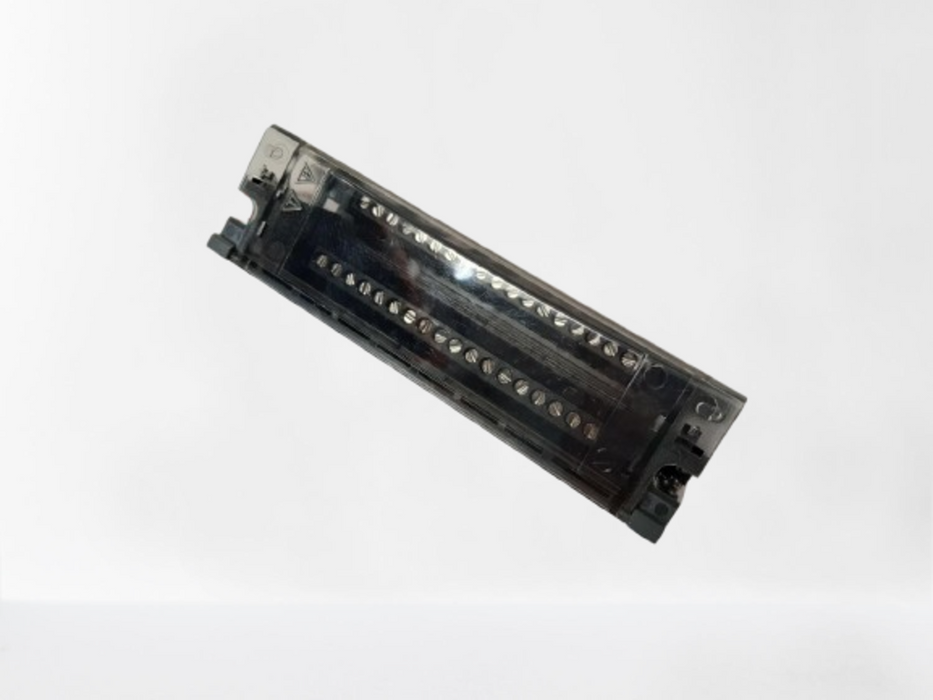

The Honeywell 900TCK‑0001 is a rugged, low‑voltage 36‑channel terminal block supporting top/bottom wiring and Euro mounting for HC900/ControlEdge I/O systems.

Model: 900TCK‑000

✅ Applications:

• Wiring interface for Honeywell HC900 & ControlEdge I/O modules

• Use in barrier or Euro‑style racks for industrial controllers

• Signal termination for analog/digital I/O wiring

• Remote termination panels (RTPs) and field cabinet I/O

🔍 Key Features:

• Terminals: 36‑position, Euro low‑voltage style

• Voltage Rating: Low‑voltage; suitable for control signals

• Current Rating: Up to 15A @ 300V rated

• Wire Range: AWG 14–26 stranded/solid; AWG 12 stranded

• Wiring Access: Top or bottom entry for flexible cabling

• Mounting: Secures with two screws; features keying to avoid mis‑insertion

• Terminal Cover: Locking swing‑out door for safety

• Jumpers: Supports shorting combs for common signal or power grouping

• Shield Grounding: Supports cable shield termination to grounding bars

• Weight: ~210 g / 0.46 lb Compatibility: HC900, ControlEdge 900, and C300/PKS I/O modules
