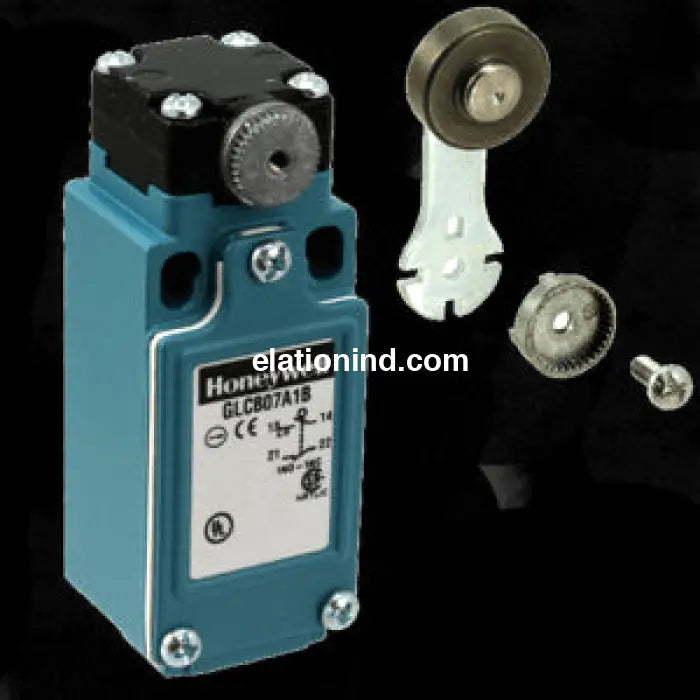

ThThe Honeywell GLCB07A1B‑3 is an industrial-grade side‑rotary SPDT limit switch from the renowned GLC Series. Featuring a heavy-duty roller lever actuator with a maximum force of 0.12 N·m, this switch enables precise actuation and reliable operation for mechanical systems, conveyors, and safety interlocks.

 Key Specifications

• Item / Part No.: GLCB07A1B‑3 (GLC Series) limit switch with side rotary roller

• Contact Form: SPDT (1NO + 1NC), gold-plated contacts rated to 100 mA at 50 VDC/AC

• Actuator Type: 360° side rotary steel roller lever; operating torque ≤ 0.12 N·m (≈1.1 in‑lb)

• Protection Rating: IP66 / NEMA 1, 4, 12, 13 enclosure rating—dust-tight and splash-resistant

• Temperature Range: –40 °C to +85 °C operating range for harsh environments

• Electrical Life: Up to 10 million cycles, mechanical robustness beyond switching life

• Mounting & Termination: DIN/EN 50047 standard chassis mount; screw terminal block; PG13.5 conduit entry available

• Special Features: Corrosion-resistant zinc alloy die-cast housing; ANSI/DIN compliance; UL/CSA/CE certified
