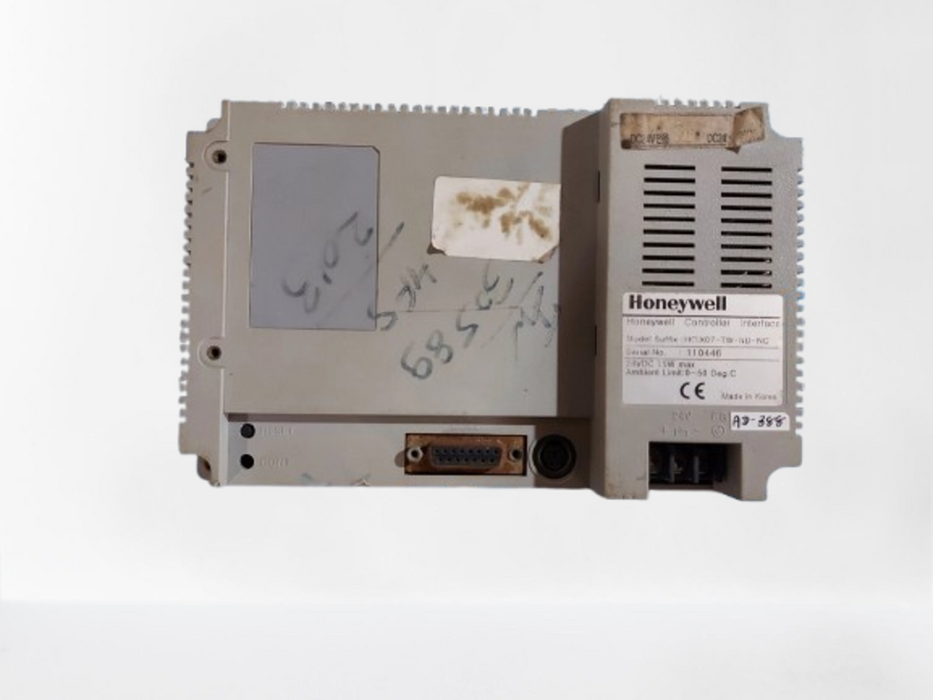

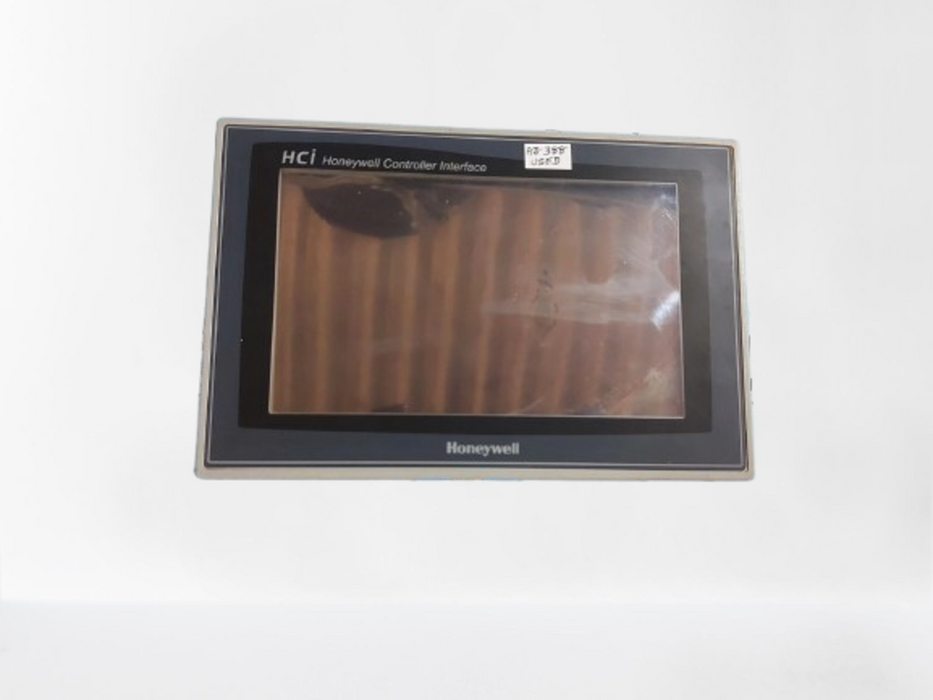

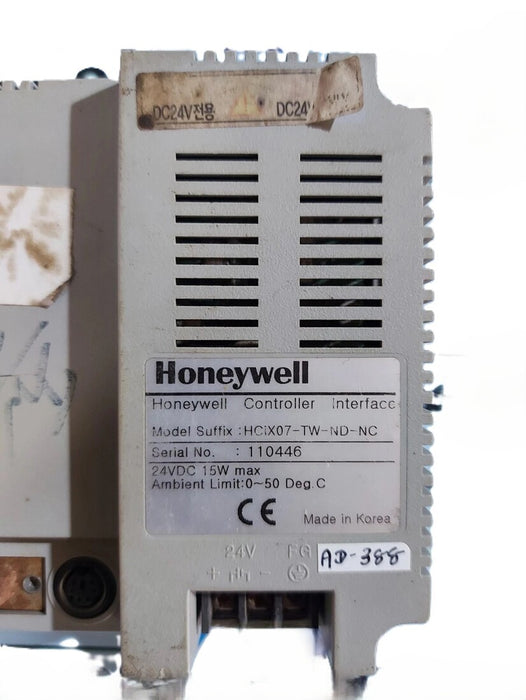

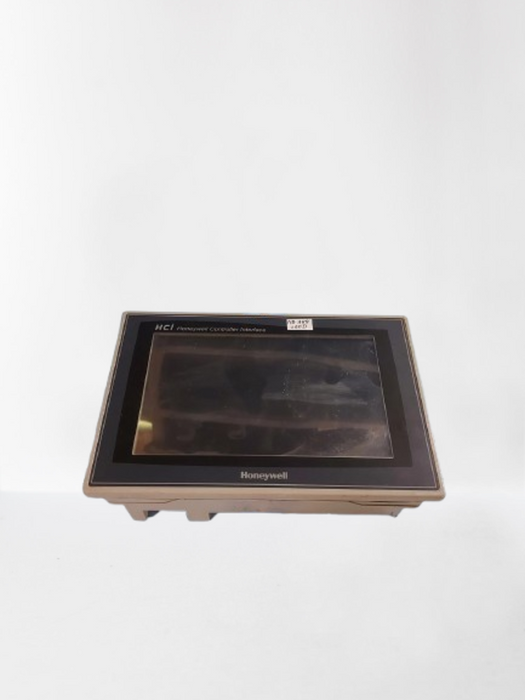

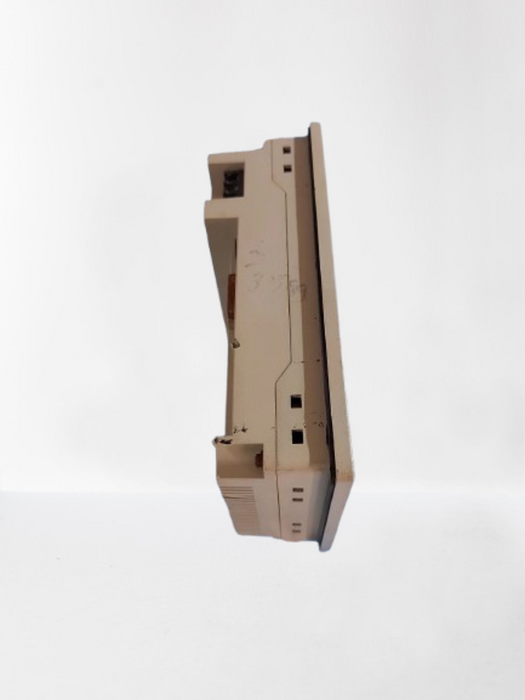

The Honeywell HCIX07-TW-ND-NC is a high-performance 7-inch wide color TFT touch panel HMI, designed for robust industrial control environments. Featuring IP65-rated front protection and a 32-bit RISC processor, this HMI delivers clear, high-resolution graphics and intuitive touchscreen operation. It supports multiple communication protocols—including RS-232C, RS-422/485, 10/100Base-T Ethernet—and offers flexible data input via USB, CF, and SD storage. Designed for durability and user efficiency, the HCIX07-TW-ND-NC is ideal for demanding production, monitoring, and control applications.

Model: HCIX07‑TW‑ND‑NC

✅ Applications:

• Human-machine interface for industrial and process automation

• Integration with Honeywell controllers (HCiX/HCiR/C300/PKS)

• Operator control and data logging panels in harsh environments

🔍 Key Features:

• Display: 7″ resistive touch color TFT LCD (65,535 colors)

• Power: 24 VDC, max 15 W consumption

• Front Protection: IP65-rated bezel (water/dust resistance)

• Communication: RS‑232C, RS‑422/485 serial ports, and Ethernet support

•  Mounting: Panel or operator station mountable

• Environmental Range: −10 °C to +60 °C operating; −20 °C to +70 °C storage

• Enclosure: Rugged metal housing for industrial use

• Data Options: CF/SD or USB memory support for logging and file transfer
