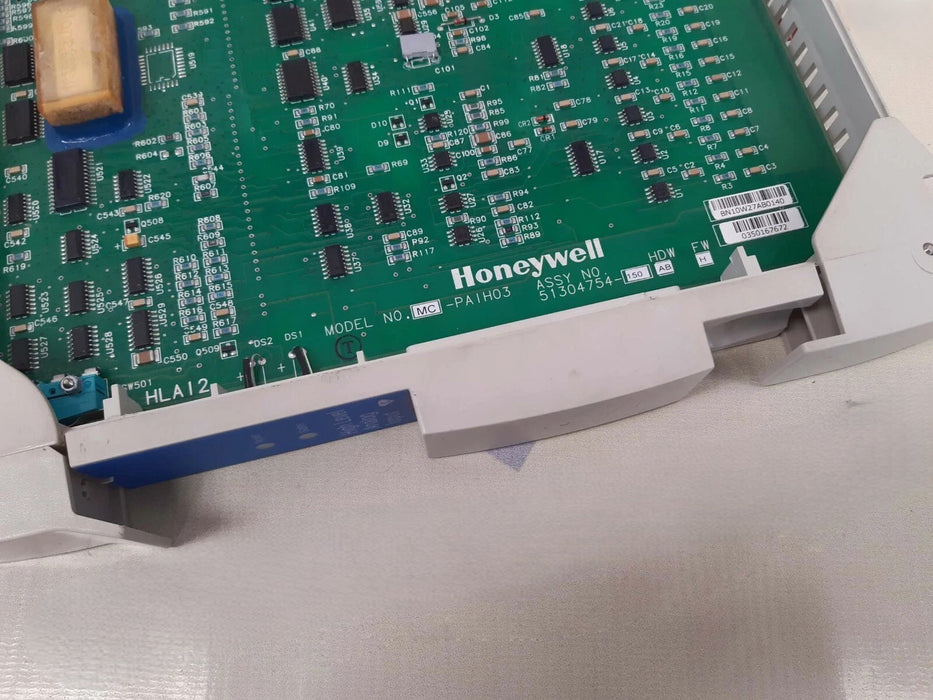

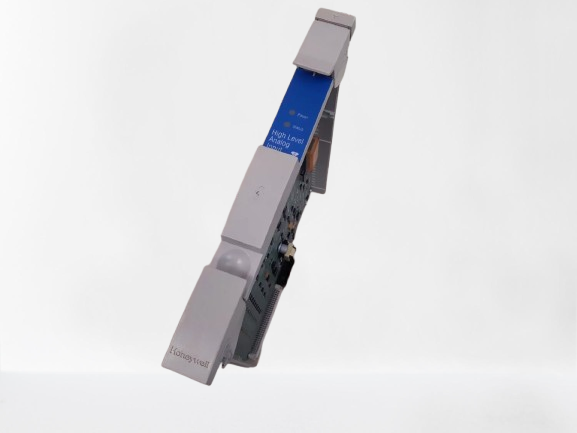

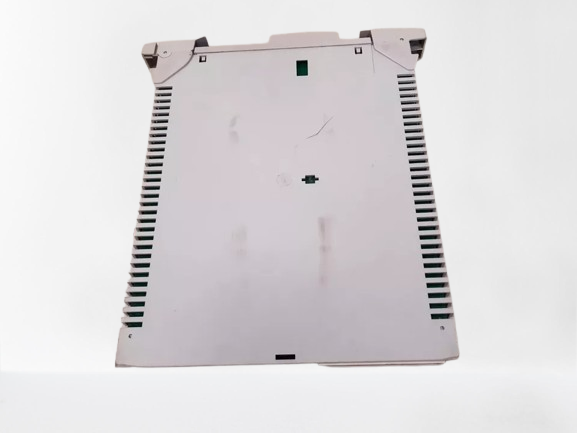

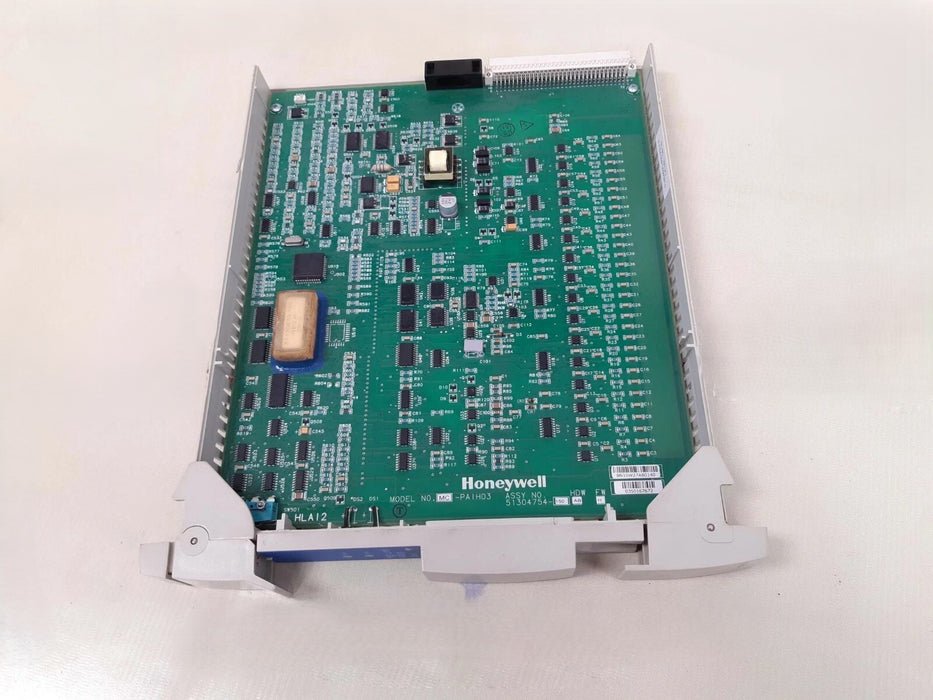

The Honeywell MC-PAIH03 is a precision analog input processor designed for industrial control systems, supporting 16 differential input channels for both voltage (e.g., 0–5 V) and current (4–20 mA) signals. Featuring 16-bit resolution, high common-mode rejection, and rugged industrial compliance, it delivers the precision needed for advanced automation applications.

Model: MC-PAIH03

Part Number: 51304754-150

Applications:

• Industrial automation systems

• Process control systems

• Distributed Control Systems (DCS)

• Manufacturing Execution Systems (MES)

Key Features:

• Input Channels: 16 differential analog inputs

• Input Types: Voltage and current (2-wire or self-powered transmitters)

• Input Ranges: 0–5 V, 1–5 V, 0.4–2 V, and 4–20 mA through 250-ohm resistor

• Common Mode Rejection Ratio: 70 dB (dc to 60 Hz)

• Common Mode Voltage: -6 to +5 V peak

• Input Scan Rate: 4 samples per second per channel

• Accuracy: ±0.075% full-scale at 23.5°C ±2°C; ±0.15% full-scale from 0°C to 50°C

• Operating Temperature Range: 0°C to 60°C

• Storage Temperature Range: -40°C to 85°C

• Dimensions: 3 cm x 31.3 cm x 27.8 cm

• Weight: Approximately 0.58 kg

• Country of Origin: USA
