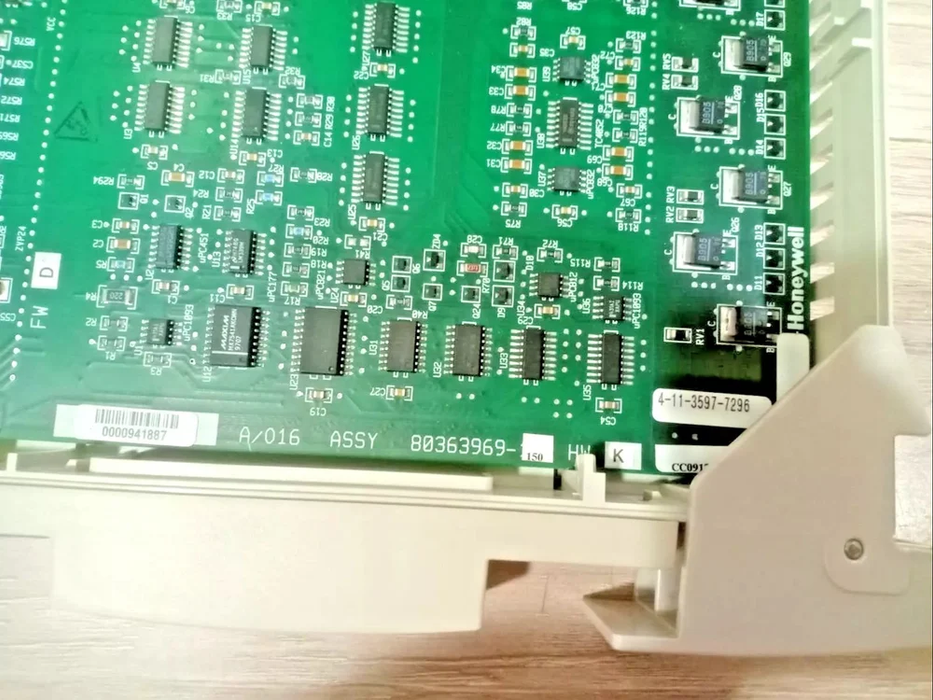

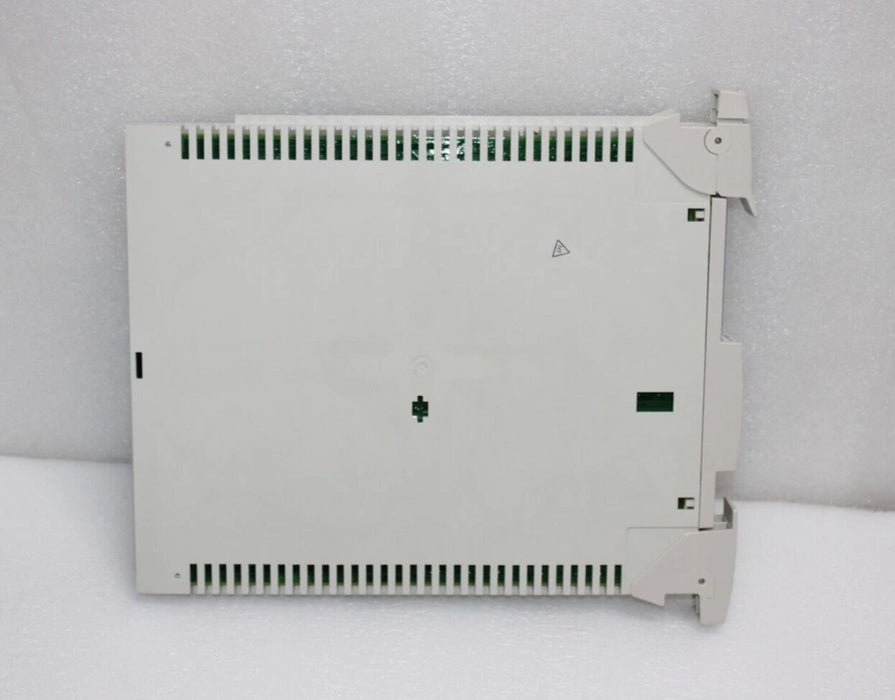

The Honeywell MC-PAOY22 is a high-performance Analog Output (AO) Module tailor-made for Experion PKS C300 process controllers. Featuring 16 isolated 4-20 mA outputs with 12-bit resolution and high accuracy, it delivers precise control for valves, actuators, and field instruments. Engineered for demanding industrial environments—like oil & gas, power generation, and water treatment—it’s compact, rugged, and perfectly compatible with Honeywell’s automation systems.The Honeywell MC-PAOY22 (80363969-150) is a 16-channel analog output module designed for integration with Honeywell's TDC 3000 control systems. It offers reliable performance, high accuracy, and is suitable for various industrial automation applications.

Model: MC-PAOY22

Part Number: 80363969-150

Applications:

• Industrial automation systems

• Process control systems

• Distributed Control Systems (DCS)

• Manufacturing Execution Systems (MES)

Key Features:

• Output Channels: 16 analog outputs

• Output Range: 4–20 mA

• Accuracy: ±0.2%

• Linearity: ±0.02%

• Output Impedance: 200 Ω

• Response Time: 0.5 seconds

• Isolation Voltage: 2500 V RMS between channels and power supply

• Power Supply: 24 VDC

• Power Consumption: 10 W

• Operating Temperature Range: -40°C to +70°C

• Storage Temperature Range: -55°C to +85°C

• Humidity: 0% to 95% non-condensing

• Vibration: 0.05 g RMS, 5 Hz to 500 Hz

• Shock: 5 g, 20 ms

• Dimensions: 8.8 cm x 3.2 cm x 7.8 cm

• Weight: Approximately 0.58 kg

• Country of Origin: USA
