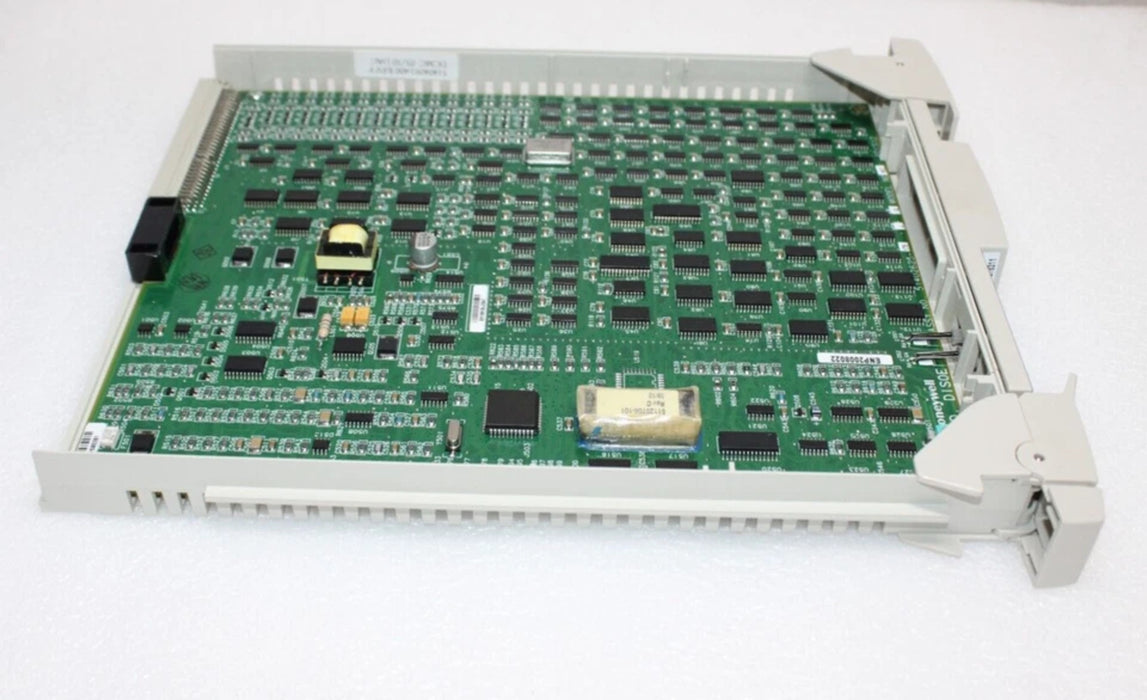

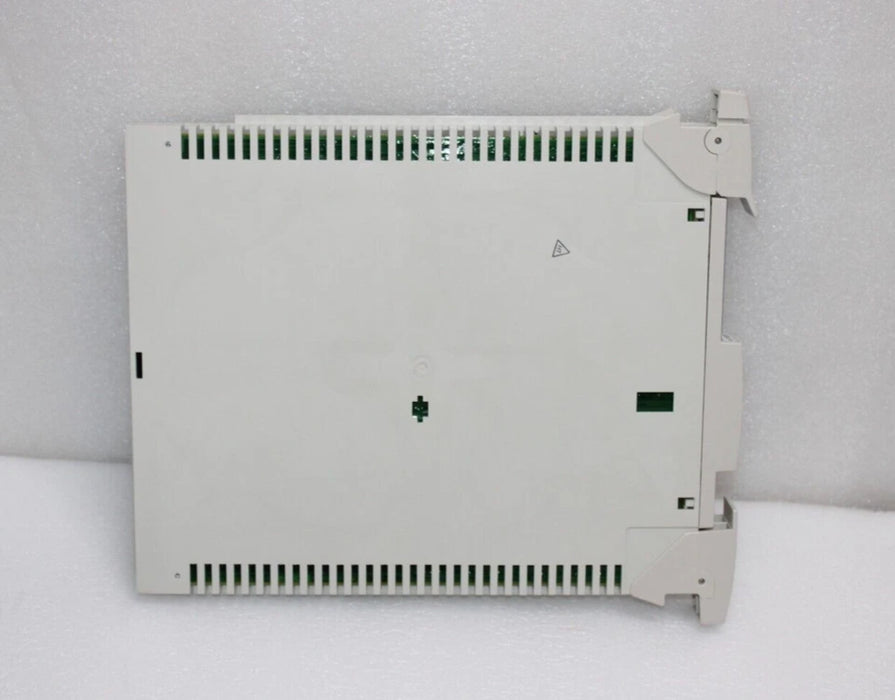

The Honeywell MC-PDIS12 is an advanced Digital Input Processor Module engineered for precise Sequence-of-Events (SOE) logging across 32 digital channels. Built with a conformal coating for superior durability, this module is CE-compliant and ideal for industrial automation where accurate time-stamped data capture is critical. Perfect for recording fault or event histories in PLC and DCS environments, it ensures reliable tracking and diagnostics in demanding conditions.

Model: MC-PDIS12

Part Number: 51402625-175

Applications:

• Industrial automation systems

• Process control systems

• Distributed Control Systems (DCS)

• Manufacturing Execution Systems (MES)

Key Features:

• Input Channels: 32 digital inputs

• Input Voltage Ranges: Depending on the Field Termination Assembly (FTA) used:

  • With 24 VDC FTA: 20–30 VDC

  • With 120 VAC or 125 VDC FTA: 90–132 VAC RMS

  • With 240 VAC FTA: 180–264 VAC RMS

• Conformal Coating: Yes, providing protection against humidity and chemical gases

• Sequence of Events (SOE) Recording: Captures event order and timestamps for critical data analysis

• Redundancy Support: Yes

• Mounting: DIN rail or panel mount

• Compatibility: Honeywell's TDC 3000 control systems

• Operating Temperature Range: 0°C to 60°C

• Storage Temperature Range: -40°C to 85°C

• Dimensions: 2.8 cm x 31.8 cm x 28 cm

• Weight: Approximately 0.64 kg

• Country of Origin: USA
