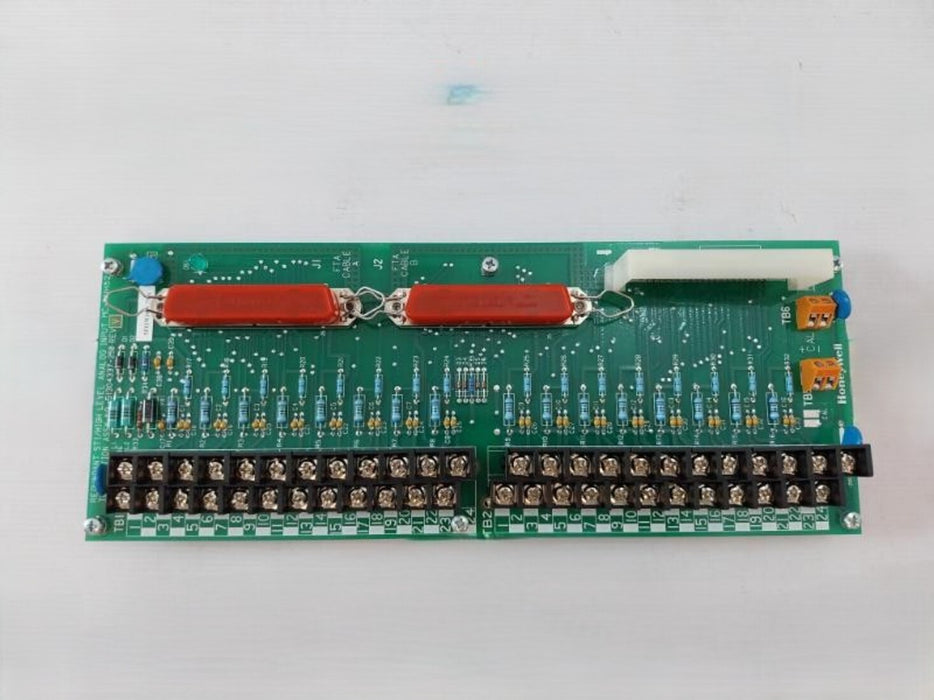

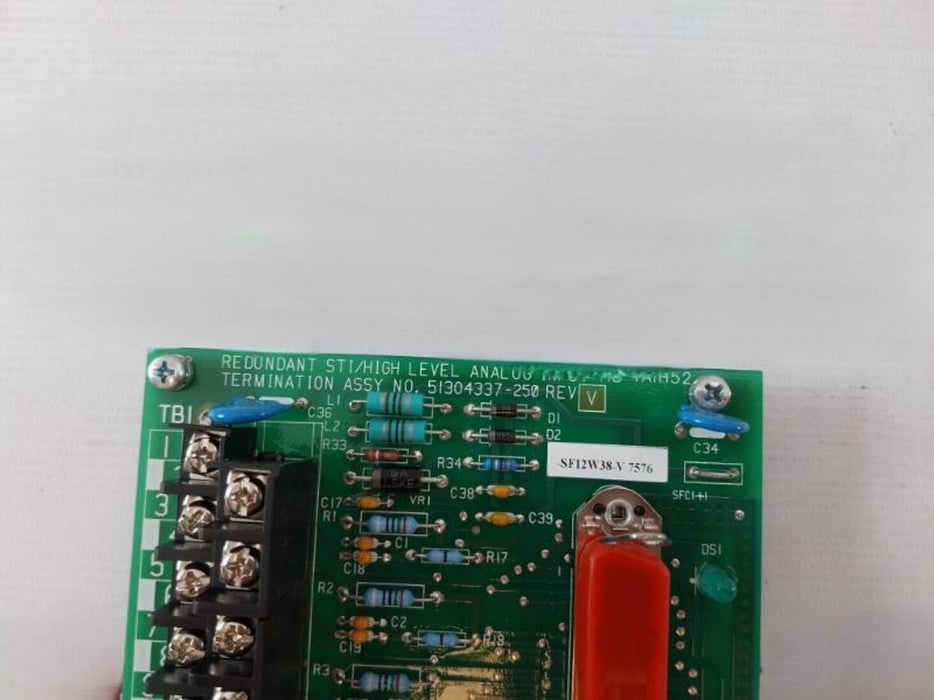

The Honeywell MC-TAIH52 is a rugged redundant analog input module (High-Level STI/FTA) designed for industrial control systems. It supports 16 analog inputs via screw terminals, offers redundancy, and comes in a conformal-coated housing for heightened durability. Built for reliability in demanding environments, this module is a high-performance upgrade for analog I/O configurations.

Model: MC-TAIH52

Part Number: 51304337-250

Applications:

• Industrial automation systems

• Process control systems

• Distributed Control Systems (DCS)

• Manufacturing Execution Systems (MES)

Key Features:

• Input Channels: 16 analog inputs

• Input Types: Voltage (0–10 V) and current (4–20 mA)

• Resolution: 16-bit

• Accuracy: ±0.35%

• Input Ripple: 100 mV peak-to-peak

• Input Settling Time: 4 ms

• Input Characterization: 5 segments

• Default Action on Failure: Hold or unpowered

• Redundancy: Yes

• Mounting: DIN rail or panel mount

• Compatibility: Honeywell's TDC 3000 control systems

• Operating Temperature Range: -40°C to +85°C

• Dimensions: 13.7 cm x 5.1 cm x 15.1 cm

• Weight: Approximately 0.5 kg

• Country of Origin: USA
